- Type:
- Ophthalmic Optical Equipments
- Brand Name:
- WINCOM
- Model Number:
- SLM-66A
- Place of Origin:
- Hunan, China
- Instrument classification:
- Class II
- Product name:
- Medical Ophthalmic Microscope Slit Lamp Microscope
- Model:
- SLM-66A
- Microscope Type:
- Galilean stereoscopic microscope
- Magnification selection:
- 5 steps by drum rotation
- Eyepiece:
- 12.5x
- PD adjustment:
- 50mm ~ 82mm
- Diopter Adjustmen:
- +7D ~ -7D
- Base:
- Side Shift:110mmDepth Shift :90mm Height Shift :30mm
- Chin rest:
- Height Shift:80mm Fixation Target:red LED
- Warranty:
- one year
- Supply Ability:
- 6000 Piece/Pieces per Month
- Packaging Details
- Medical Ophthalmic Microscope Slit Lamp Microscope
- Port
- Shanghai/Shenzhen/Guangzhou
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 10 To be negotiated

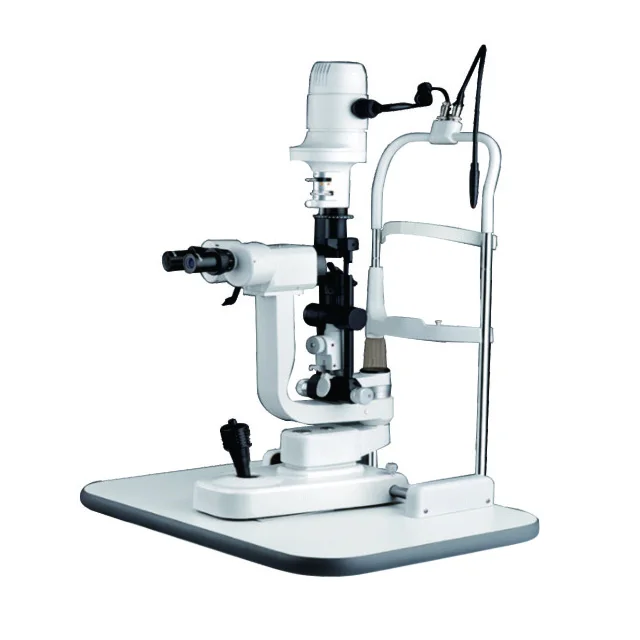

Medical Ophthalmic Microscope Slit Lamp Microscope





Medical Ophthalmic Microscope Slit Lamp Microscope | ||
Art.No. | SLM-6A | |
Microscope | Microscope Type | Galilean stereoscopic microscope |
Magnification selection | 5 steps by drum rotation | |
Eyepiece | 12.5x | |
Magnification Ratio | 6×(φ33mm),10×(φ22.5),16×(φ14.1mm),25×(φ8.8mm),40×(φ5.5mm)/BL-6AT( 10X, 16X ,25X ) | |
(Field of view ) | ||
PD adjustment | 50mm ~ 82mm | |
Diopter Adjustment | +7D ~ -7D | |
Base | Side Shift:110mmDepth Shift :90mm Height Shift :30mm | |
Chin rest | Height Shift:80mm Fixation Target:red LED | |
Illumination System | Slit width | 0 ~ 14mm continuous (at 14mm,slit becomes a circle) |
Slit height | 1 ~ 14mm continuous | |
Slit angle | 0 ~ 1800 continuous Ф14mm ,Ф10mm, Ф5mm , Ф3mm , | |
Light spot diameter | Ф14mm ,Ф10mm, Ф5mm , Ф3mm ,Ф2mm ,Ф1mm ,Ф0.2mm ,Ф1mm~Ф1-14mm continuous | |
Filter | Heat absorption ,Grey ,Red-Free ,Cobalt Blue | |
Illumination bulb | 12V 50W halogen lamp | |
Warranty | one year | |
Features | Medical Ophthalmic Microscope Slit Lamp Microscope |
