Product Description
3/5 Persons MULTI-VIEWING MICROSCOPE

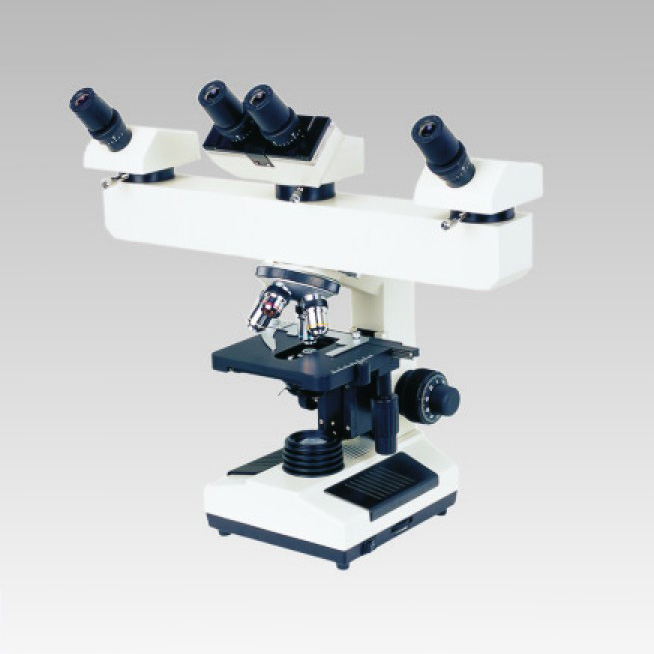

| MULTI-VIEWING MICROSCOPE XSZ-N304 | |||
| Viewing Head | Sliding binocular head,inclined at 45° | 1PC | |
| Monocular head,inclined at 45° | 2PCS | ||
| Eyepiece | WF10X wide field eyepiece | 4PCS | |
| Nosepiece | Quadruple nosepiece | ||
| Objective | Achromatic objective 4X,10X,40X,100X | ||
| Condenser | Abbe condenser NA1.25 | ||
| Focusing System | Coaxial coarse and fine adjustment,fine division 0.002mm, coarse stroke 37.7mm per rotation,fine stroke 0.2mm per rotation,moving range 28mm | ||
| Stage | Duble layers mechanical stage 140x140mm/75x50mm | ||
| Illumination | S-LED illumination,brightness adjustable | ||

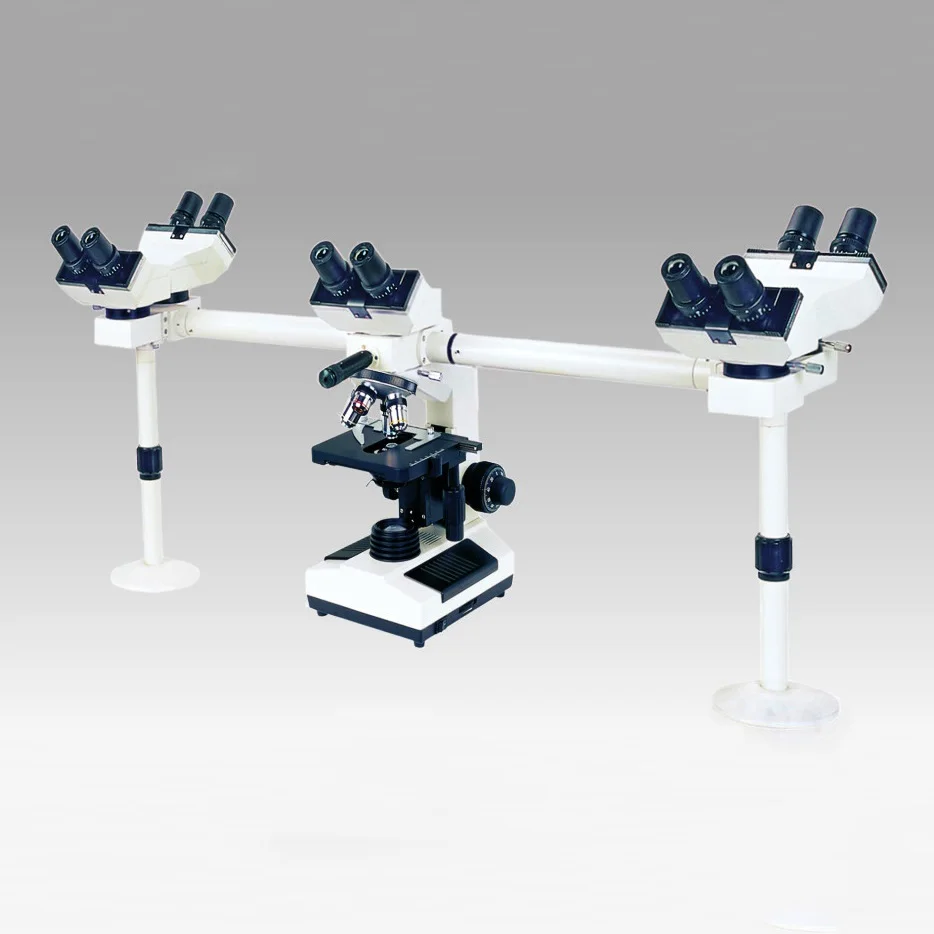

| MULTI-VIEWING MICROSCOPE XSZ-N510 | |||||
| Viewing head | Sliding binocular head,inclined at 45° | 5PCS | |||
| Eyepiece | WF10X wide field eyepiece | 10PCS | |||
| Nosepiece | Quadruple nosepiece | ||||
| Objective | Achromatic objective 4X,10X,40X 100X | ||||
| Condenser | Abbe condenser NA1.25 | ||||
| Focusing System | Coaxial coarse and fine adjustment,fine division 0.002mm, coarse stroke 37.7mm per rotation,fine stroke 0.2mm per rotation,moving range 28mm | ||||
| Stage | Duble layers mechanical stage 140X140mm/75X50mm | ||||
| Illumination | S-LED illumination,brightness adjustable | ||||
| Pointer | Green LED pointer,brightness adjustable | ||||
Packaging & Shipping
Our Services
One year warrenty
Direct Sales
OEM
Training
Installation
Company Information
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply of Laboratoy Equipments and Medical Equipments.We have our own factory to provide est quality products.
We have 20 years exporting experience ,and established business relationship with 50 countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
In our business,we always insist on the principle of "3B"--Best service, Best quality, Best reputation.
