Wincom Company Ltd.

*Parameter:
Detection depth: ≥ 300mm. Lateral resolution: ≤ 1mm (depth ≤ 80mm)
≤ 2mm (80 <depth ≤ 130mm).Vertical resolution: ≤1mm(depth≤80mm)
≤2mm(80<depth≤130mm) Blind zone: ≤ 5 mm.
Precision geometric position: Horizontal ≤ 10%. Longitudinal ≤ 10%.
Signal channels: 64 channels Display: 17 inch LCD monitor.
PAL output interface Grey Scale: 256 Power range: AC220V ± 10% 3A.
Host Power: DC12.8V 11.5A Input power: ≤ 300VA.
Continuous working time: ≥ 8h.
*Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
*Displaying mode
B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C,
duplex, PW, CFM, CPA
*Signal processing
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic
real-time receiving focusing, RDA, DRA, spectral processing, CFM processing
*Image processing
THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256
grey scale, scanning angle/width control, composit processing of tissue and blood flow image
*General measurement
B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram,
cross-section diagram
M mode: cardiac rate, time, distance, speed.

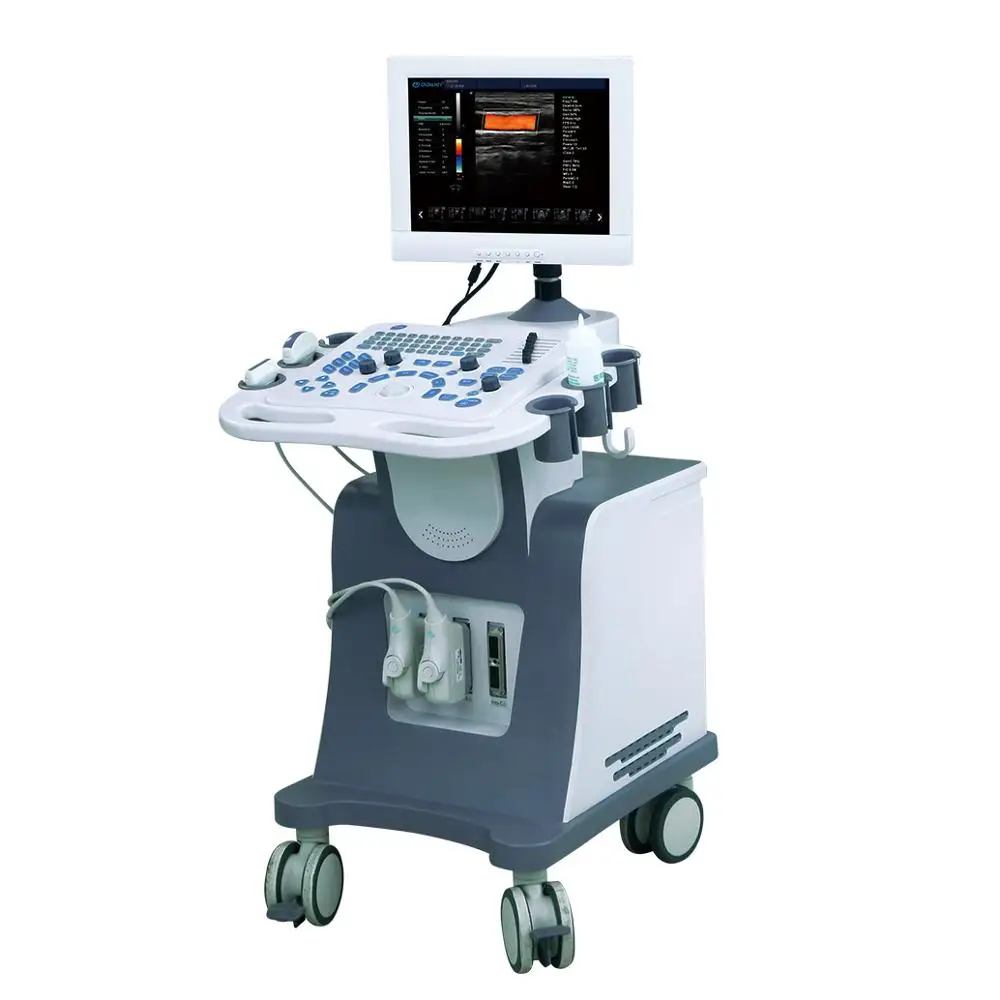

*Standard configuration
Main unit, 3.5MHz Multi-frequency convex probe(2.0, 3.0, 3.5, 4.0,5.5MHz),
17" LCD monitor, USB port DICOM3.0
*Optional configuration
High frequency linear probe:128 elements R40 wideband Multi-frequency 6.0,6.5,7.5,10,12MHz
Trans-vaginal probe:128 elements R10 wideband Multi-frequency 5.0,6.0,6.5,7.5,9.0MHZ
Phased array probe :64 elements R20 wideband Multi-frequency 2.0,2.1,3.5,4.0,5.0 MHz
*Printer: Video/Thermal printer, Laser printer

Warranty time : 1 year

Service: OEM / ODM

Oversea Technical Guidance

Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply

of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality

products.We have 20 years exporting experience ,and established business relationship with 50

countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.

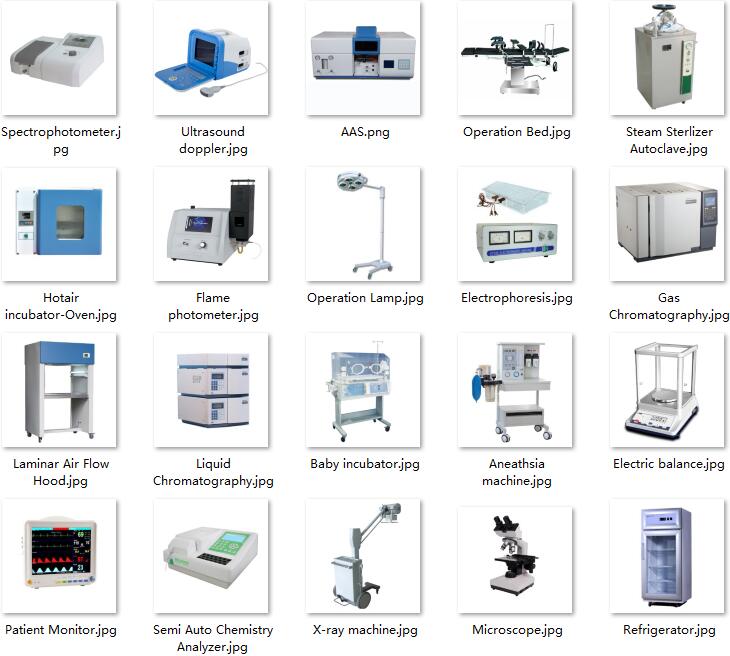

Our products including three ranges, please kindly find the details as below:

1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,

(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.

2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia

Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.

3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,

Trolley, Arm Crutches, Stretcher and so on.

We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,Amercia, like  Medical Fair Asia ,Medical West Africa , FIME and so on.
