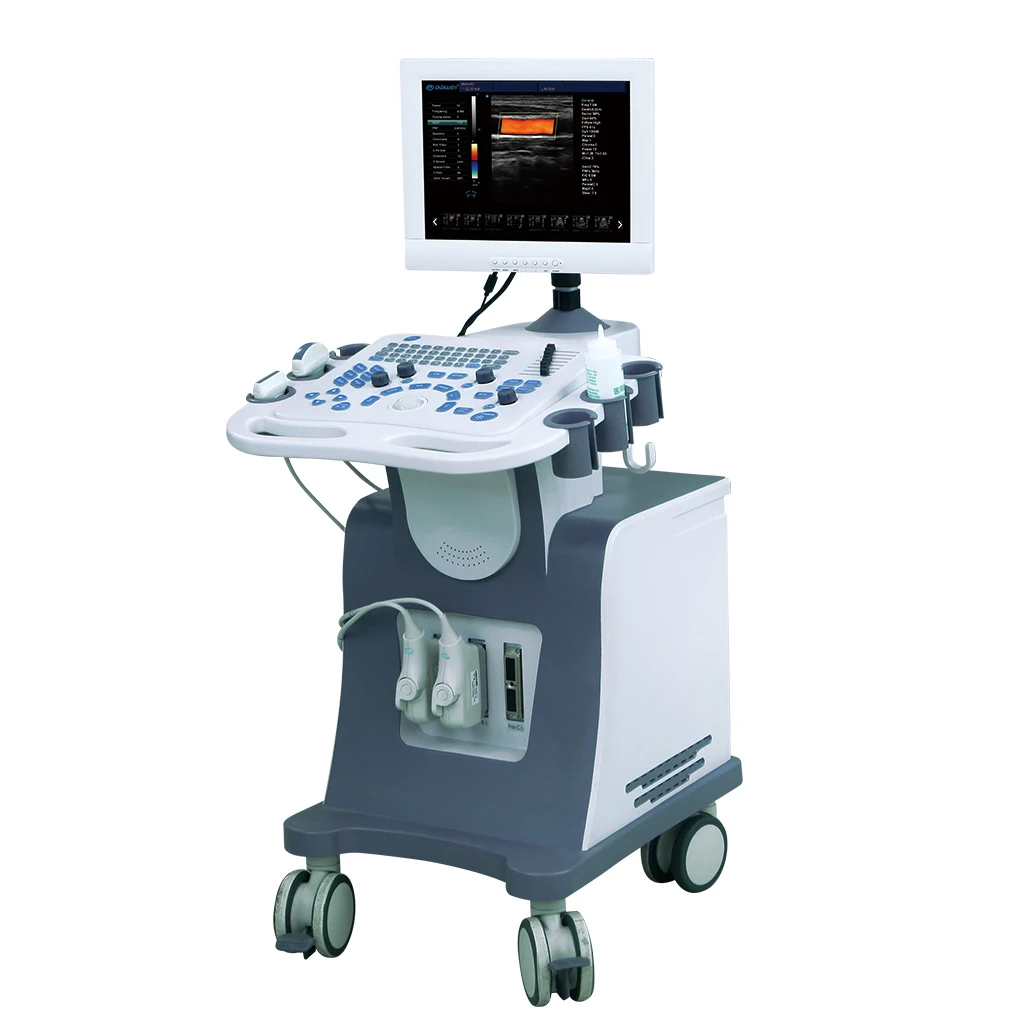

| Model No.:DW-C80 *Parameter: Detection depth: ≥ 300mm. Lateral resolution: ≤ 1mm (depth ≤ 80mm) ≤ 2mm (80 <depth ≤ 130mm).Vertical resolution: ≤1mm(depth≤80mm) ≤2mm(80<depth≤130mm) Blind zone: ≤ 5 mm. Precision geometric position: Horizontal ≤ 10%. Longitudinal ≤ 10%. Signal channels: 64 channels Display: 17 inch LCD monitor. PAL output interface Grey Scale: 256 Power range: AC220V ± 10% 3A. Host Power: DC12.8V 11.5A Input power: ≤ 300VA. Continuous working time: ≥ 8h. *Application Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc *Displaying mode B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C, duplex, PW, CFM, CPA *Signal processing Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing *Image processing THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composit processing of tissue and blood flow image *General measurement B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram M mode: cardiac rate, time, distance, speed. *Standard configuration Main unit, 3.5MHz Multi-frequency convex probe(2.0, 3.0, 3.5, 4.0,5.5MHz), 17" LCD monitor, USB port DICOM3.0 *Optional configuration High frequency linear probe:128 elements R40 wideband Multi-frequency 6.0,6.5,7.5,10,12MHz Trans-vaginal probe:128 elements R10 wideband Multi-frequency 5.0,6.0,6.5,7.5,9.0MHZ Phased array probe :64 elements R20 wideband Multi-frequency 2.0,2.1,3.5,4.0,5.0 MHz *Printer: Video/Thermal printer, Laser printer | ||
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality products.We have 20 years exporting experience ,and established business relationship with 50 countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,
Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
1> Products
We have more than 3000 products supplied by our own factories,joint venture factories and agreement factories.You will save time,save cost to buy all the equipments from Wincom with full warranty.
2> Quality
Comply with ISO9001:2008 Quality Management System,we are responsible to supply you the best quality products .
3> Prices
Base on the strong relationship and agreement with more than 300 factories in China,we can supply you with the best competitive prices.
4> Services
Direct sales,OEM,Training,Installation.
Q:Are you trading company or manufacturer?
A:We are both manufacturer and trading company located in Changsha city,China.
Q:How long is your delivery time?
A:Generally it is 5-7 working days if the goods are in stock,or according to your quantity,it"s ≤30 working days.
Q:Do you provide 1 unit sample machine?
A:Yes,we could offer 1 unit sample machine,and make a PI for you including machine cost and shipping charge.
Q:What is your ways of payment?
A:T/T,L/C,Paypal,Western union,moneygram are all acceptable for us.
Q:How about your quality warranty?
A:Yes,of course,we have 1 year"s quality warranty.
