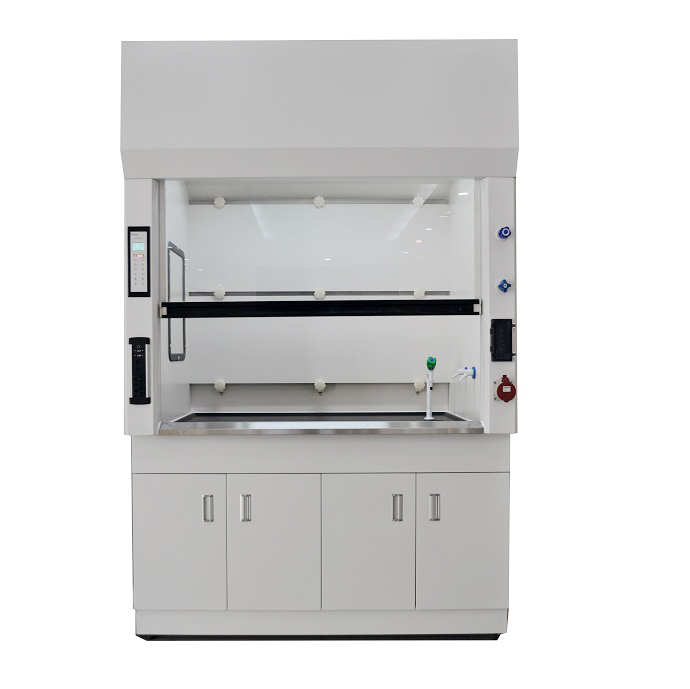

Top Quality Laboratory Fume Hood
 | |||
| 1. Approval quality | 2. Easy to Operate | 3. Certification: Applicable | 4. Certification: ISO9001:2008 |
| FUME HOOD | ||||
| Model | TF-1200-SS | TF-1500 | TF-1800 | |
| Average wind speed | 0.3-0.6 m/s (adjustable) | |||
| Noise level | < 60dB(A) | |||
| Exhaust air rate | 1500-3000 m3/h | |||
| Opening height | 0-750 mm | |||
| Luminance | > 200 LX | |||
| Power | (single-phase) 220V/50HZ, (three-phase)380V/50HZ | |||
| Motor power | 0.5-1.1 KW | |||
| Weight | 200-250 KG | |||
| Applicable persons | single person | |||
| Visual window | 5mm thick transparent tempered glass, explosion-proof | |||
| Control panel | touch, intelligent control panel, conditioning exhaust capacity, wind makeup, control light and socket | |||
| Worktop | 25 mm thickness of epoxy resin countertops (black), most chemical resistant | |||
| Cabinet body | Cold-rolled steel | 1.2mm thick cold-rolled steel sheets with epoxy resin powder coating, most chemical resistant. | ||
| FRP | fiber reinforce plastic, overall shape and no seam, most chemical resistant | |||
| 304 stainless steel | all parts are welded together by the molding bending and stamping, polish smooth, most chemical resistant | |||
| Working area size (mm) | 970*635 *1185 | 1250*635*1185 | 1550*635*1185 | |
| External size W*D*H(mm) | 1200*800*2350 | 1500*800*2350 | 1800*800*2350 | |
| |
Pre-Sales Service * Reply in 24 hours * Inquiry and consulting support. * Sample testing support. * View our Company. | After-Sales Service * Training how to instal the machine, training how to use the machine * Engineers available to service machinery overseas. |
Headquarters Rm. 1407, Mingcheng International Mansion, No. 46, Renmin East Road, Yuhua Dist., Changsha, Hunan
Guangzhou Address: GZ KWOK LAM Medical Instrument & Equipments City A3-157.No.600, Huawan Road, Fangcun, Liwan Area, Guangzhou. | |
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality products.
