- Type:
- Doppler Ultrasound Equipment
- Brand Name:
- WINCOM/ODM/OEM
- Model Number:
- USS-353C
- Place of Origin:
- Hunan, China
- Instrument classification:
- Class II
- Product name:
- Full Digital Ultrasound Scanner
- Scanning mode:
- Convex, Micro-convex, Linear,Transvagional
- Display modes:
- B, B+B, B+M, M, 4B
- Scanning depth:
- 180mm
- Gray scales:
- 256 Gray
- Image conversion:
- left/right, black/white, up/down
- Monitor:
- 7 inch LCD
- General Measurement:
- Distance, Circumference/Area, Volume, Heart Rate
- Features:
- Veterinary Handheld Full Digital Ultrasound Scanner with Convex probe
- Supply Ability:
- 5000 Piece/Pieces per Month Full Digital Ultrasound Scanner
- Packaging Details
- Full Digital Ultrasound Scanner
Standard Exporting Packing
- Port
- Shanghai

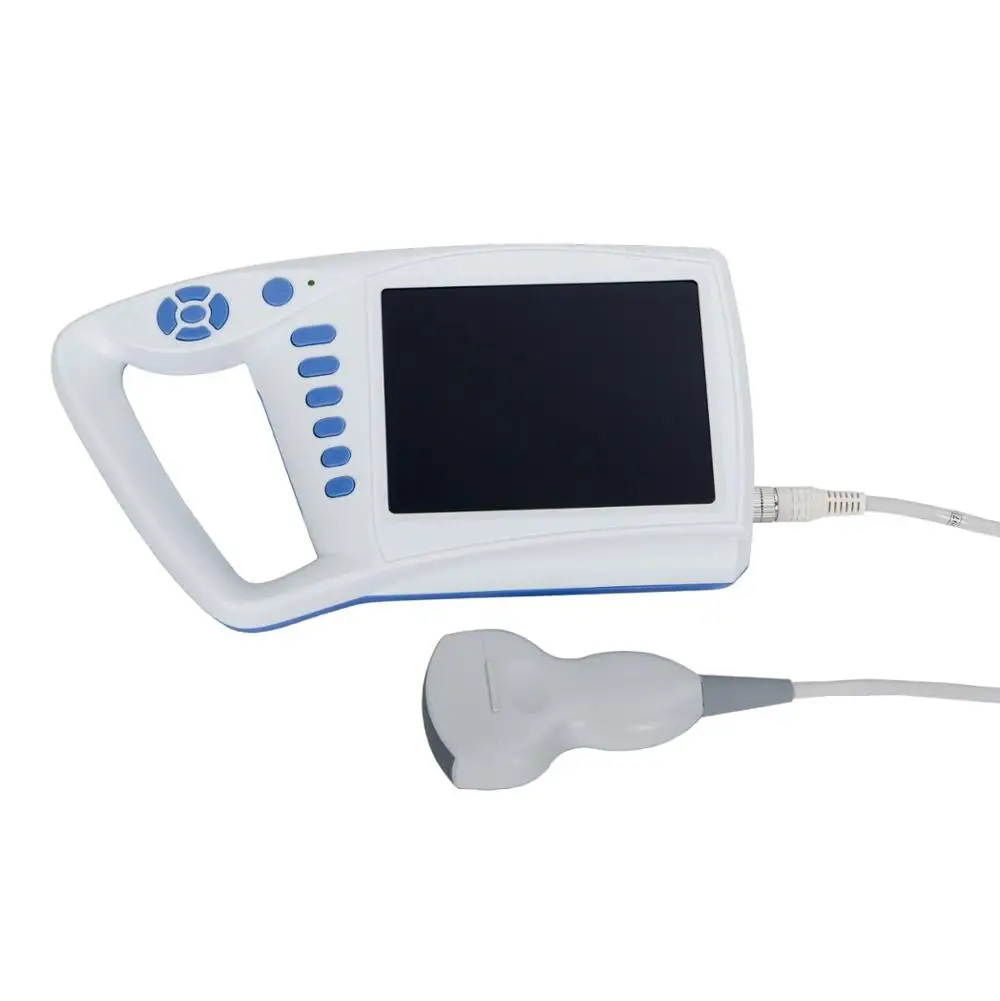

NEW Portable Full Digital Palm Ultrasound Scanner Machine
Model: USS-353C
1. Full digital beam forming technology
2. Generate Report
3. Human and Veterinary double system(depend on your needs)
4. 7 inch TFT LCD
5. A/DC and LI-battery operated
6. Light and compact design, simple to use
7. High quality keyboard and clear image
8. USB 2.0 for real-time picture uploading to PC
9. Probe automatic identification
10. Net weight: 1.2 Kgs
11. Dimension: 320×170×65mm
Medical Digital Palm Ultrasound Scanner with mini design |
Scanning Method: Convex, Micro-convex, Linear,Transvagional |
Frequency for Convex : 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 |
Display Mode: B, B+B, B+M, M, 4B |
Gray Scale: 256 levels |
Monitor: 7 inch LCD |
Operation interface: English/Chinese switchable |
Scanning Deepth : 180mm |
Image magnification: *1.0, *1.2,*1.3 *1.5,*1.6, *1.8, *2.0 times |
Image control: left/right, black/white, up/down |
General Measurement: Distance, Circumference/Area, Volume, Heart Rate |
Full Digital Palm Ultrasound Scanner with good price |
Characteristic showing in real-time clock, ID, Sex, Age, Hospital name |

Warranty time : 1 year
Service: OEM / ODM
Oversea Technical Guidance
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality
products.We have 20 years exporting experience ,and established business relationship with 50
countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.

Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.

1. Q: How long is the warranty time?
A: 12 Months
2. Q: What is the payment method?
A: Westunion, TT, Moneygram, Payapl, L/C etc.
3. Q: When do you delivery?
A: Usually in 7-30 days.
4. Q: Could you offer intallation or tranning oversea?
A: Yes, we offer the service for complex machine in charge.
5. Q: It is my 1st time purchase products oversea, how to promise its safe?
A: We are vertified company by Alibaba, and we attend many Intl.Fair every year.
Welcome to visit our shop and company.
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
