High quality chemical laboratory furniture biosafety cabinet fume hood Class 100

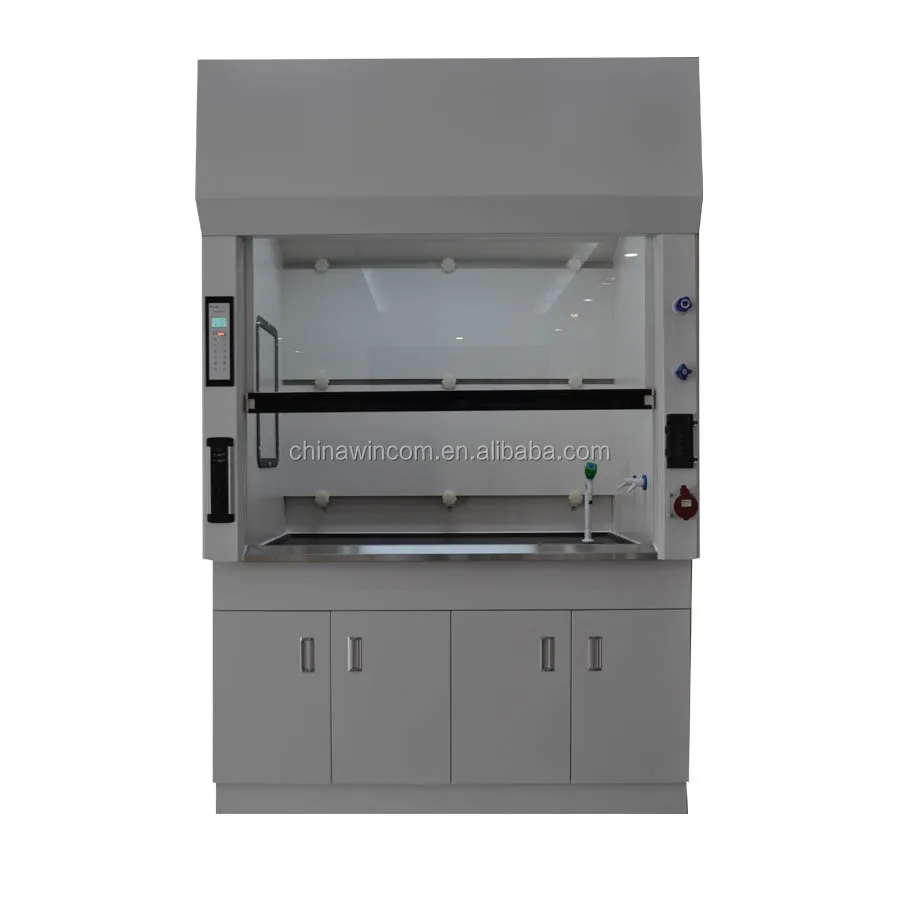

Picture of the fume hood
The fume hood technical parameter
| Model NO. | TF-1200 | TF-1500 | TF-1800 |
| Average wind speed | 0.3-0.6 m/s (adjustable) | ||
| Noise level | < 60dB(A) | ||
| Exhaust air rate | 1500-3000 m3/h | ||
| Opening height | 0-750 mm | ||
| Luminance | > 200 LX | ||
| Power | (single-phase) 220V/50HZ, (three-phase)380V/50HZ | ||
| Motor power | 0.5-1.1 KW | ||
| Weight | 200-250 KG | ||
| Applicable persons | single person | ||
| Visual window | 5mm thick transparent tempered glass, explosion-proof | ||
| Control panel | touch, intelligent control panel, conditioning exhaust capacity, wind makeup, control light and socket | ||
| Worktop | 25 mm thickness of epoxy resin countertops (black), most chemical resistant | ||
| Cabinet body | Cold-rolled steel | 1.2mm thick cold-rolled steel sheets with epoxy resin powder coating, most chemical resistant. | |
| FRP | fiber reinforce plastic, overall shape and no seam, most chemical resistant | ||
| 304 stainless steel | all parts are welded together by the molding bending and stamping,polish smooth, most chemical resistant | ||
| Working area size W*D*H(mm) | 970*635 *1185 | 1250*635*1185 | 1550*635*1185 |
External size W*D*H(mm) | 1200*800*2350 | 1500*800*2350 | 1800*800*2350 |
Application of hume hood
Laboratory ventilation is an integral part of laboratory design. In order for laboratory personnel to inhale or swallow certain toxic, toxic or toxic chemicals and organisms, the laboratory should be well ventilated. To prevent the absorption of some vapors, gases, and particulates (smoke, soot, dust, and air suspension), contaminants must be removed by fume hoods, hoods, or partial ventilation.
1.Usual package: paper box with foam to keep fixed.
2.We also can do as your requirements, such as wooden box.
3.Delivery time: 7-30 working days, according to your quantity.
4.Pyament term: Westunion, TT, Moneygram, Payapl, L/C, etc.
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality products.
please kindly find the details as below:

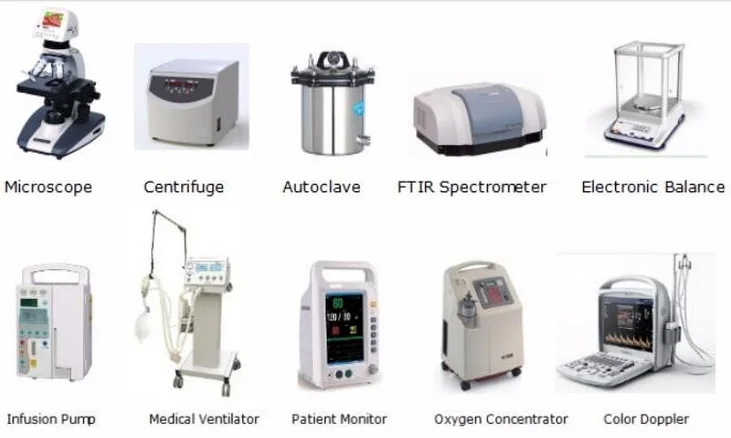

1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,
Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
OUR CERTIFICATES:
1. Q: How long is the warranty time?
A: 12 Months
2. Q: What is the payment method?
A: Westunion, TT, Moneygram, Payapl, L/C, etc.
3. Q: When do you delivery?
A: Usually in 7-30 days.
4. Q: Could you offer intallation or tranning oversea?
A: Yes, we offer the service for complex machine in charge.
5. Q: It is my 1st time purchase products oversea, how to promise its safe?
A: We are vertified company by Alibaba, and we attend many Intl.Fair every year.
Welcome to visit our shop and company.
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
