- Place of Origin:
- Jiangsu, China
- Brand Name:
- WINCOM/OEM
- Model Number:
- XSZ-2108A
- Theory:
- Biological Microscope
- Drawtube:
- Binocular
- Product name:
- Binocular microscope
- Model No.:
- XSZ-2108A
- Brand:
- WINCOM
- Objectives:
- 4x/10x/40x(s)/100x(s/oil)
- Eyepiece:
- WF10X
- Nosepiece:
- Quadruble
- Viewing head:
- Binocular head
- Condenser:
- N.A=1.25 Abbe Condenser
- Color:
- White+ Black
- Optical system:
- Universal optical system,achromatic objectives,
- Supply Ability:
- 1000 Piece/Pieces per Month binocular microscope
- Packaging Details
- Usual package:paper box with foam to keep fixed.
Any requirements,pls inform us in free.
- Port
- Shanghai
- Lead Time:
- 15-30 days after payment.

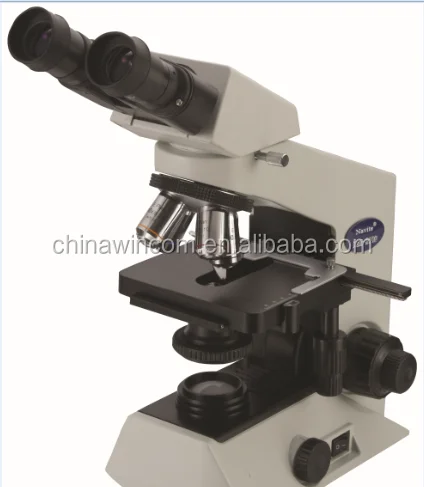

Factory price biological binocular microscope
| Binocular microscope | |
| Objectives | 4X,10X,40X(S),100X(S,OIL) |
| Eyepiece | WF10X(Wide field) |
| Nosepiece | Quadruple |
| Viewing head | Binocular head |
| Condenser | Abbe condenser, NA=1.25 |
| Optical system | Achromatic objectives,Universal optical system,plan-achromatic objectives |
Binocular microscope fetures

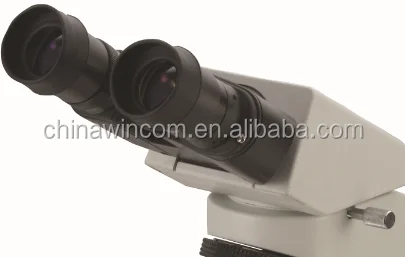

Viewing Head: Compensation Binocular Head,Inclined at 30°,Interpupillary distance 55-75mm
Eyepieces : High point Wide Field Eyepiece WF10X/18 (Anti-Mould)with eyepiece cup

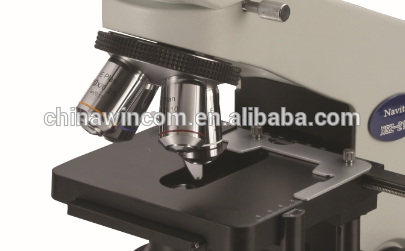

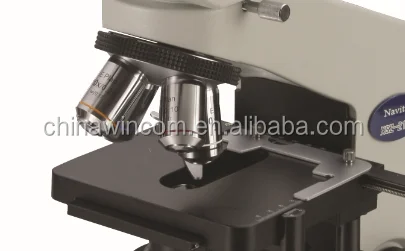

Objectives : Infinite Plan Achromatic objectives 4X 10X 40X(S) 100X(S,Oil)
Nosepiece : Outward Quadruple Nosepiece
Stage : Double layer Stage,Size:140X140mm /movement range75X45mm

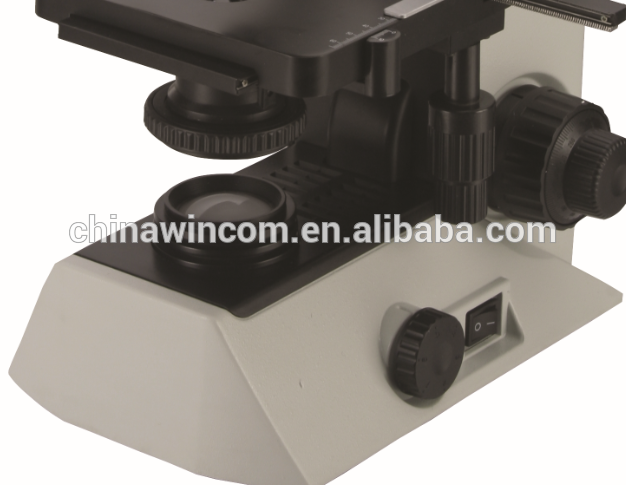

Focusing : Coaxial Coarse and fine Adjustment,Coars adjustment14mm ,fine range 0.001mm
Condenser : Abbe N.A.=1.25 Condenser with iris diaphragm and filter
Illumination : AC 220/110V,6V/20W Halogen lamp ,Build-in Kohler illumnation




Usual package:paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.

Packing rate:one piece in one carton
packing size:39*30*54cm
CBM:0.0632
G.W:10KG
N.W:9KG
