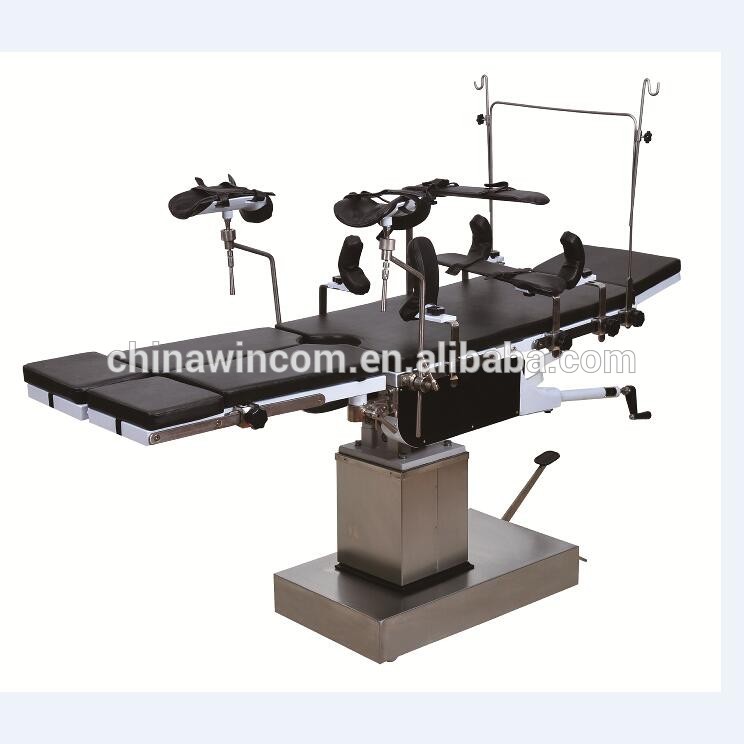

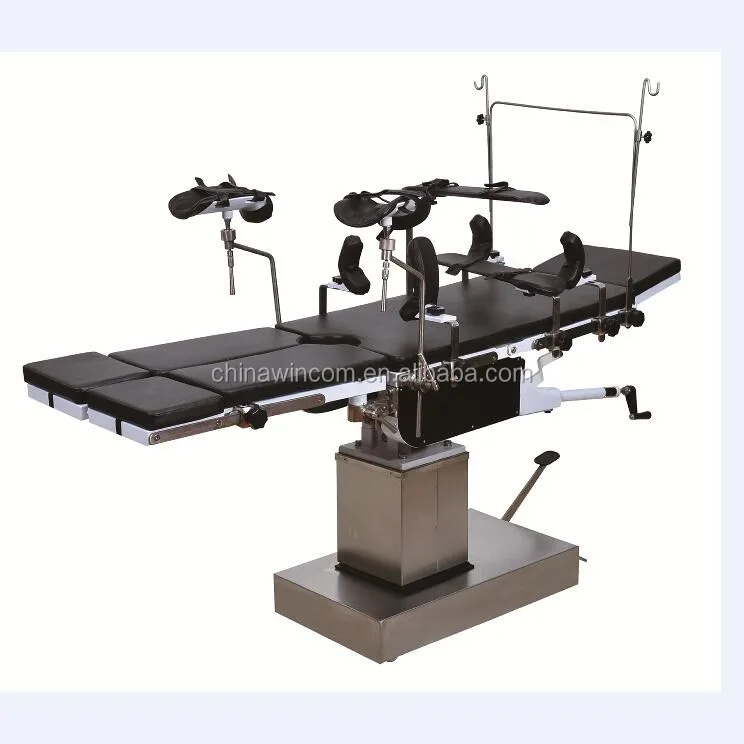

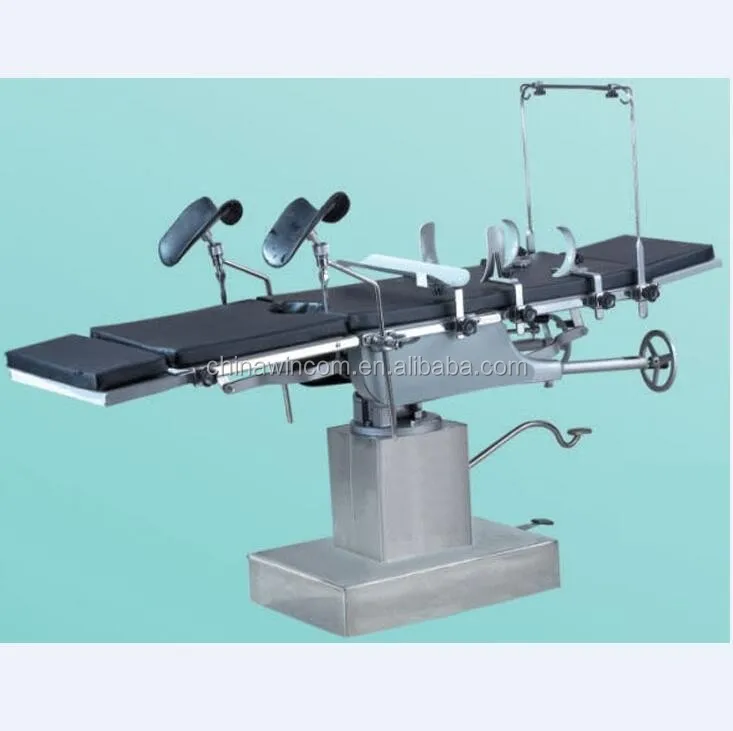

Multifunctional Operating Table for Hospital Surgical Room 3008
The operating table is supplied for thoracic surgery,abdominal surgery,ophthalmology,otorhinolaryngology,obstetrics and gynecology,urinary surgery and orthopaedics.
The rise and drop of operating table is handled by pedaling the oil pump,other various movements are handled by the mechanical transmission head.
-Technical parameters
Model(Multifunctional Operating Table) | 3008A/3008B |
Length and width of table | 2100mm x 480mm |
Max.&Min.Height of table | 1045mm x 800mm |
Max.degree of forward and backward tilting of table | Forward ≥55° Backward ≥35° |
Max.degree of left and right tilting of table | Left ≥25° Right ≥25° |
Max.degree of back rest adjustment | up≥85° down≥10° |
Waist rest elevation | 120mm |
Leg rest adjustment | down≥90° |
Oil pump travel | 240mm |
Head rest (275x310mm) | It can be folded for 90 degree, elongated or unloaded |
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality
products.We have 20 years exporting experience ,and established business relationship with 50
countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,
Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
