Portable Electric Suction Apparatus for Medical Surgical
| Pedal Suction Apparatus/ Hospital Suction machine | |
| Model No | 7B |
| Max negative pressure value | ≥ 0.08MPa |
| Negative pressure back-reduction | ≤0.005MPa/10min |
| Reservoir capacity | 1000mL |
| Pedal pressure | ≥ 245N |
| SUCTION APPARATUS | ||
| Model No. | 7E-A | 7E-B |
| Power: | ≤90VA | ≤90VA |
| Max negative pressure value: | ≥0.075MPa | ≥0.075MPa |
| Pumping rate: | ≥18L/min | ≥15L/min |
| Noise: | ≤ 65dB (A) | ≤65dB(A) |
| Universal Suction Apparatus AC/DC | |
| Model No. | 7E-D |
| Power supply: | AC 220V/110V, DC 12V |
| Power: | ≤90VA |
| Max negative pressure value: | ≥0.075MPa |
| Pumping rate: | ≥15L/min |
| Reservoir volume: | 1000mL |
| Noise: | ≤65dB(A) |
| Electric suction apparatus | |
| Model No | 7A-23D |
| Max negative pressure | ≥0.09MPa |
| Noise | ≤ 65 dB (A) |
| Power | ≤180VA |
| Pumping rate | ≥20L/min |
| Reservoir capacity | 2.5L/pc * 2 |

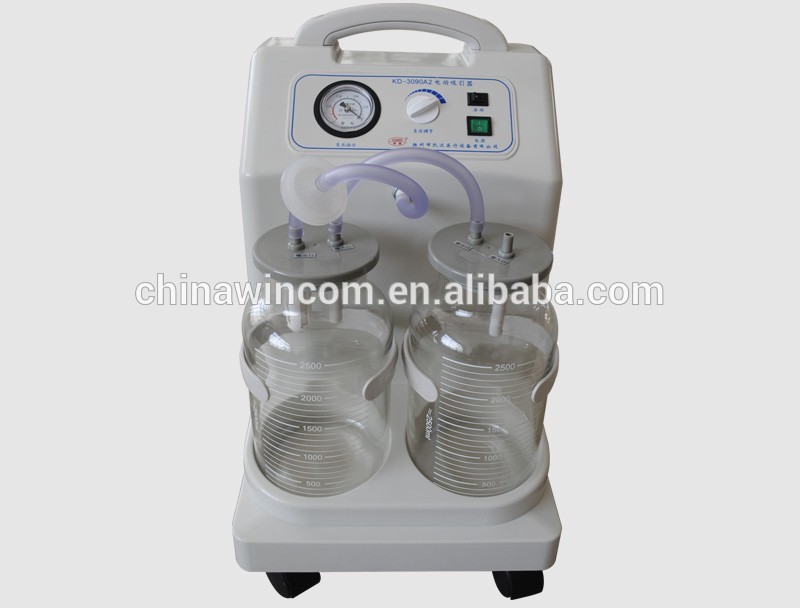

ELECTRICAL SUCTION INSTRUMENT | |
| Model No.: | KD-3090A2 |
| 1.Adoption of film-type pump,without pollution and oil filled lubrication and with long service lives | |
| 2.Low voltage control with foot pedal,safe and convenient. | |
| 3.Limit of negative preesure:≥0.09Mpa | |
| 4.Air suction speed: ≥20L/min. | |
| 5.Liquid storage bottle: 2500mlx2 | |
| 6.Low noise:≤60dB(A) | |
ELECTRICAL SUCTION INSTRUMENT | |
| Model No.: | KD-3090C1 |
| 1.Adoption of film-type pump,without the need of oil filled lubrication. | |
| 2.The suction pump is of a single direction pump, preventing positive pressure to ensure safety. | |
| 3.Limit of negative preesure: ≥0.07Mpa | |
| 4.Air suction speed: ≥15L/min. | |
| 5.Liquid storage bottle: 1000mlx2 | |
| 6.Low noise: ≤60dB(A) | |
