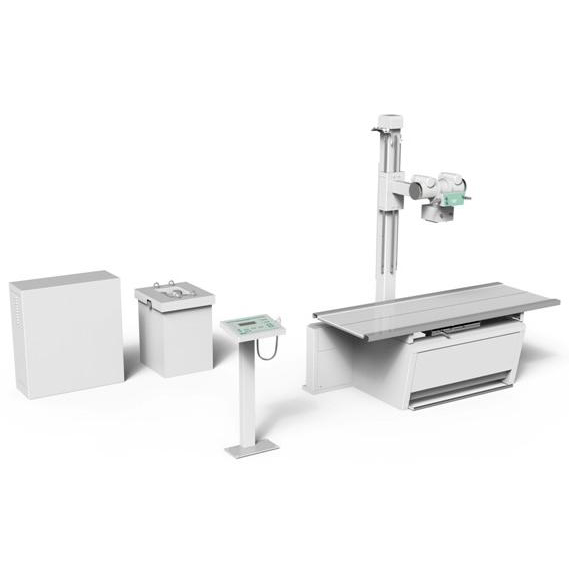

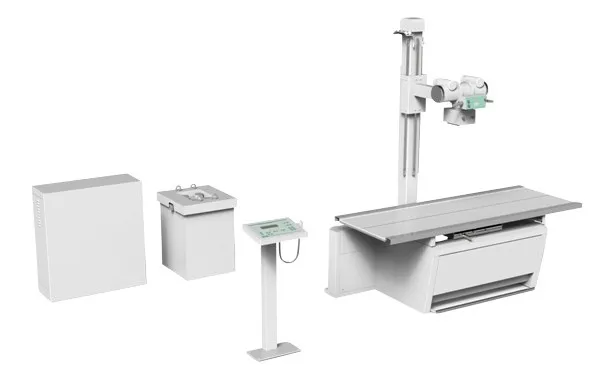

X-ray Radiograph System machine (500mA) PLD-5000B
| X-ray Radiograph System (500mA) | |
| Model No. | PLD5000B |
| Output power | 40kW |
| Inverter Frequency | 50HZ |
| X-ray tube | Rotary anode, dual-focus, Tube thermal capacity: 140kJ |
| Tube current | 32~500mA |
| Tube voltage | 44kV-125kV |
| Expose time | 0.020s~4.000s |
| Power supply | 380V±38V 50/60Hz, Capacity: ≥40kVA |
| Table size | 2000×760mm |
| Table height | ≤700mm |
| Table transverse movement | ≥220mm |
| Table longitudinal movement | ≥900mm |
| Grids cassette holder movement | ≥500mm |
| X-ray tube assembly rotation | ±90° |
| Rotation of the pillar | 4×90° |
| SID | 500-1280mm |
| Pillar movement along the table | ≥1300mm |
| Film size | 5"×7"-14"×17" |
| Bucky stand up&down movement | 470~1468mm |
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality
products.We have 20 years exporting experience ,and established business relationship with 50
countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
