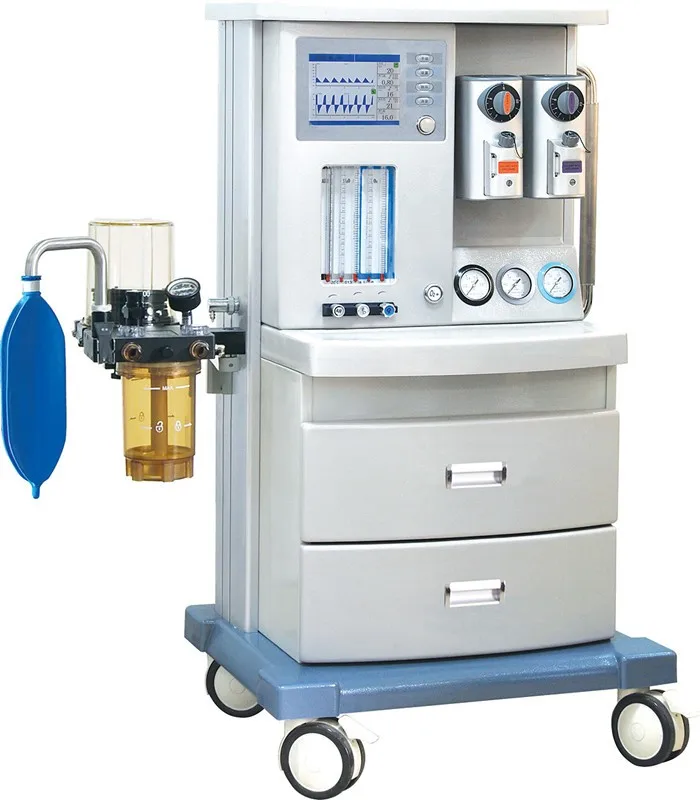

Anesthesia Machine with 8.4" screen JINLING-850
| Physical specifications | |
| Screen: | 8.4 "" LCD Display Screen |
| Suitable | Adult & Child |
| Mode: | Pneumatically powered and electrically controlled system |
| Working Mode: | Closed; Semi-Closed; Semi-Open |
| Circuit | Breathing circuit integrated standards |
| Flowmeters: | 5 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min; Air: 0.1~10L / Min |
| Trolley: | Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
|
| Drawer unit | TWO drawers totally extractable |
| Technical Specifications: | |
| Gas requirement: | Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa. |
| safety valve | ≤12.5 kPa |
| Respiratory Rate | 1~100bpm |
| oxygen concentration in the mixed gas N2O/O2 | > 21% |
| Oxygen Flush: | 25~75 L/min |
| modes of ventilation | A/C, IPPV, SIPPV, IMV(VCV),SIMV(VCV),PEEP, PCV,MANUAL, SIGH |
| Compliance of the lung | ≤30 Ml/kPa |
| PEEP: | 0 ~ 2.0 kPa |
| Inspiratory trigger pressure | -1.0kPa ~ 2.0 kPa |
| IMV frequency: | 1~20 times/Min |
| I/E Ratio: | 8:1 ~ 1:10, Has the inverse ratio ventilation |
| Tidal Volume | Adjustable range: 0 ~ 1500 ML, Display range:0~2000ML |
| Inspiratory Plateau: | 0~1s |
| O2 Concentration: | 21%~100% |
| Waveform display: | P----T , F----T , P----V , F---V |
| Sigh: | one deep breath per 70 ~ 120 controlled respirations, the inspiration time is 1.5 times of the setting point |
| Maximum safety pressure: | ≤ 12.5 kPa |
| Pressure limit range: | 0 ~ 6.0 kPa |
Airway pressure alarm: Audible and visual and with yellow and red color indicating | Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa |
| ±0.2 kPa | |
Tidal volume alarm: Audible and visual and with yellow and red color indicating | upper alarm: 50 to 2000ml, lower alarm: 0~1800ml |
| Power Supply Alarm | Ac/dc power supply are after failing to send out alarm immediately |
The airway pressure continues to be higher than 15 hPa ±1 hPa for 15s±1s, then the machine will raise an audible alarm, the pressure will be displayed in red and the continuous high pressure red alarm wording is displayed on the screen of the anesthetic respirator. | |
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
