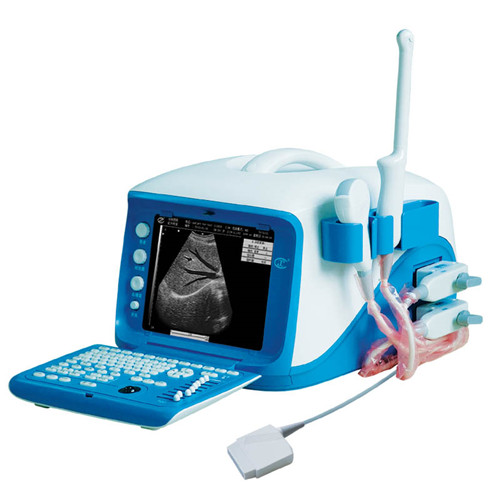

Full digital portable ultrasound scanner WT-6000
| FULL DIGITAL ULTRASOUND SCANNER | |
| Model No.: WT-6000 | |
| 1.Image mode: convex array and linear array | |
| 2.Display mode: B, B/B, 4B, B+M and M; | |
| 3. Image magnification: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes), ×0.8, ×2.0 (Depth display); | |
| 4. Dynamic range: 0~120dB adjustable | |
| 5. Main unit :3.5MHz(80 elements, R=50mm) convex probe | |
| 6.Gray scale: 256 | |
7.Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.
8. Main unit: 3.5MHz Convex probe
10. Options
7.5MHz(80elements)linear probe
3.5MHz(80elemnts,R=20mm) cardiac probe
6.5MHz(80elemnts,R=11mm) trans-vaginal probe
"
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
