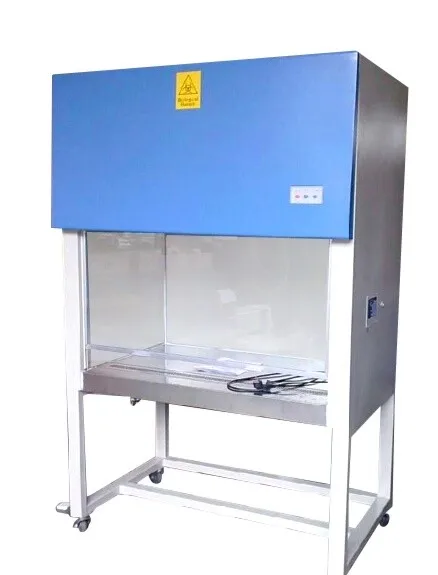

Electric Class 100 Biosafety Cabinet WT-SW Lab equipment
| BIOSAFETY CABINET | ||
| Model | SF-SW-1100 (B2 and B3) | SF-SW-1300 (B2 and B3) |
| Purification grade | Class 100(Federal Standard 209E) | |
| Bacterium colony No. | ≤0.5pcs/disg·hour(90mm dish) | |
| Average wind speed | 0.38±0.025m/s (inside door) | |
| 0.26±0.025m/s (in the middle) | ||
| 0.27±0.025m/s (deep inside) | ||
| Front inlet wind speed | 0.55±0.025m/s | |
| Air tighteness | ≤10-6L/S(at 500Pa) | |
| Noise | ≤60DBA | |
| Vibration/Half peak | ≤5μm | |
| Working zone (mm) | 1100×600×680 | 1300×600×680 |
Fluorescent lamp &UV lamp | 30W×1 | 30W×1 |
| Remark | B2 0% of air for circulation, 100% of air is discharged to exhaust piping through pipeline 30% of air is discharged to exhaust piping through pipeline | |
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .

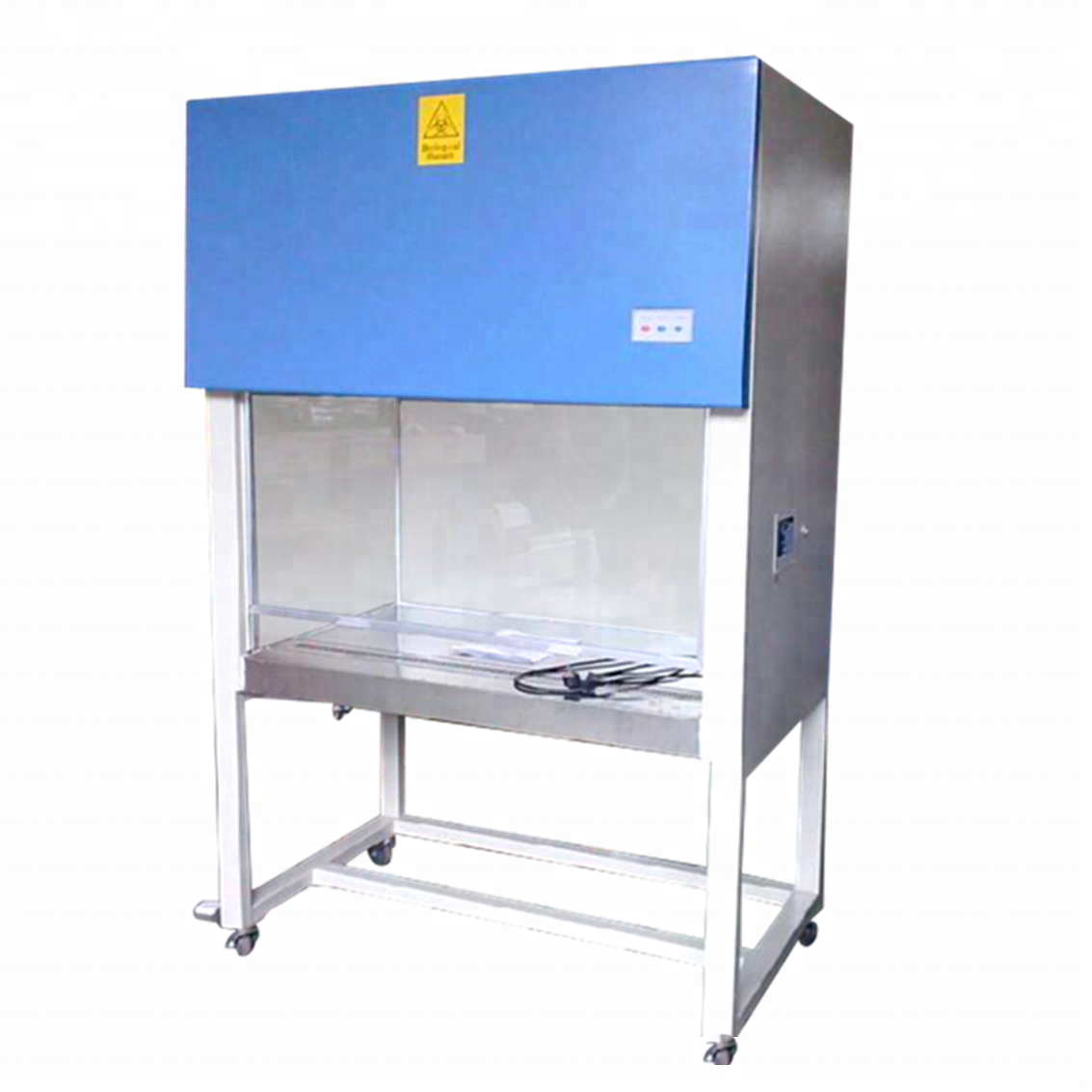

Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
