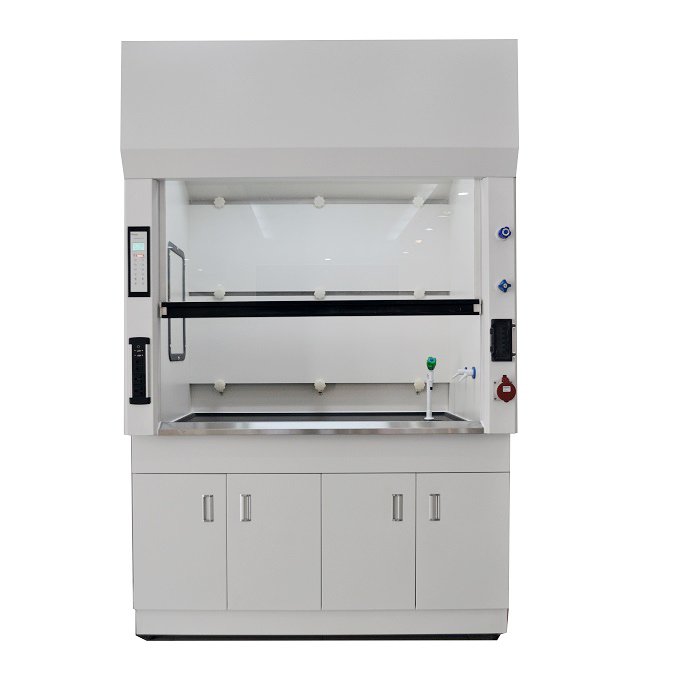

stainless steel lab fume hood price TF series
| FUME HOOD | |||
| Model | TF-1200 | TF-1500 | TF-1800 |
| Average wind speed | 0.3-0.6 m/s (adjustable) | ||
| Noise level | < 60dB(A) | ||
| Exhaust air rate | 1500-3000 m3/h | ||
| Opening height | 0-750 mm | ||
| Luminance | > 200 LX | ||
| Power | (single-phase) 220V/50HZ, (three-phase)380V/50HZ | ||
| Motor power | 0.5-1.1 KW | ||
| Weight | 200-250 KG | ||
| Applicable persons | single person | ||
| Visual window | 5mm thick transparent tempered glass, explosion-proof | ||
| Control panel | touch, intelligent control panel, conditioning exhaust capacity, wind makeup, control light and socket | ||
| Worktop | 25 mm thickness of epoxy resin countertops (black), most chemical resistant | ||
| Cabinet body | Cold-rolled steel | 1.2mm thick cold-rolled steel sheets with epoxy resin powder coating, most chemical resistant. | |
| FRP | fiber reinforce plastic, overall shape and no seam, most chemical resistant | ||
| 304 stainless steel | all parts are welded together by the molding bending and stamping, polish smooth, most chemical resistant | ||
| Working area size W*D*H(mm) | 970*635 *1185 | 1250*635*1185 | 1550*635*1185 |
| External size W*D*H(mm) | 1200*800*2350 | 1500*800*2350 | 1800*800*2350 |
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
