Home > Products > Medical Care Anesthesia Apparatus For Model WT852-B

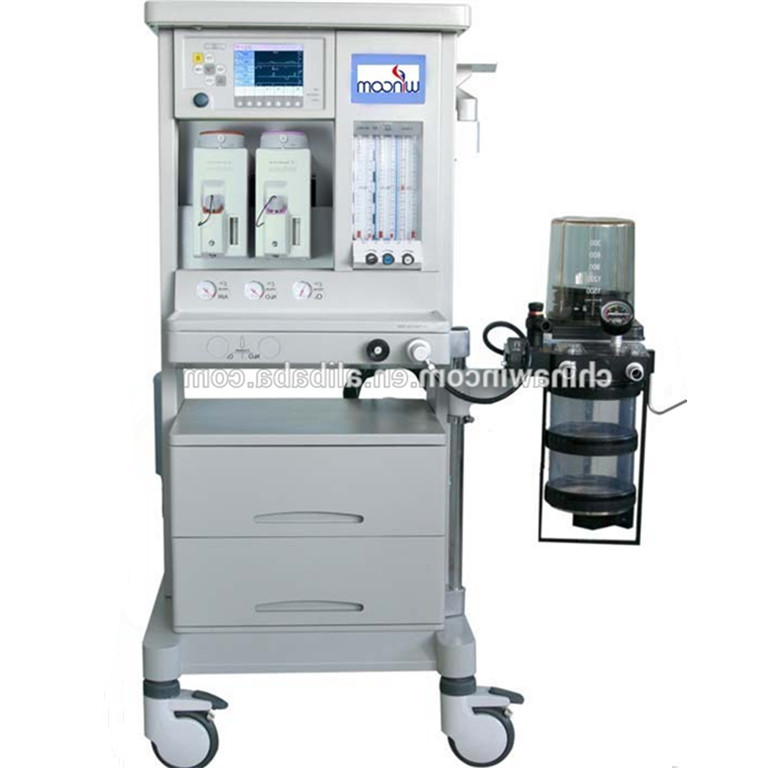

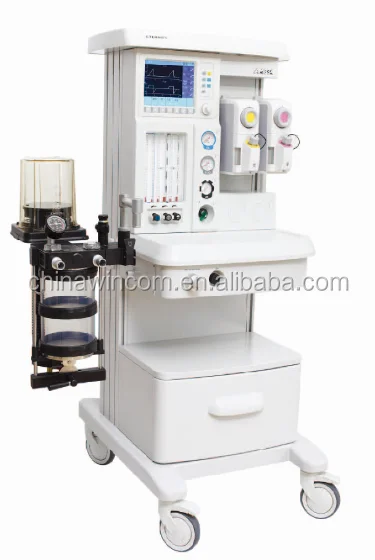

Medical Care Anesthesia Apparatus For Model WT852-B
Click on the image to view the original image
Product： views：7Medical Care Anesthesia Apparatus For Model WT852-B
Branch： WINCOM
Type： Anesthesia Equipments & Accessories
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:12
  Negotiated
Product Details
Overview
Quick Details
Brand Name:
WINCOM
Model Number:
WT852-B
Place of Origin:
Jiangsu, China
Instrument classification:
Class II
Working temp:
+10℃-+40℃
Flow range:
0.2-15l/min
Warranty time:
1 year
Certification:
ISO CE
Tidal volume:
30ml-1500ml
Experience:
20 year
Ventilation frequency:
0-120bpm
Pyament ways:
T/TL/C,Western Union
Min order:
one set
Name:
Medical Care Anesthesia Machine For Model WT852-B
Type:
Anesthesia Equipments & Accessories
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1pc/ctn,paper box or wooden box,as your requirement
Port
Shanghai or Guangzhou Port



Product Description





Medical Care Anesthesia Apparatus For Model WT852-B





Physical and environmental specification:

Storage temp.:-22~55°C
Working temp.:10-40°C
Storage humilidity:≤93°C

Electronic specification

Power supply:AC100~240V±10% 50/60HZ±1%
Battery:2.5~4hours
Power consumption:≤75VA

Pneumatic specification:

Gas supply: O2/  N2 O/AIR 0.28MPa~0.6MPa
Flowmeters: O2 :0~1L/min,1~10L/min
N2 O:0~1L/min,1~10L/min
AIR:0~1L/min,1~10L/min
Five-tube flowmeter,0-10L/min



Vaporizer Specification:
Support 3 vaporizer(selectable and compatible)
Agent type:Sevoflurane;halothane,Isofurane
Flow range:0.2~15L/min
Concentration:0~5.0%(sevoflurane 0-8%)
Working temp.:15~35°C



Monitoring Specification:
Display:high-luminance and wide visual angle TFT
LCD display of 6.4inch
Pressure:-2~10KPa
Tidal volume:0~2000ml
Respiratory frequency:0~120bpm
Silence time for Alarm:≤120S
