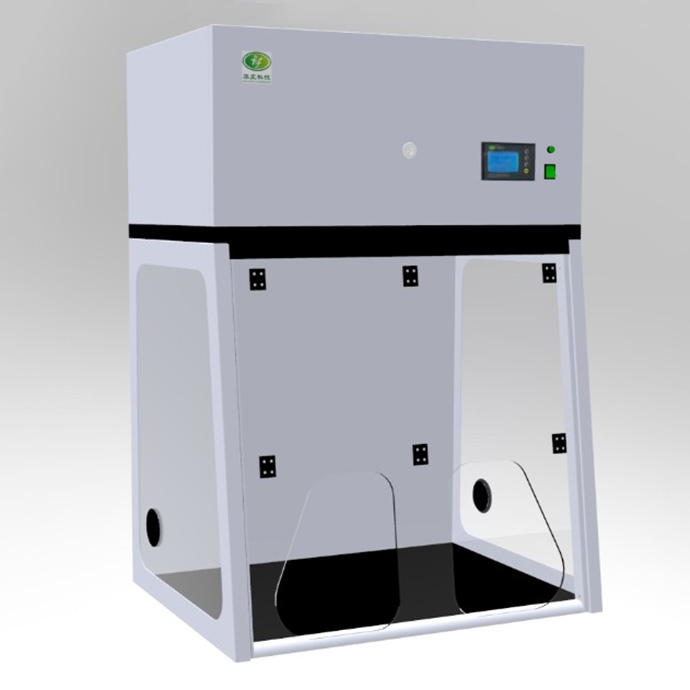

Ductless Fume Hood NF Series
| Model No. | Inside(mm) | Outside(mm) | filter module | Airflow (cubic metre/h) | Face velocity(metre/s) | Noise dba |
| NF800 | 788x560x760 | 800x620x1146 | 1 | 240 | 0.4-0.6 | ≤50 |
| NF1000 | 988x560x760 | 1000x620x1146 | 1 | 240 | 0.4-0.6 | ≤50 |
| NF1300 | 1288x690x760 | 1300x790x1146 | 2 | 480 | 0.4-0.6 | ≤54 |
| NF1600 | 1588x690x760 | 1600x790x1146 | 3 | 720 | 0.4-0.6 | ≤57 |
| NF1800 | 1788x690x760 | 1800x790x1146 | 4 | 960 | 0.4-0.6 | ≤57 |
| Accessory | LED display, LED lighting, Epoxy table, Filter Type(Optional YJ type filter, TY-type filter, HEPA filters) | |||||
| Product Structure | 1.Metal parts: the main material of 1.2mm galvanized steel, coated with anti-acid epoxy polyester coating; 2.Load-bearing parts:the use of 2.0mm thick galvanized steel, load-bearing ability, coated with anti-acid epoxy polyester coating; 3.Side:6mm thick acrylic plate embedded in 1.2mm galvanized steel; 4.Front panel:8mm thick acrylic plate 5.Filter Module: Polypropylene(PP material) | |||||
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply of Laboratoy Equipments and Medical Equipments.We have our own factory to provide est quality products.
We have 20 years exporting experience ,and established business relationship with 50 countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
In our business,we always insist on the principle of "3B"--Best service, Best quality, Best reputation.
