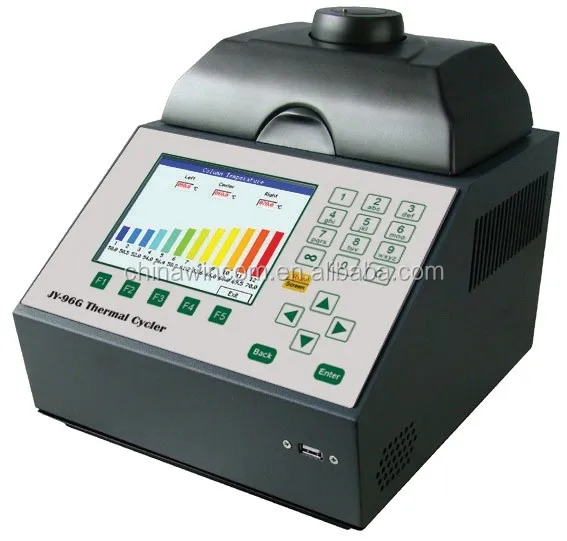

Medical PCR Thermal Cycler for DNA Testing Equipment
DNA Thermal Cycler (PCR) is widely used in the field of gene amplification, being an important tool in the research of the Molecular Biology, features with the accuracy temperature control, now have been widely used in the Biomedical and relavent Research.
1.The most advanced semi-conductor technology (peltier-based)
2.Convenient and flexible for module replacement .
3. Large size and super-high-definition LCD screen
4.Intuitive, friendly user interface makes programming easier and faster.
5.Automatic Memory function in case of power falure
6.Low noise, low energy consumption, long application life.
7.Solemn, elegant appearance, innovative modeling.
8.Unique rotating stall heat-regulating function
9.Optimal human body’s design, convenient to operation
10.Heat lid could be fixed at any angle
11.Handle-module,ensuring the module replacement mor secure and convenient
Parameter:
1.Capacity: 96×0.2ml + 77×0.5ml
2.Temp range: 0°C~99°C(RT≤30°C)
3.Max Heating rate: ≥4.0°C/s
4.Max Cooling rate: ≥3.5°C/s
5.Temperature uniformity: ≤±0.4°C(95°C),≤±0.2°C(20°C~75°C)
6.Temperature accuracy: ≤±0.2°C
7.Gradient temp range: 30~99°C
8.Gradient spread: 2~30°C
9.Heating lid temp: 70~110°C
10.Temp control: block,tube,calculated
11.Stored program No.: 200
12Max. No. of Cycle: 99
13Display: 5.7inch,320×240pels LCD
14.Communication: USB2.0 RS232
Standard and Safety Packing.
Packing Rate: 1pc/CTN
One Carton Size(3pcs) : 65*53*53cm
Gross Weight: 11KG
Net Weight: 8KG
CBM:0.1826
ODM/OEM
Warranty: one year
