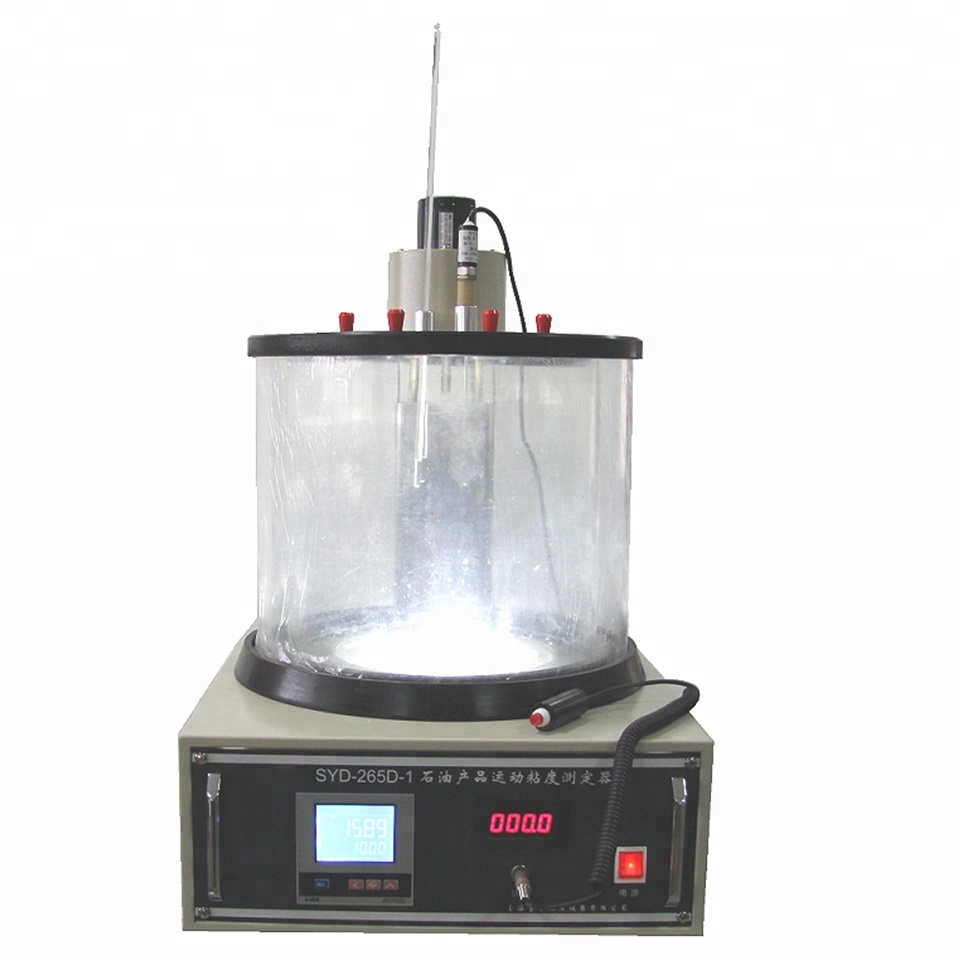

SYD-265D-1 Petroleum Products Kinematic Viscometer
The instrument is designed and made as per the Industry Standard of People’s Republic of China SY/T5651 “Technical Requirements for Petroleum Products Kinematic Viscosity Tester”. It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquids) at a constant temperature as per the National Standard of People’s Republic of China GB/T265 “Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity”.
I. Main technical characteristics
1.It uses a high precision, digital temperature controller, so the temperature controlling accuracy can be ±0.01°C and the temperature displayed is clear.
2.It contains a harden glass bath and a heat insulation layer, so it has better heat insulation performance and it is clear to observe sample.
3.It adopts integrated worktop structure, so it looks good and it is convenient to be operated.
4. It uses an electric stirring device, so the temperature in the water bath is uniform.
II. Main technical specification and parameters
1.Power supply: AC 220V±10%, 50 Hz;
2.Heating power: two grades; 1000W (for auxiliary heating) +650 W (for heating control);
3.Stirring motor:
(1) Power: 6 W;
(2) Speed: 1200 RPM;
4.Temperature measurement range: room temperature~100°C;
5.Temperature controlling accuracy: ±0.01°C;
6.Timer: 0.0 s~999.9 s;
7.Constant temperature bath:
(1) Cubage: 20 L;
(2) Type: two layers;
8.Ambient temperature: -10°C~+35°C;
9.Relative humidity: <85%;
10.Total power consumption: not more than 1800 W;
11.Capillary viscometer: 11 pieces in total; their inner diameters are 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5 and 4.0 mm respectively.
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
