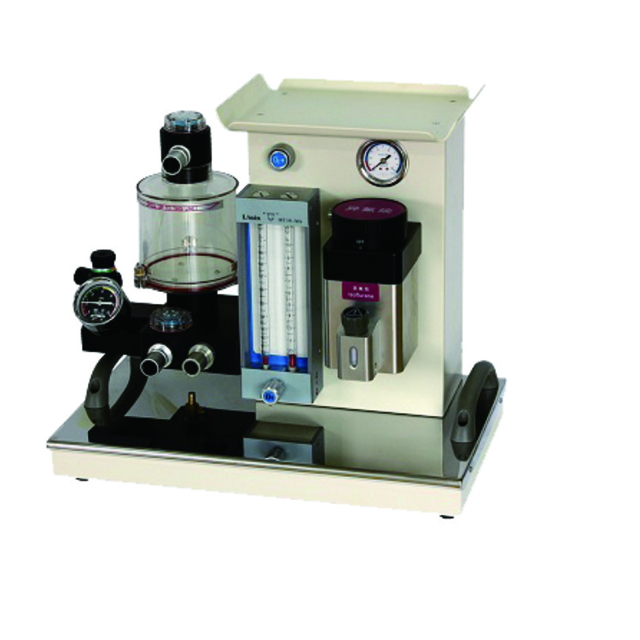

MEDICAL DEVICE-ANESTHESIA MACHINE AM852-E
Portable design
Safety function
Easy use and maintainence
SPECIFICATIONS
Physical and environmental
________________________________________
Dimension:450x405x330(LxWxH)
Weight:22Kg
Storage temp.:-22~55°C
Working temp.:10-40°C
Storage humilidity:≤93°C
Vaporizer
________________________
Agent type:Enflurane;halothane,Isofurane
APL valve:≤6Kpa
Flow range:0.2~10lpm
Concentration:0~5.0%
Working temp.:15~30°C
Main unit
_________________________
Mode:Semi-open,semi-closed or closed system.
Gas supply: O2 / N2O 0.28MPa~0.6MPa
Flowmeter: O2 / N2O two-tube flowmeter,0~10L/min(with interlock protection devices ensuring the oxygen concentration>21%)
O2 flush:25~75L/min
O2 deficiency:Audible alarm for least 7 seconds
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance,Online-trainning .
1.Usual package: paper box with foam to keep fixed.
2.We also can do as your requirements, such as wooden box.
3.Delivery time: 7-30 working days, according to your quantity.
4.Pyament term: Westunion, TT, Moneygram, Payapl, L/C, etc.
