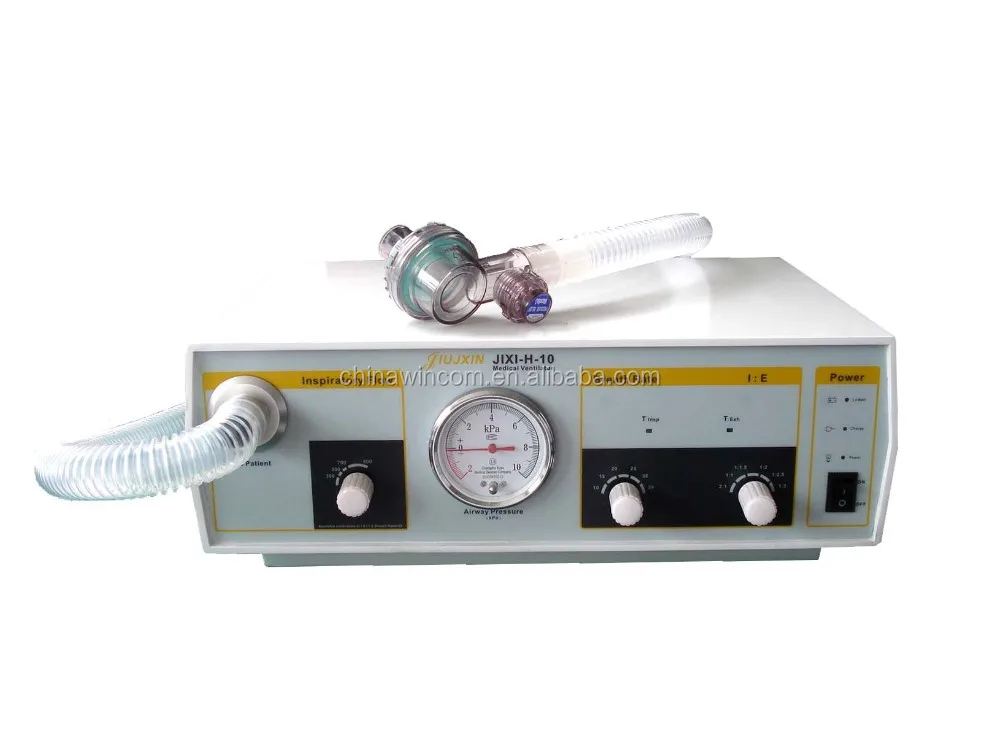

medical Emergency Ventilator JIXI-H-10 apparatus
1.What Is Provided
Parts Name | Number | Specifications |
Ventilator | 1 | |
Breath Circuit | 1 |
|
Breath Value | 1 | |
Oxygen Pressure Peducer | 1 | For normal oxygen cylinder |
Mask | 1 | |
Hand Book | 1 | |
Battery | 1 | Can be used for 8 hours |
Charger | 1 | |
Flesh | 1 | |
CD for operation | 1 |
2.Monitors
Indicators | Specifications |
Power | Red Indicator |
Insp.phase | +/-0.1kPa Green Indicator |
Chargering | Red Indicator |
Exh.phase | Green Indicator |
Low Battery | Red Indicator |
3.controls
| Controls | |
| Breath Rate | 10 15 20 25 30 35bpm |
| I:E | 2:1 1:1 1:1.5 1:2 1:2.5 1:3 |
| Tidal Volume | 300 ~ 1000 ml |
4.Physical Specifications
W*D*H 380X120X240mm
Weight 3kg
5. Electrical Specifications
AC Voltage 110V~240V
DC Voltage 12V
Inlet Battery£º12V , 2Ah
6.Pneumatic Specifications
Oxygen Iblet:Pressurized Oxygen(0.28~0.6 MPa medical oxygen)
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
Service: OEM / ODM
Oversea technical guidance
