Specifications
Sterilizing chamber volume:25L
Working pressure:0.22Mpa
Working Temp.:134centigrade

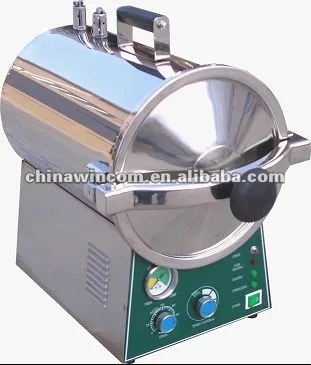

TABLE TOP STEAM STERILIZER TM-T24J
TM-T24J Desktop Fast Pressurized Steam Sterilizer is a mini medical sterilizing device. The sterilizer uses electric heater to heat the pure water, which was put in advance in the sterilization chamber. The pressurized steam generated meets the sterilization requirement and sterilizes the objects needing sterilization. The sterilizer is equipped with a pressure controller which can be preset at within the working pressure range of 0.07Mpa-0.2Mpa(10Psi~30Psi), the temperature could be 115°C~134°C(239°F-274°F). The sterilizer is also equipped with a timer to control the sterilization time. It can be preset at within 0~ 60 minutes according to sterilization requirement, also with the function of drying, and has heater overload protection and sterilization ending buzzer alarm functions.
| Model NO. | TM-T24J |
| Old Model | YXQ.DY.25A-I 25 |
| Sterilizing chamber volume | 25L(Φ270X410mm) |
| Working pressure | 0.22Mpa |
| Working Temp | 134°c |
| Adjustment of Temp. | 105-134°c |
| Timer | 0-60min |
| Sterilizing Plate | 340x200x30mm(3 pieces) |
| Dimension | 560x350x500mm |
Usual package,paper box with foam to keep fixed.
If you have other requirement , we can do as you want,such as wooden box .
Below pictures are just sample as reference.
Warranty time : 1 year
