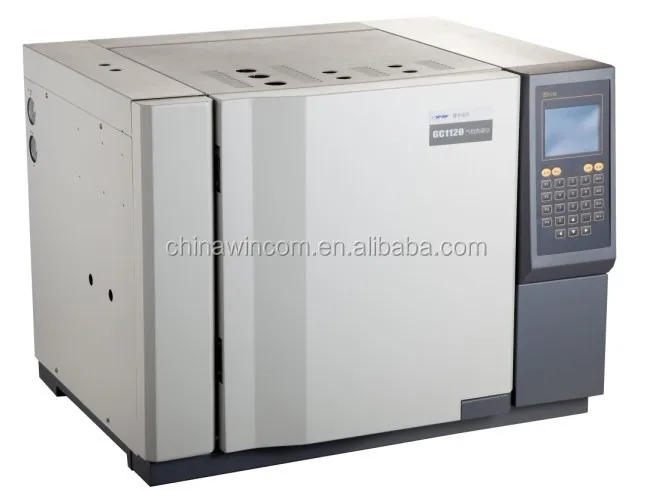

High Reliability Lab Gas Chromatograph with TCD, FID Detectors GC1120 series
ambient temperature +7oC-400oC(increment 1centigrade)
Temperature control accuracy:better than0.1centigrad
| Model | GC1120A (GC+SPL+FID) |
| Model | GC1120B (GC+SPL+PID+2xFID) |
| Model | GC1120C (GC+SPL+2xPIP+2xFID+Software) |
Column oven
Temperature range: ambient temperature +7oC-400oC(increment 1oC)
Temperature control accuracy:better than +0.1oC
Temperature program ramps:5 ramps in total
Program setting:0.1oC-40oC/min(increment 0.1oC)
Maximum run time:655minutes(increment 1min)
Hydrogen Flame ionization detector(FID)
Minimum detectable level:Dt<8x10-12g/s(n-hexadecane)
Drift:<6x10-13A/h
Liner dynamic range:>106
Maximum temperature:400oC
Thermal conductivity detector(TCD)
Sensitivity:S>5000mv.ml/mg(n-hexadecane)
Sensitivity:S>5000mv.ml/mg(n-hexadecane)
iptop Sensitivity:S>10000mv.ml/mg(with amplifying circuit)
Noise:<20uV
Drift:<30uV/h
Linear dynamic range:>104
Maximum temperature:400oC
Flame photometric detector(FPD)
Minimum detectable level: <1x10-11 g/s(P)(Parathion-methyl)
<1x10-10 g/s(S)(Parathion-methyl)
Electron capture detector(ECD)
Minimum detectable level:<1x10-13 g/ml(y-666)
Linear dynamic range:>103
Nitrogen phosphorus detector(NPD)
Minimum detectable level: <5x10-12g/s(N)(Diphenyl-Diazene)
<5x10-13g/s(P)(Malathion)
Instrument operational requirement
Power source:220V- +22V 50HZ+0.5HZ
Power:<2000Vv
Ambient temperature:+5oC- +35oC
Relative Humidity:<85%
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality
products.We have 20 years exporting experience ,and established business relationship with 50
countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
1. Q: How long is the warranty time?
A: 12 Months
2. Q: What is the payment method?
A: Westunion, TT, Moneygram, Payapl, L/C etc.
3. Q: When do you delivery?
A: Usually in 7-30 days.
4. Q: Could you offer intallation or tranning oversea?
A: Yes, we offer the service for complex machine in charge.
5. Q: It is my 1st time purchase products oversea, how to promise its safe?
A: We are vertified company by Alibaba, and we attend many Intl.Fair every year.
Welcome to visit our shop and company.
