Home > Products > TFE9184 Explosion proof led flood light

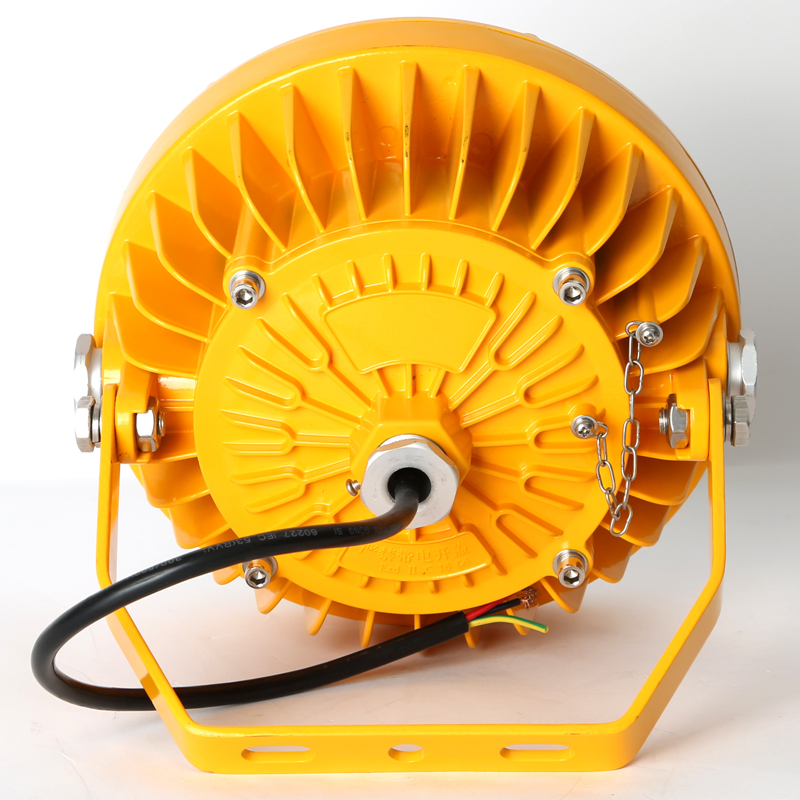

TFE9184 Explosion proof led flood light

Click on the image to view the original image

Product：	views：10TFE9184 Explosion proof led flood light
Branch：	GT
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:15

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Power(W):: 30

CRI (Ra>):: 85

Lamp Luminous Flux(lm):: 4800

IP Rating:: IP65

Working Lifetime(Hour):: 100000

Certification:: BV, CE, FCC, RoHS, UL

Place of Origin:: Zhejiang, China

Brand Name:: GT

Light Source:: LED, 16pcs LED

light source:: LED 20-50W

Rated voltage:: AC85-265V/50Hz

Base Type:: 2 Pin Wires

Insulation grade:: I

explosion proof led flood light Ex mark:: Exd IIC T6

Color Temperature:: 5500K

Dimension:: Dia228*177mm

explosion proof led flood light Weight:: 5.8kg

Power Factor:: >0.98

Product Certification Verified

CE Certified.: Valid from 2018-03-06 until 2023-03-05

FCC Certified.: Valid from 2018-02-02 until 2049-12-31

RoHS Certified.: Valid from 2018-02-02 until 2049-12-31

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Carton

Port: Shanghai/Ningbo

Product Description

Application:

Fixed lighting for chemical, oil field, transfer station, inner field pump room, union station, distribution room, operation room, duty room, measurement room and other inflammable and explosive places.

Description:

1. Designed and manufactured in accordance with the requirements of explosion-proof structure. Can work safely in various flammable and explosive places.

2. International top brand LED light source, Low energy consumption, high light efficiency, power consumption is only 20% of Incandescent light with same luminous flux. Energy conservation and environmental protection.

3. Casing adopts aluminum die-casting molding and the most advanced surface electrostatic spraying technology. The exterior fasteners are made of 304 stainless steel.Sealing elements adopt silicone material,corrosion proof,water proof and dust proof.Float toughened glass transparent cover, special diffuse reflection anti-glare design, light transmittance over 96%.

4. The light source cavity, power cavity and connection cavity are designed with separation structure. Can effectively improve the heat dissipation performance and prolong lifetime of light source.

5. Light source components, light distribution components, power modules are all designed and assembled by standard modules, Easier to replace and lower maintenance cost.

6. Adopt ceiling type, wall type, guardrail type and other installation methods; Small volume, light weight, indirect cable introduction, easy installation and wiring.

Technical Parameters:

Item		Unit	Parameter
input power	Rated voltage	V	AC100-260
	rated frequency	Hz	47-63
light source	brand	OSR	20/30LED
	power	W	50-100W Matching
Luminous flux		Lm	8000-14400
Light Source Life		h	100000
Color Temperature		K	5500
Power factor		%	>0.98
Luminaire efficiency			>92
Space-depth ratio		S/h	3.6
Proofing grade		G	3/4
Lamp Size		mm	Φ228*177
Lamp Weight		Kg	6.5
lead-in cable		mm	Φ8-12
Protection grade		GB	IP65
Anti-corrosion grade		GB	WF2
Insulation grade		GB	Ⅰ
Ex-mark		GB	ExdⅡCT6
