IP65 27W rechargeable led flood light ,led floodlight outdoor
|
WA led flood light rechargeable

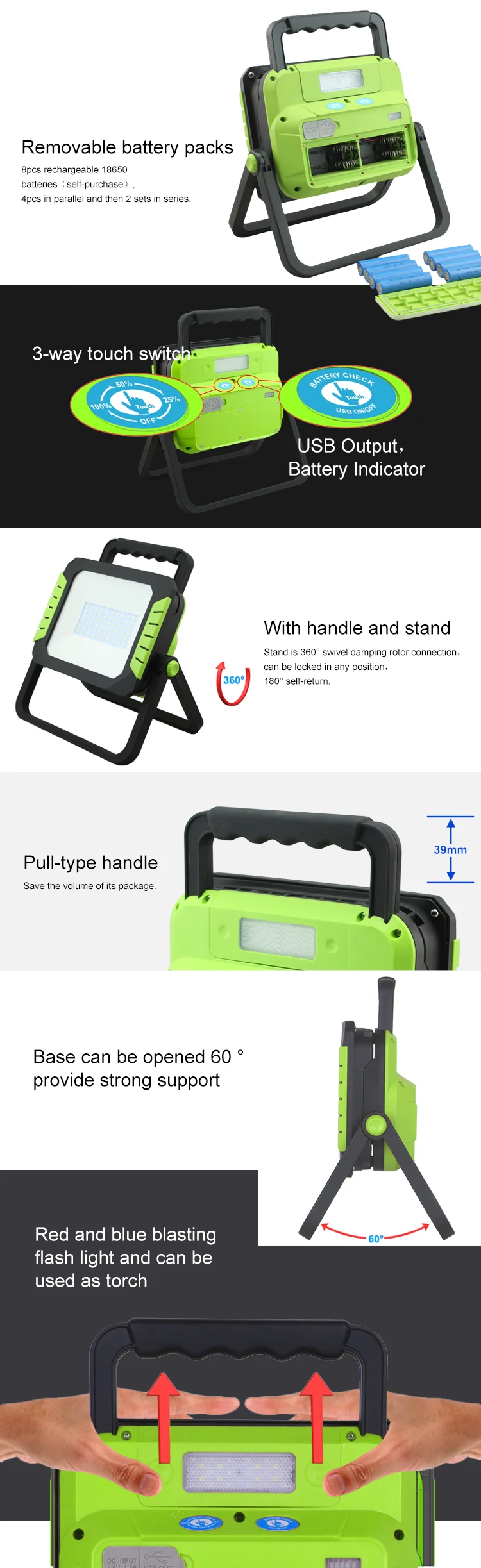

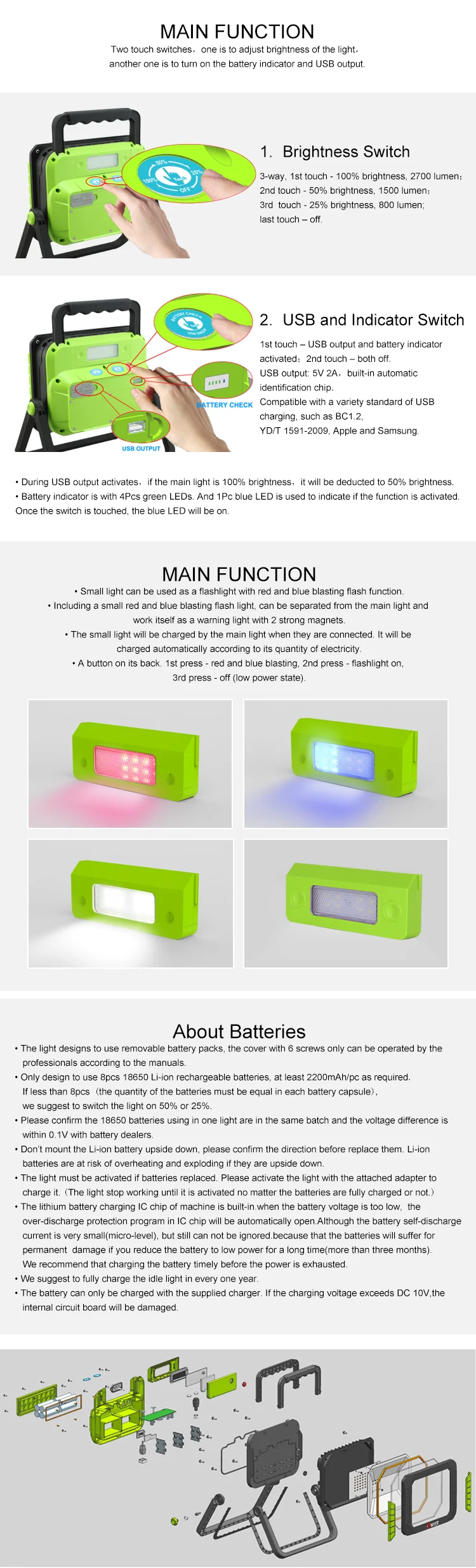

• 360° rotatable stand ,can be locked in any position,180° self-return • Adjustable brightness(100% 50% 25% brightness) • Small light can be used as a flashlight with red and blue blasting flash function • Phone charging is available • Pull-type handle,save the volume of its package
|
Product specification parameters:

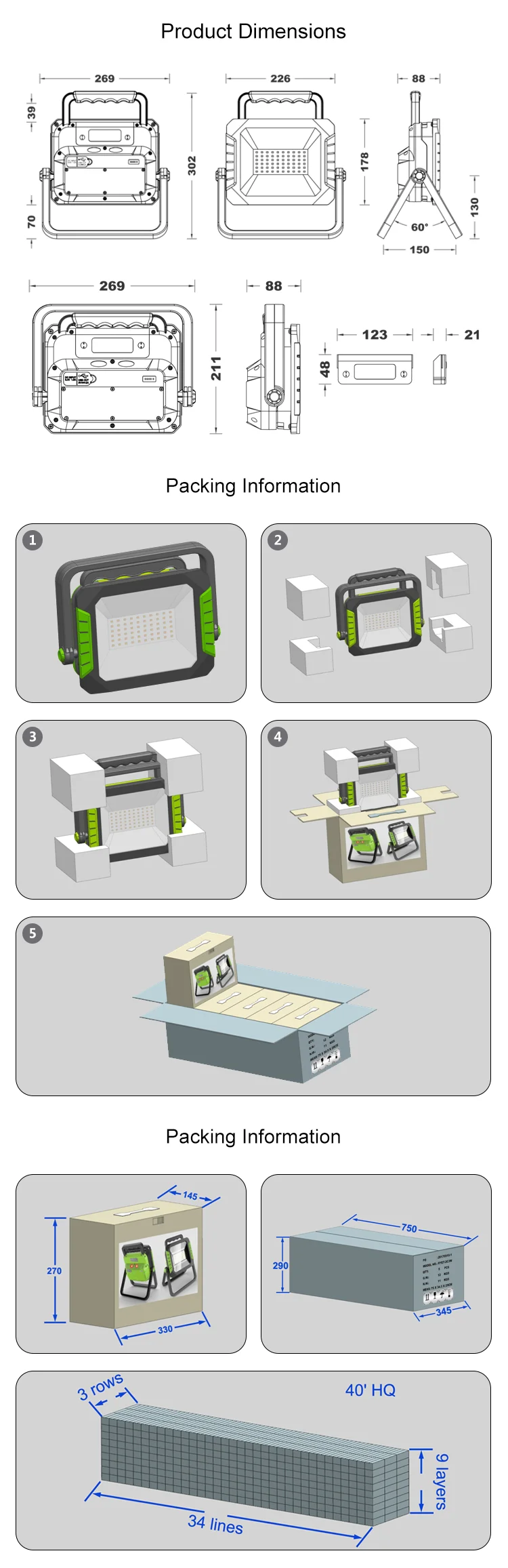

| Product size | Unit weight | Material | Product color | LED Chips | Two Touch switches |
269*302*160mm (Fully expanded) | 2.12Kg | Cover-glass; Body-plastic; heat sink-Aluminum 6063 | Green & Black or Red & Black | 2835 SMD 60PCS | Two Touch switches |
| AC-DC Charger | Battery | Temperature | Humidity | IP rating | Charging time |
| Input AC100-240V 50/60Hz Output DC8.4V 1.5A | Li-ion 18650 3.7V 2200mAh 4 or 6 or 8pcs (self-purchase) | Working --- -20ºC~+45ºC; Store --- -30ºC~+60ºC | working --- 10%~75%; store --- 10%~90% | IP44 | About 8.5 hours, (MAX:9.5 hours) |
Electrical parameters requirements:
Test conditions:Working in Lighting up after 15 minutes.
| Project name | Unit | Minimum | Typical | Maximum | Remarks |
| Battery full voltage | V | 4.2 | 4.25 | Single | |
| Battery Cut-off voltage | V | 2.8 | 2.9 | 2.95 | LIGHT OFF |
| Driver to LED | mA | 175mA@25% | 350mA@50% | 700mA@100% | LED module About 31V |
| Color temperature | K | 2700 | 6000 | 7200 | |
| CRI | Ra | 80 | 80.5 | 81 | |
| Luminous Flux | Lm | 800@25% | 1500@50% | 2700@100% | |
| Beam angle | ° | 105 | 118 | 120 | |
| SDCM | <6 | ||||
Run time:(based on 8Pcs 18650 Li-ion, 3.7V 2200mAh/pc)
Power dissipation: | |||||
| Packing size (Cm) | inner box | 33*14.5*27 | QTY. | inner box | 1Pcs |
| master carton | 75*34.5*29 | master carton | 5Pcs | ||
| N.W./G.W. (Kg) | 10.5/11.5 | 40" HQ | 4950Pcs | ||
Application
Rechargeable floodlight can be used in many interesting places.
1.Electrocircuit servicing in dark
2.Clamping
3.Outdoor sport,basketball and football
4.Driving
5.Emergency lighting
6.Fishing
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting and out-door lighting. (Led panel Light, Led flood Light, Led celling Light etc. )
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
