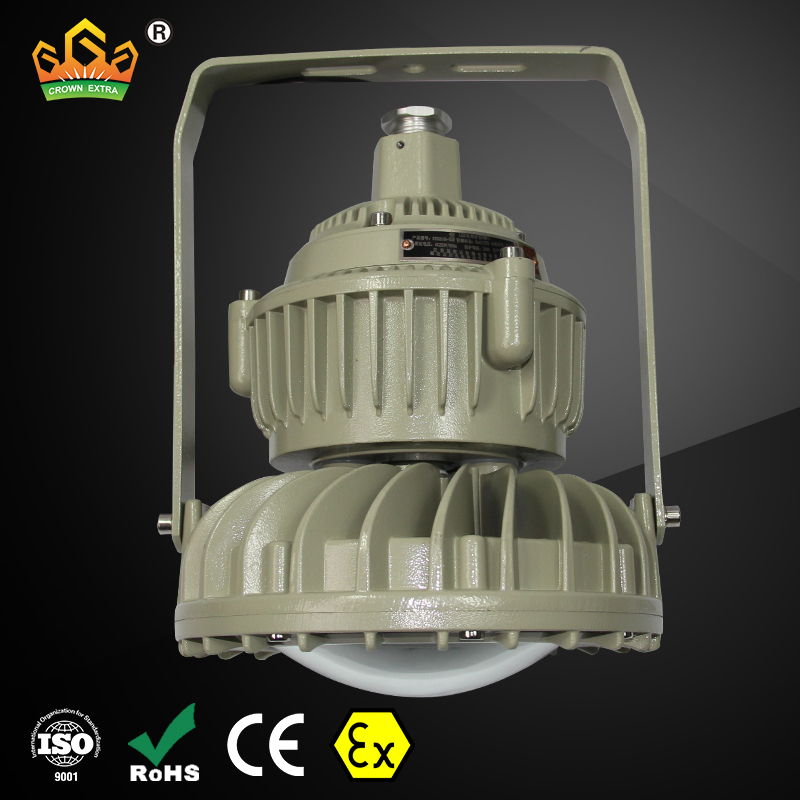

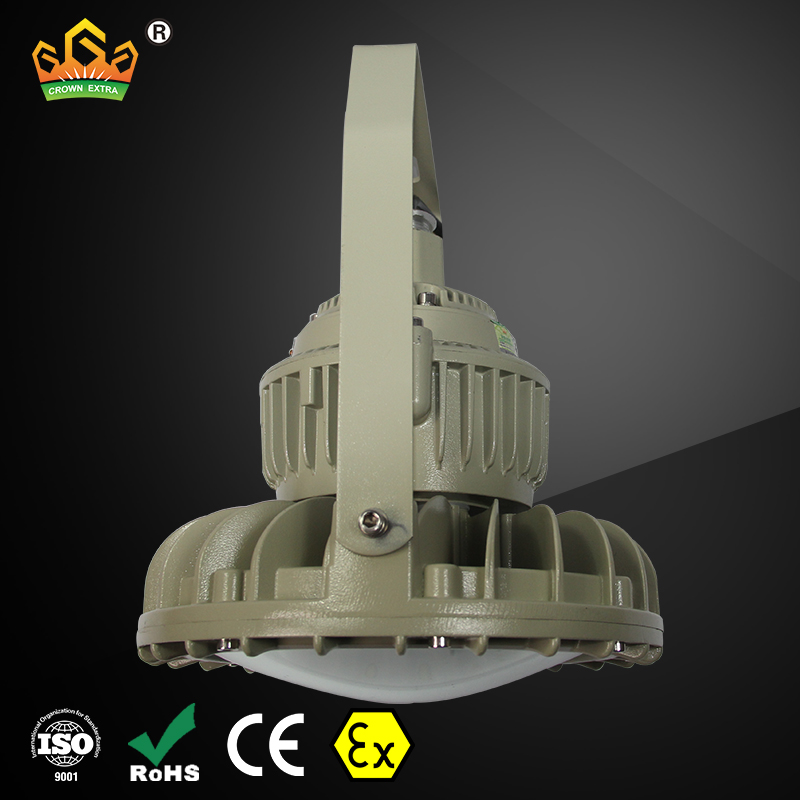

explosion proof atex class 1 division 1 division 2 ex led high bay pendant light fixtures manufactures
Click on the image to view the original image
Product： views：7explosion proof atex class 1 division 1 division 2 ex led high bay pendant light fixtures manufactures
Branch： Crown Extra
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:28
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC 110-240V (50-60Hz)
Lamp Power(W):
120
CRI (Ra>):
70
Lamp Luminous Flux(lm):
11000
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-20 - 60
Emitting Color:
Cold White
Certification:
CCC, CE, RoHS
Place of Origin:
Jiangsu, China
Base Type:
Led Chip
Brand Name:
Crown Extra
Light Source:
LED
Features:
Explosion proof
Power range:
30-240W
Ex-mark:
Ex demb IICT6
Corrosion-proof grade:
WF1
IP grade:
IP65/IP66
Housing material:
Aluminum alloy
Surface glass:
Tempered glass
Warranty:
5 year
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
Cree XTE
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
500 Set/Sets per Day
Packaging & Delivery
Packaging Details
Cartoon Packing, Strong foam protection.
Port
Shanghai, Ningbo, Shenzhen, any port easy to transfer
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)7To be negotiated
Application

Flammable Gas

Hydrogen, etc.

Flammable Liquids/Vapors

Hydrocarbons such as ether, acetone, lighter fluids, etc.

Flammable Solids

Dust, fiber, and flyings

Branch
Explosion Hazard
Branch
Explosion Hazard
Chemical Industry
Flammable Gases/Liquids/Solids
Paint-spraying
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Landfills
Civil Engineering
Flammable Landfill Gases
Uncontrolled Gas Emissions
Flammable Gas from poor ventillation sources
Agriculture
Bio-gas Production Plants
Bio-gas Located on Farms
Power Generation
Lump Coal Dust
Metal-work
Explosive Metal Dust
Spark-ignitable Metal Dust
Waste Disposal
Waste-water Treatment Gasses
Food/Beverage
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Gas Suppliers
Natural Gas Leagage
Natural Gas Emissions
Pharmaceutical
Alcohol Solvents
Materials explosive when mixed
Woodworking Industry
Saw Dust
Fine Wood Chips
Refinery
Hydorocarbons close to their flash-points
Oil Processing Plants

That"s when you need an explosion proof light

If there are such flammable substances exist in your location.

explosion proof atex class 1 division 1 division 2 ex led high bay pendant light fixtures manufactures

Technical Data
Name
Explosion Proof LED Lighting
Type
GYD2106
Protection
EEx d e mb IIC T6 2GD, IP66
Classification
Zone  1, 2 & Zone 21, 22
Input Voltage
100-240VAC, 50/60 Hz
Power Supply
20-50Watt
Efficacy
100-130 Lm/W, LED itself 145-160Lm/W
Beam Angle
110°/120°
Certificate
CE/RoHS/ATEX/CNEX
Mounting
Street, Ceiling, Pedant, Stanchion
Warranty
5-year

GYD97 LED EXPLOSION PROOF LIGHT SERIES

GYD2106
GYD2107
GYD2108
GYD2109
20-50Watt
60-90Watt
100-150Watt
180-250Watt
18 CREE XTE CHIPS
30 CREE XTE CHIPS
50 CREE XTE CHIPS
60/100 CREE XTE CHIPS
4.5 kg(9.9 lb)
5 kg (11 lb)
9.1 kg (20 lb)
9.5 kg (21 lb)
210mm*250mm
260mm*270mm
360mm*300mm
360mm*300mm
Related Products
Details
Accessory
Material what we use
Performance
Thick Aluminium Housing
Dense radiator, AlSi12
Good strength and heat dissipation
Epoxy powder coated
Light grey RAL7035
Corrosion Resistant
Transparent
Tempered Glass 10 mm thick
High transimittance
Heat conductive grease
Low sulfide, overspread enclosure
Good Heat dissipation
Fasteners
Stainless steel
Corrosion Resistant
Sealing ring
Silicon rubber
Water proof, ageing resistant
Reflector
Nanometer
2% light loss (Normal one is for 10-12%)
LED chips
USA CREE XTE
Cree"s chip is encapsulated by their own factory
PCB Board
Superconducting 2.0
Excellent heat dissipation
IP67 Isolated Driver
Short-circuit, over-voltage, over-temperature  protection
Water proof, stable performance
Installation
Guide of selection

Step 1

What"s the explosive dangers presented in your location? - Dust or Gas

How often the flammable substances be presented? - Zone 0,1, 2 or Zone 20, 21, 22

What"s the ignition temperature? -85/100/135/200/300/450 ℃


Step 2

Choose the available explosion proof type of the explosion proof lighting.

Step 3

What"s the illumination area, installation height, the brightness requirement? - Specify the total lumen, the light beam angle

What"s the mounting type? - Street, Ceiling, Pendant or Stanchion

What"s appearance? - Round or Square?

Company
FAQ

Payment Terms

1.T/T, PayPal, Cash, Western union.
2.30% at order, balance before the shipment.
3.Customized sample order requires 100% prepaid.

Shipping Terms

1.Small order is delivered by express, TNT, DHL, FedEx, UPS, EMS etc.
2.Big order by Air or sea Delivery.

3.Carton or Wooden box packing.

Others

1. OEM & ODM are available.

2. Warranty: 3-5 Year

3. No MOQ

4. Lead time: 3-7 days
