Home > Products > Mini Red 2.54 MM Right Angle 8 Pin Dip Switch

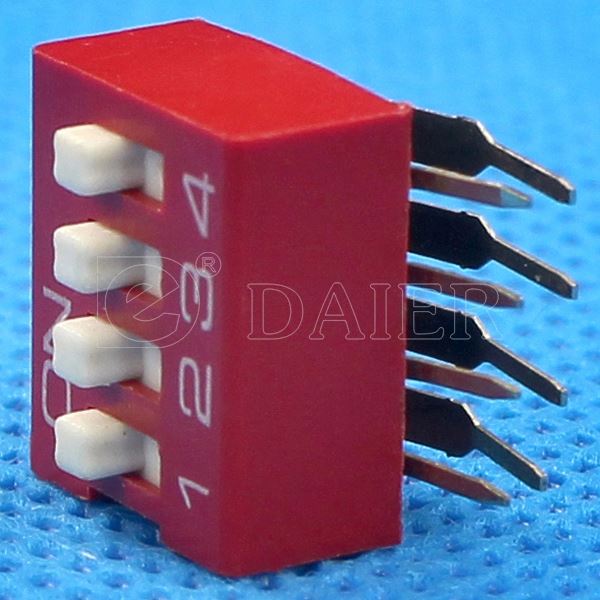

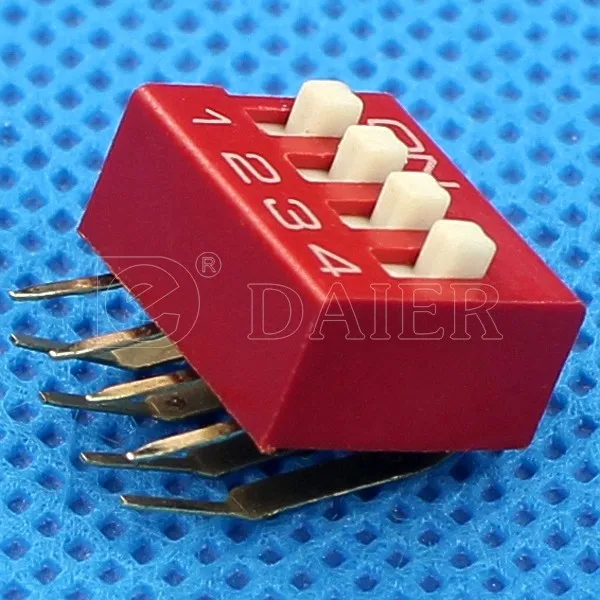

Mini Red 2.54 MM Right Angle 8 Pin Dip Switch
Click on the image to view the original image
Product： views：3Mini Red 2.54 MM Right Angle 8 Pin Dip Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
DA Series
Max. Current:
0.1A
Max. Voltage:
50VDC
Item:
Mini Red 2.54 MM Right Angle 8 Pin Dip Switch
Rating:
0.1A 50VDC
Model:
Right Angle Type
Housing Color:
Red/Blue
Terminal Material:
Brass With Gold Plated
Position:
2/3/4/5/6/7/8/10/12 Position
Operation Force:
8N Max
Package:
Tube
Free Sample:
Available
Electrical Life:
2,000 Cycles Per Switch

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
50X5X5 cm
Gross weight per batch:
0.5 kg
Package Type:

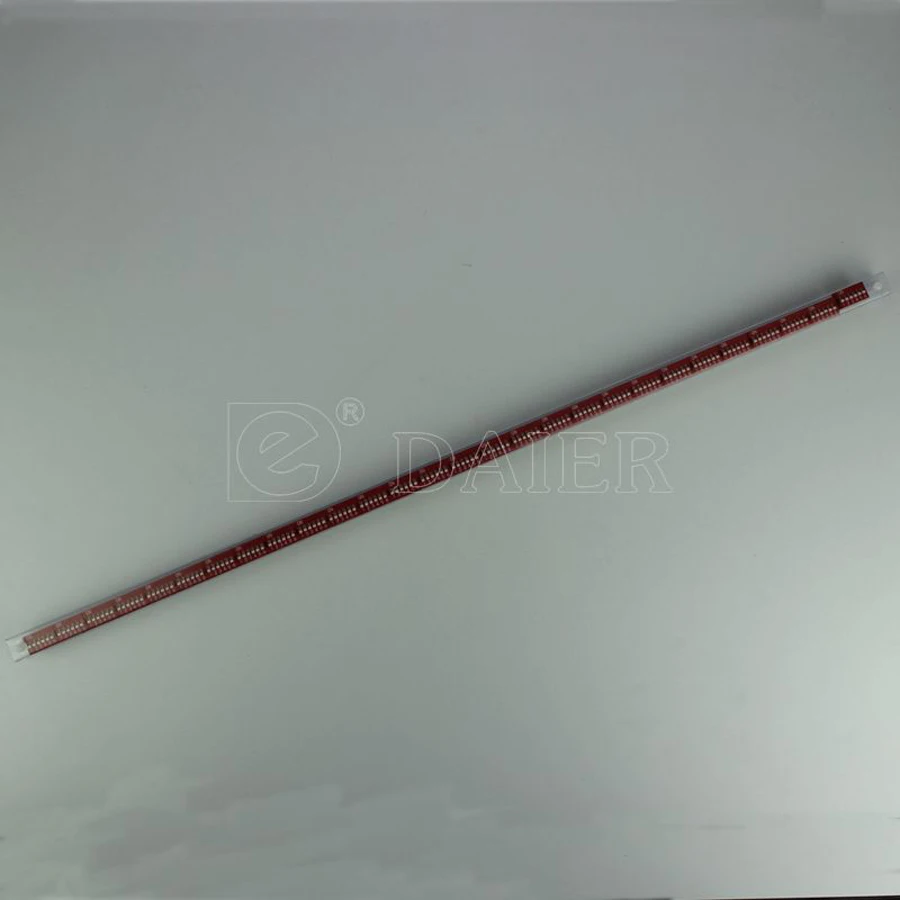

100Pcs A Tube Bag Of Mini Red 2.54 MM Right Angle 8 Pin Dip Switch
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Item
Mini Red 2.54 MM Right Angle 8 Pin Dip Switch
Rating
0.1A  50VDC
Contact Resistance
500mΩ Max
Dielectric strength
500VAC 1 minute
Mechanical Life
≥ 100,000 Cycles
Insulation Resistance
100mΩ min (500VDC)
Operating Temperature
-25℃~+85℃  right angle 8 pin dip switch

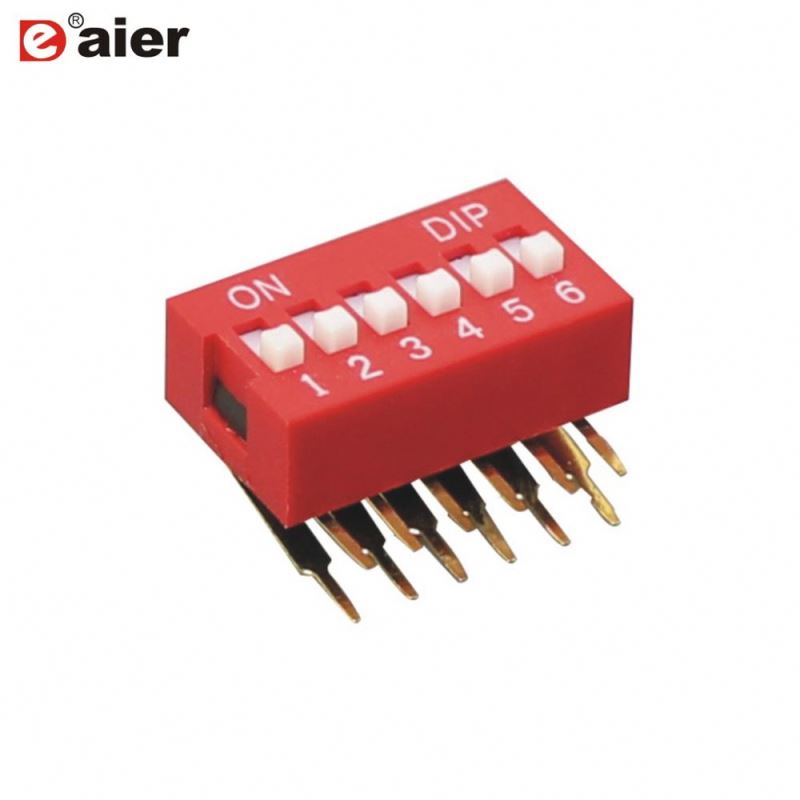

Product Show


Daier series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. Daier DIP switches are available in surface mount, through-hole, right angle and vertical mounting options.

Most Daier miniature and ultraminiature DIP switches are process sealed for automated assembly (some require tape seal) and are available in SMT and thru-hole termination.


Our large selection includes surface mount, through-hole, rotary, standard and half pitch, and multiple actuator designs. Consistent high contact pressure is achieved with a spring and ball contact system on select series. Other features include a low-profile, miniature versions, standard base seal, optional top-tape seal and also tape and reel packaging. Our DIP switch can be customized for your specific application.
