Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- RBS-1-20VS
- Max. Current:
- 0.5A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item:
- 0.3A 2 Pole 6 Position Metal Momentary Rotary Switch
- Rating:
- 0.5A 125VAC / 0.3A 250VAC
- Material:
- Metal
- Housing Color:
- Sliver
- Terminal:
- Solder Terminal
- Pole:
- 1/2/3/4/6 Pole
- Position:
- 2/3/4/6/12 Position
- Shaft Length:
- 15/20/25/40 MM
- Electrical Life:
- 100,000Cycles
- Free Sample:
- Available
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X16X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:

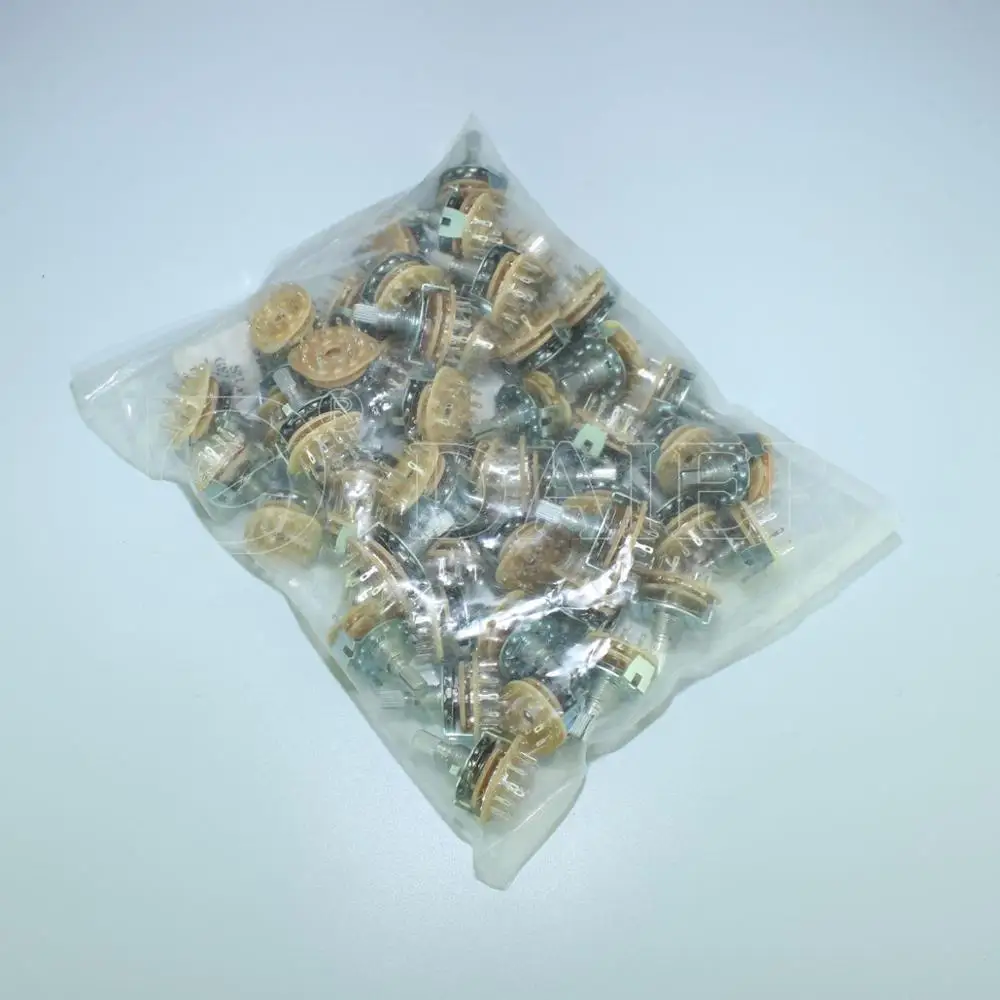

- 50Pcs A Plastic Bag Of 0.3A 2 Pole 6 Position Metal Momentary Rotary Switch
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 7 To be negotiated
Product Description
Product Show

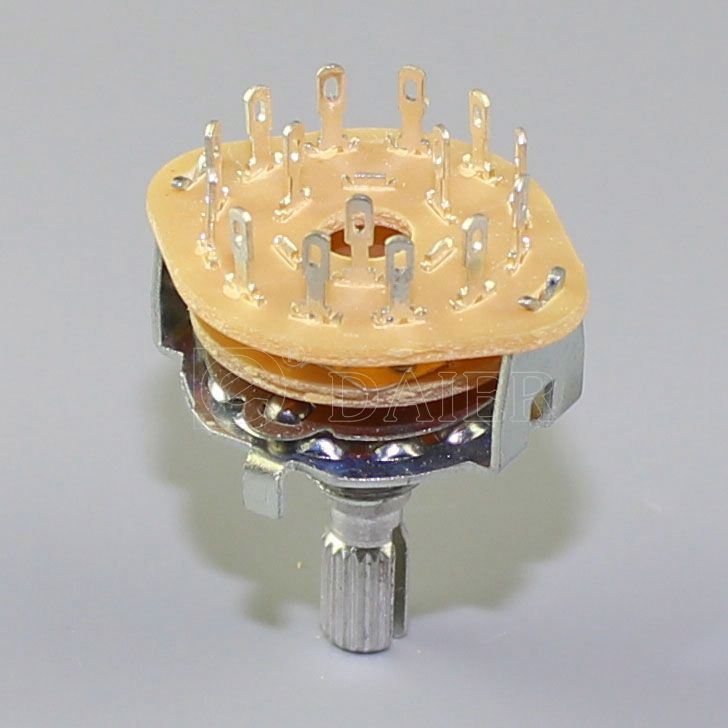

RBS-1-304-20VS:
This is our RBS-1 rotary switch.
They can be made with PCB terminal or solder terminal.
They also can be made with different poles and different positions.
It is most popular used in audio equipment.
Many of our rotary switches are MIL qualified to exacting electrical, mechanical and environmental standards. We offer many options including isolated positions, spring returns, adjustable stops, concentric shaft switches and configurable keylock switches. Standard rotaries can be configured with solder lug termination, PC termination, various angles of throw and multiple poles.
