Home > Products > T85 5Pin 4 Position Plastic Rotary Switch Potentiometer 5K

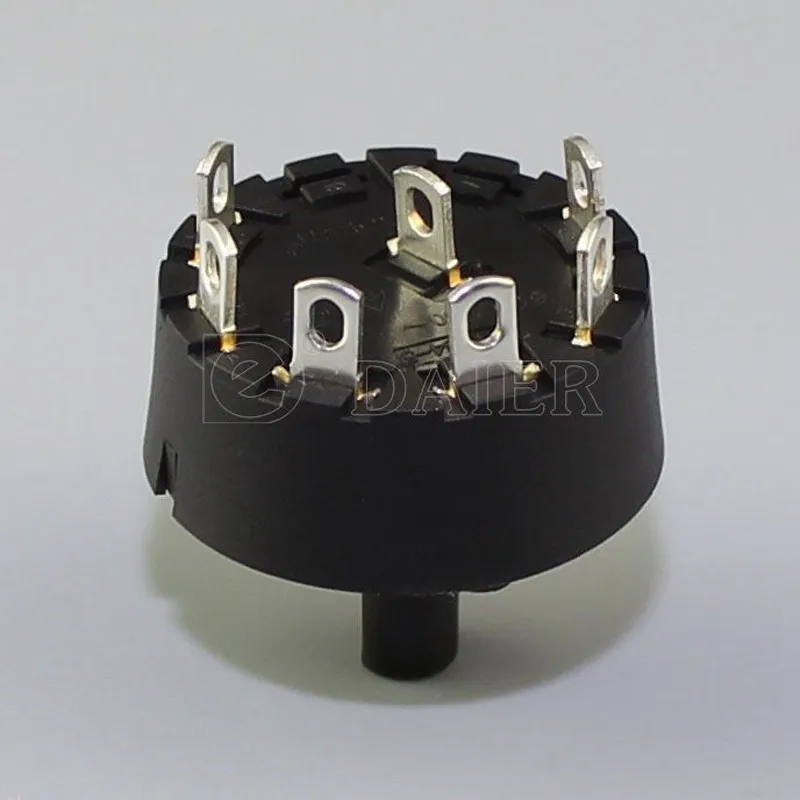

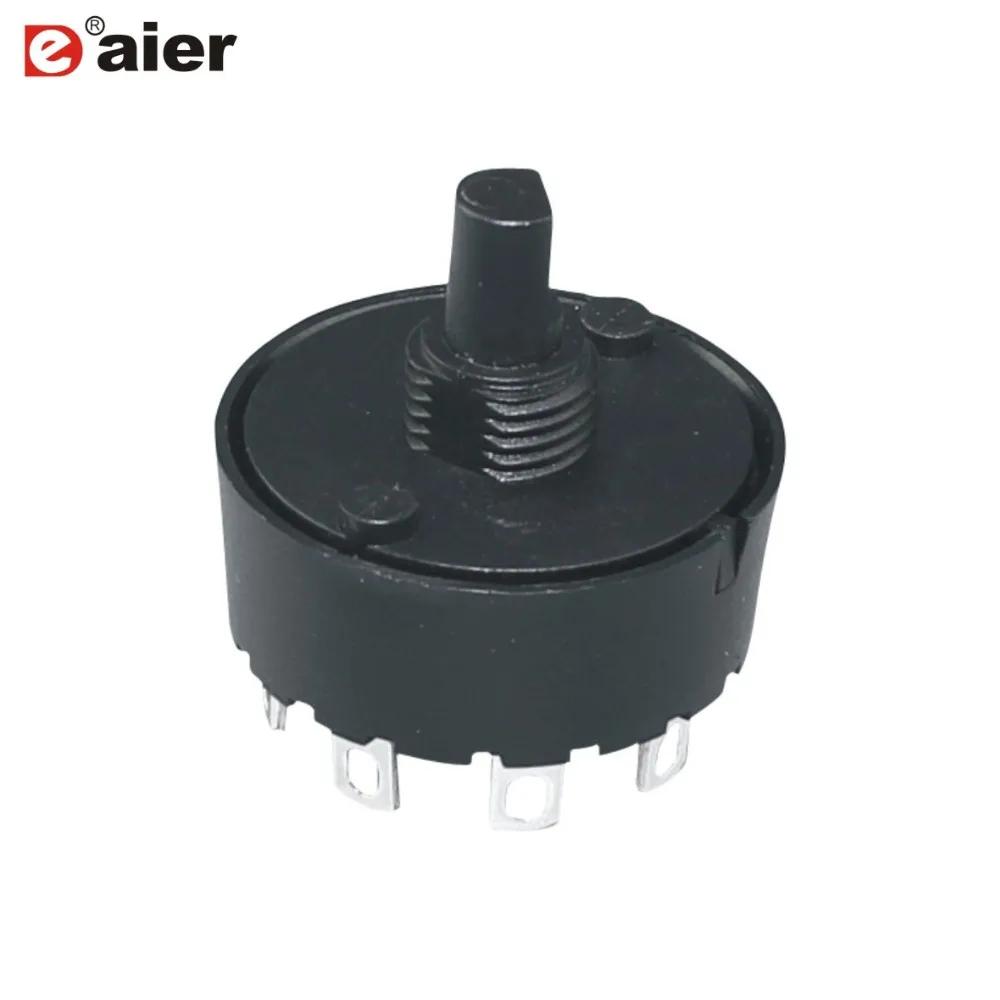

T85 5Pin 4 Position Plastic Rotary Switch Potentiometer 5K
Click on the image to view the original image
Product： views：2T85 5Pin 4 Position Plastic Rotary Switch Potentiometer 5K
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
RT634
Max. Current:
6A
Max. Voltage:
250VAC
Mechanical Life:
10000 Cycles
Item:
T85 5Pin 4 Position Plastic Rotary Switch Potentiometer 5K
Rating:
6A 250VAC
Material:
Plastic
Housing Color:
Black
Terminal:
Solder Terminal
Pin:
3/4/5/6/7/8/9 Pin
Type Of Shaft:
Flat Shaft
Position:
2/3/4/5/6/7/8 Position
Electrical Life:
100,000Cycles
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
30X20X15 cm
Gross weight per batch:
5.0 kg
Package Type:
500Pcs A Plastic Bag Of T85 5Pin 4 Position Plastic Rotary Switch Potentiometer 5K
Lead Time:
Quantity(Piece)1 - 2500>2500
Est. Time(days)7To be negotiated
Product Description
Item
T85 5Pin 4 Position Plastic Rotary Switch Potentiometer 5K
Rating
6A 250VAC
Contact resistance
20MΩ Max
Insulation resistance
500VDC 100MΩ min
Dielectric Strength
1 Minute 1000VAC
OEM or ODM
Available
Operating Temperature
-25℃~+85℃  rotary switch potentiometer 5k
Product Show

RT634:


They also can be made with different poles and different positions.

It is most popular used in audio equipment.


Many of our rotary switches are MIL qualified to exacting electrical, mechanical and environmental standards. We offer many options including isolated positions, spring returns, adjustable stops, concentric shaft switches and configurable keylock switches. Standard rotaries can be configured with solder lug termination, PC termination, various angles of throw and multiple poles.
