Home > Products > 24A 30VDC Fully Insulated Stackable 4MM Male Nakamichi Banana Plug

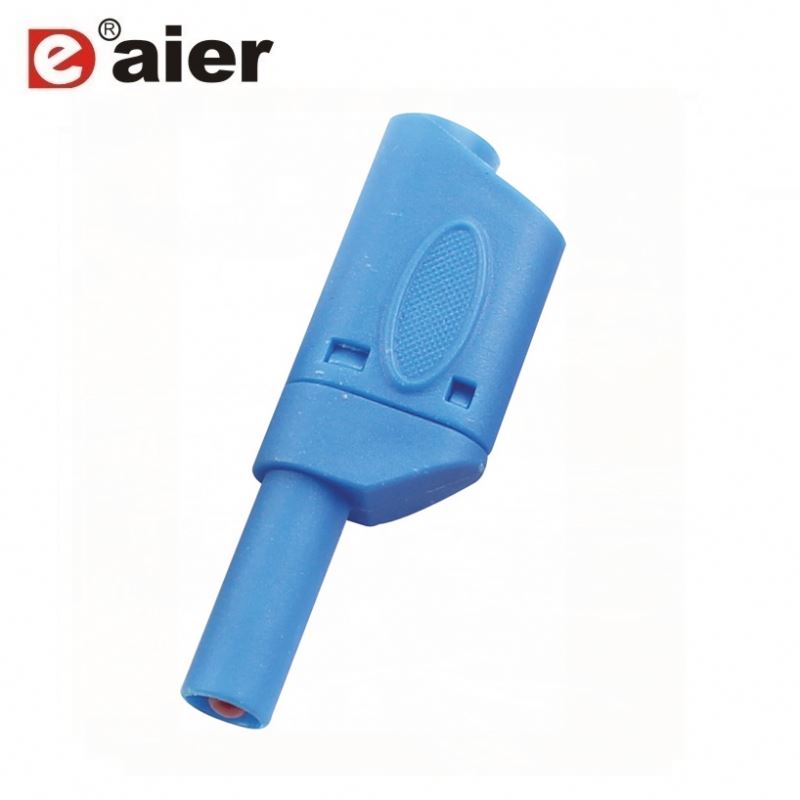

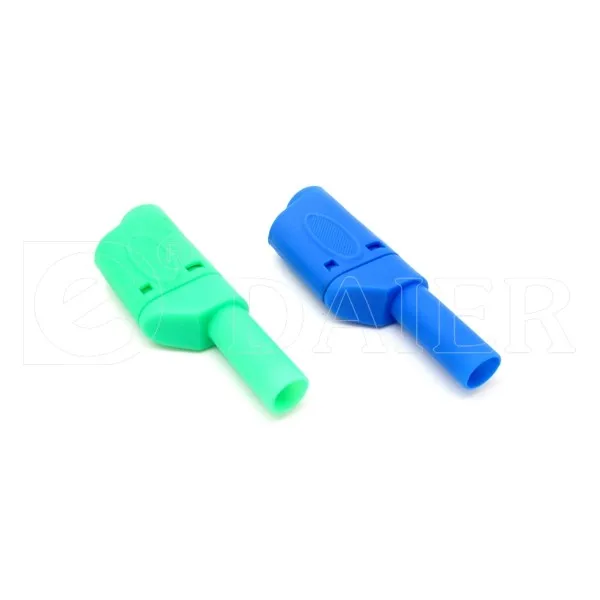

24A 30VDC Fully Insulated Stackable 4MM Male Nakamichi Banana Plug
Click on the image to view the original image
Product： views：224A 30VDC Fully Insulated Stackable 4MM Male Nakamichi Banana Plug
Branch： Daier
Type： Banana Socket
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
CX-2074
Type:
Banana Socket
Application:
Audio & Video
Gender:
Male
Item:
24A 30VDC Fully Insulated Stackable 4MM Male Nakamichi Banana Plug
Rated Current:
24A
Rated Voltage:
30VDC
Material:
Brass
Housing Color:
Yellow / Red / Green / Blue / Black
InsulatIon:
PA
Plug Diameter:
4mm
Plating:
Nickel Plated
Connector Mounting:
Cable Mount
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X18X10 cm
Gross weight per batch:
0.8 kg
Package Type:
100Pcs A Box Of 24A 30VDC Fully Insulated Stackable 4MM Male Nakamichi Banana Plug
Lead Time:
Quantity(Piece)1 - 100>100
Est. Time(days)7To be negotiated
Product Description
Item
24A 30VDC Fully Insulated Stackable 4MM Male Nakamichi Banana Plug
Current rating
24A
Voltage rating
30VDC
Contact Plating
Nickel Plated
Diameter
4mm
Connector Mounting
Cable Mount   4mm male nakamichi banana plug
Contact Termination type
Screw
OEM or ODM
Available
Product Show

Banana plugs, jacks and binding posts have become the connection of choice at almost all levels of audio. The relative ease of termination and the time tested reliability of the connector provide one of the best solutions for audio professionals and enthusiasts alike.


These banana plugs accept a wide range of wire diameters to suite the needs of your system. A small screwdriver is the only extra tool you need for terminating the wires; no crimping and no soldering. Color coded vinyl insulators made of highly conductive brass, slide easily over the connector and are long enough to provide added protection from accidental short circuits when pulled up to the mating jack surface. Includes connectors and insulators to create equal pairs of plugs.


Daier"s banana sockets accept all industry-standard banana plugs and are available in international colors
