Home > Products > 5MM 30A Screw Type High Voltage Brass Electrical Binding Post Terminal
5MM 30A Screw Type High Voltage Brass Electrical Binding Post Terminal
Click on the image to view the original image
Product： views：25MM 30A Screw Type High Voltage Brass Electrical Binding Post Terminal
Branch： Daier
Type： Binding Post
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:12
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
JS-2019
Type:
Binding Post
Application:
Audio & Video
Gender:
Male
Item:
5MM 30A Screw Type High Voltage Brass Electrical Binding Post Terminal
Rated Current:
30A
Rated Voltage:
30VAC-60VAC
Material:
Brass
Housing Color:
Black / Red / Yellow / Blue / Green
Insulation Material:
ABS
Plug Diameter:
5mm
Plating:
Nickle Plated
Connector Type:
Plug-in or Solder
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X28X15 cm
Gross weight per batch:
1.7 kg
Package Type:
100Pcs A Box Of 5MM 30A Screw Type High Voltage Brass Electrical Binding Post Terminal
Lead Time:
Quantity(Piece)1 - 100>100
Est. Time(days)7To be negotiated
Product Description
Item
5MM 30A Screw Type High Voltage Brass Electrical Binding Post Terminal
Current rating
30A
Voltage rating
30VAC-60VAC
Surface coating
Plate with Nickle
Insulation material
ABS
Diameter
5mm
OEM or ODM
Available  electrical binding post terminal

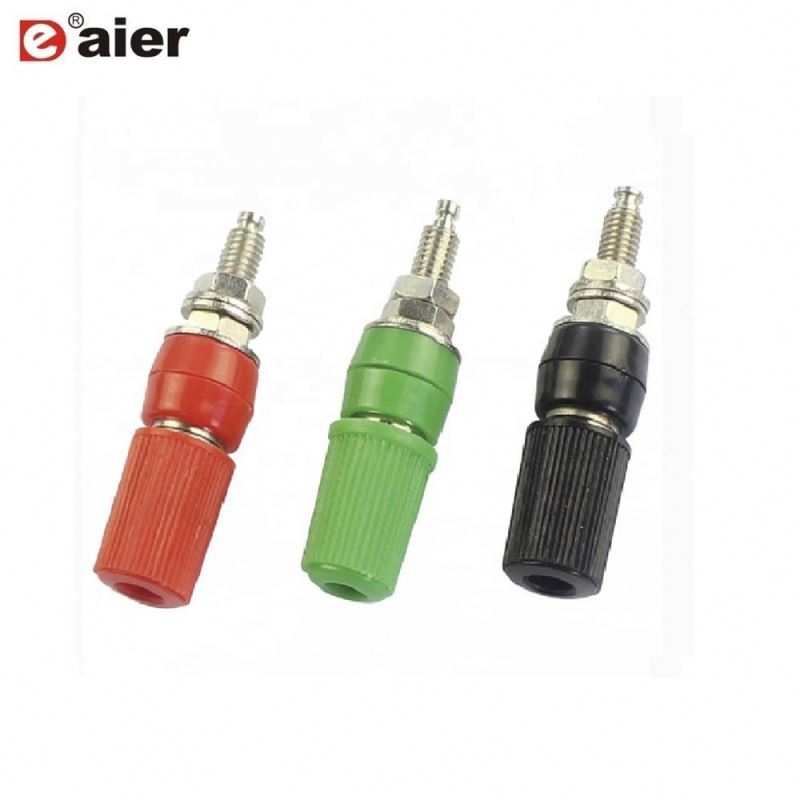

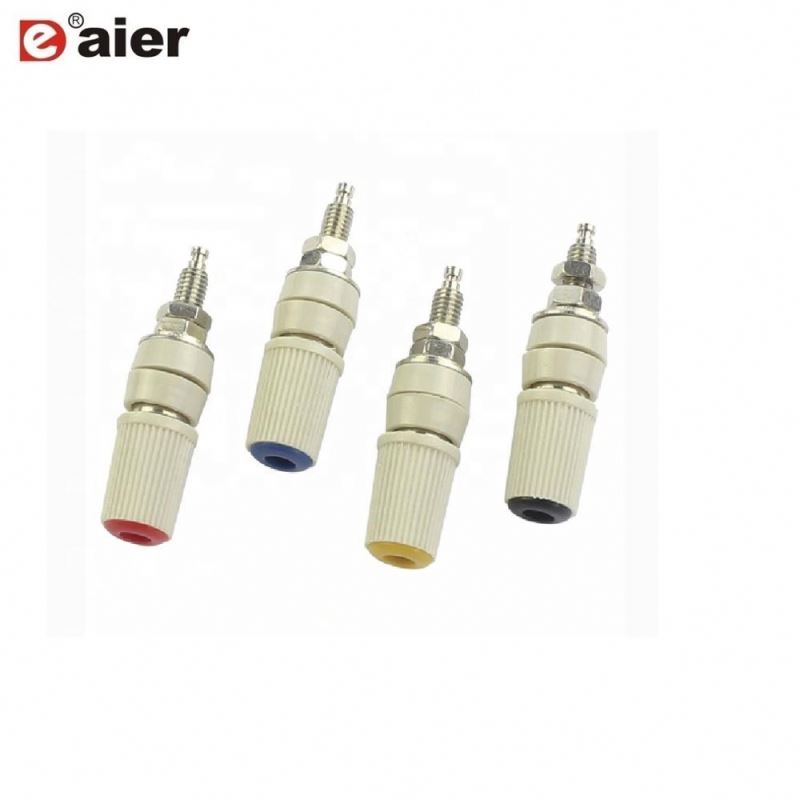

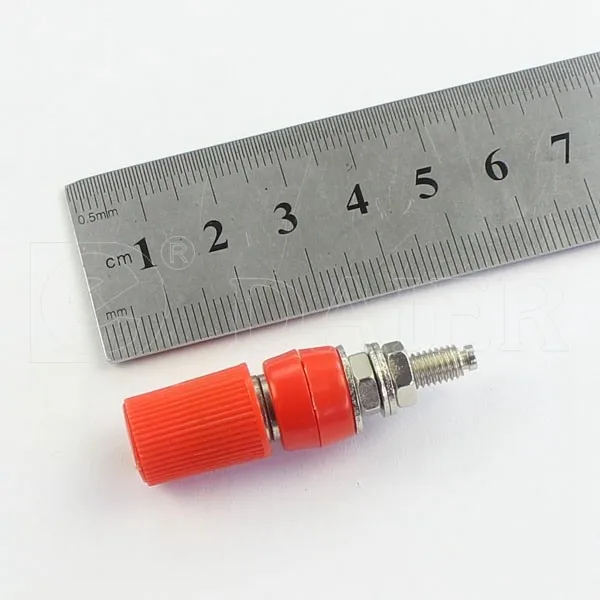

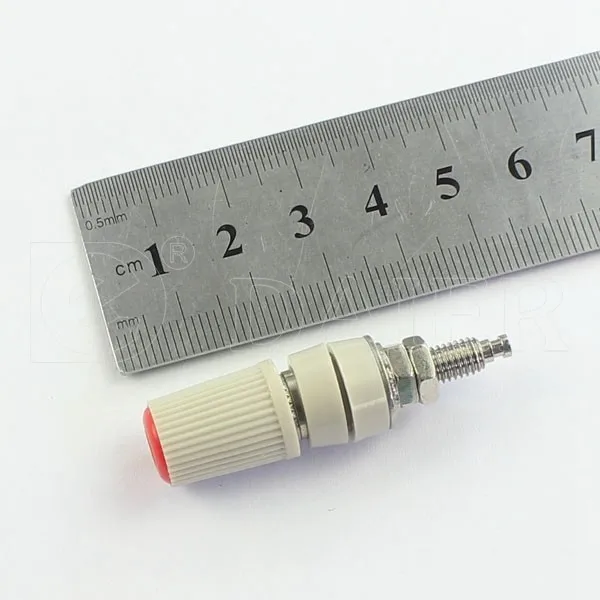

Product Show

A binding post is a connector commonly used on electronic test equipment to terminate attach a single wire or test lead. They are also found on loudspeakers and audio amplifiers as well as other electrical equipment.


A binding post contains a central threaded metal rod and a cap that screws down on that rod. The cap is commonly insulated with plastic and color-coded: red commonly means an active or positive terminal; black indicates an inactive (reference or return) or negative terminal; and green indicates an earth (ground) terminal.


Binding posts stand the test of time for good reason. They"re versatile, reliable, and easy to use. That"s why they"re ubiquitous in speakers, amps, test equipment, and electronics in general. With our vast selection of styles, sizes, and finishes, you"re sure to find the binding posts you need for your next project or repair!


Daier binding posts are designed to prevent accidental contact with current carrying parts. They feature a "limited opening" captivated head to insure safety.
