Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:

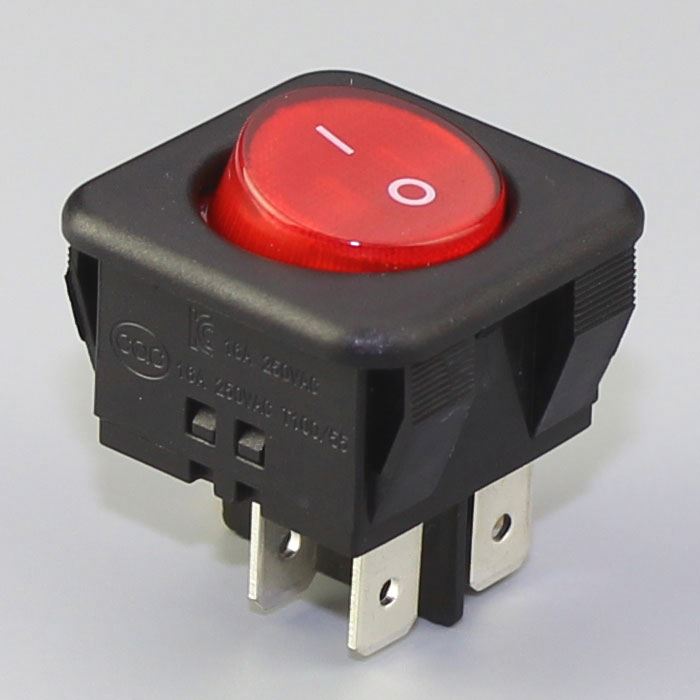

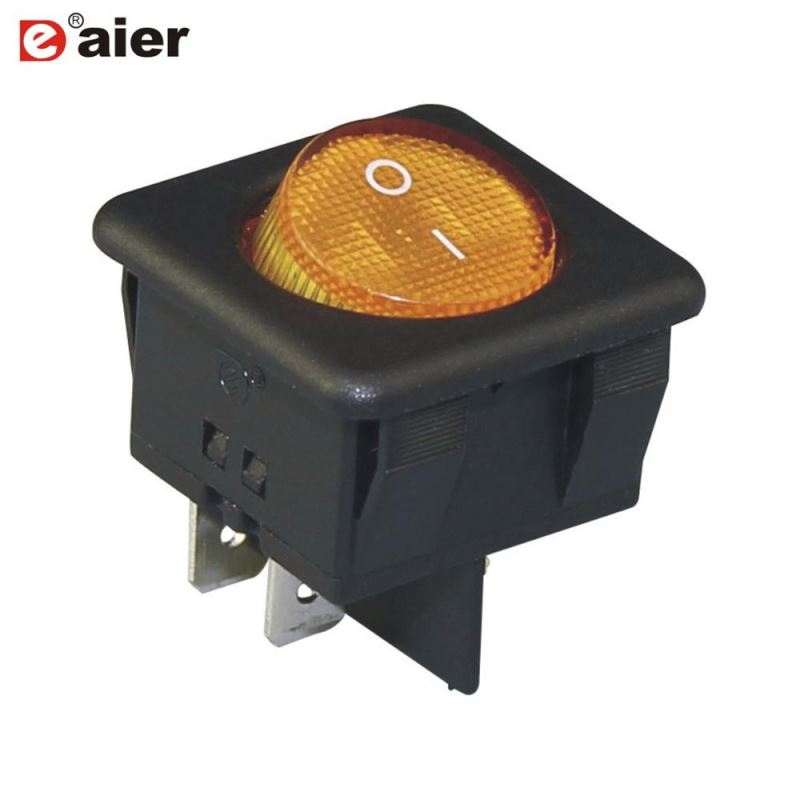

- KCD2-10-201N
- Max. Current:
- 20A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item Number:
- KCD2-10-201N
- Button Color:
- Transparent Red/Green/Yellow/Blue
- Function:
- ON-OFF
- Contact Configuration:
- DPST
- Rating:
- 20A 125VAC/16A 250VAC
- Contact Resistance:
- 35mΩ max
- Insulation Resistance:
- 500 VDC100MΩ
- Dielectric Strength:
- 1500VAC 1 minute
- Electrical Life:
- 100,000 cycles
- Certification::
- CE, CQC, SGS
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X28X15 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:

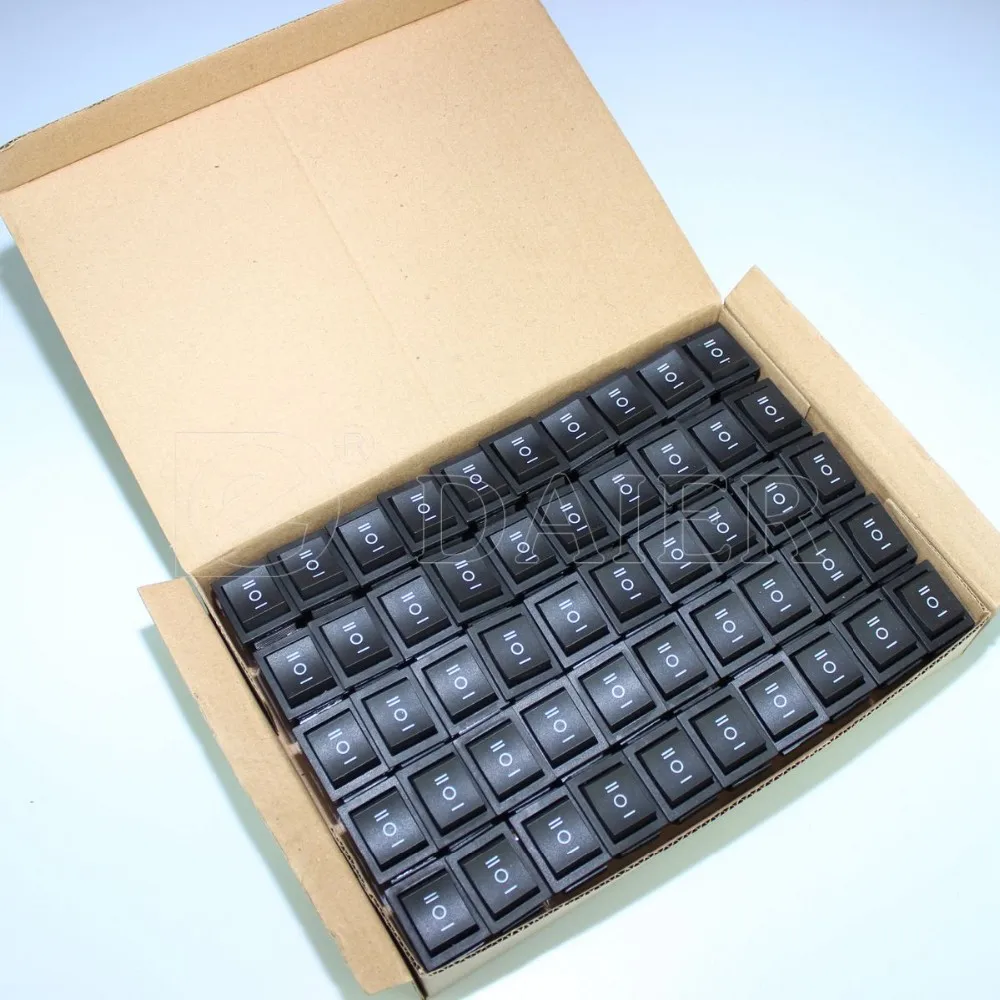

- 50PCS Per Bag of Medium4 Pin DPST 16A Coffer Maker Rocker Switch 110VWith Light
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 7 To be negotiated
