Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KCD1-2-101NW
- Max. Current:
- 10A/6A
- Max. Voltage:
- 125/250VAC
- Operating Temperature:
- 25 ~+85
- Protection Level:
- IP65
- Item number:

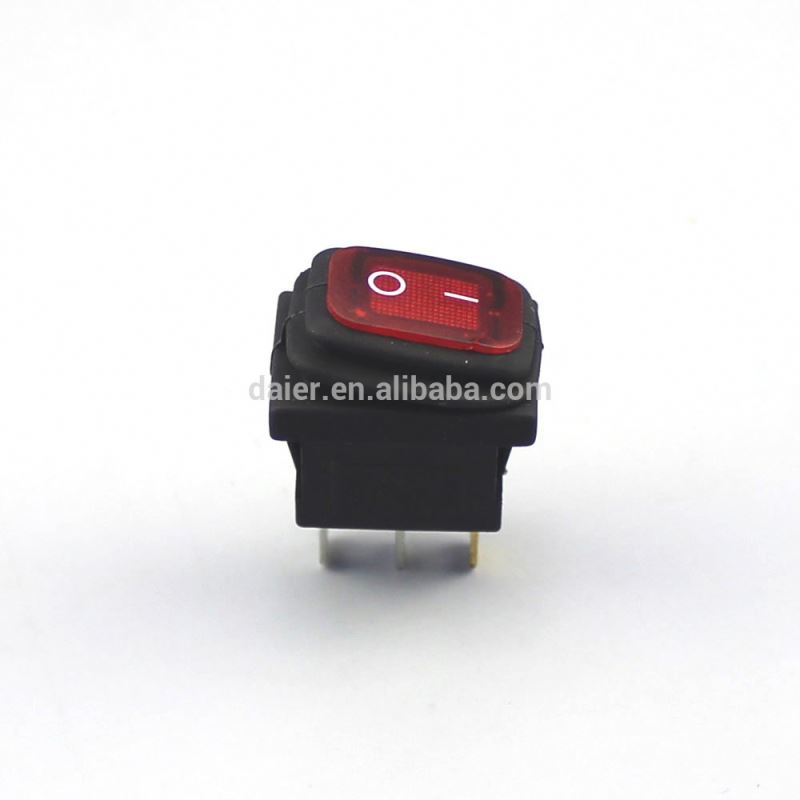

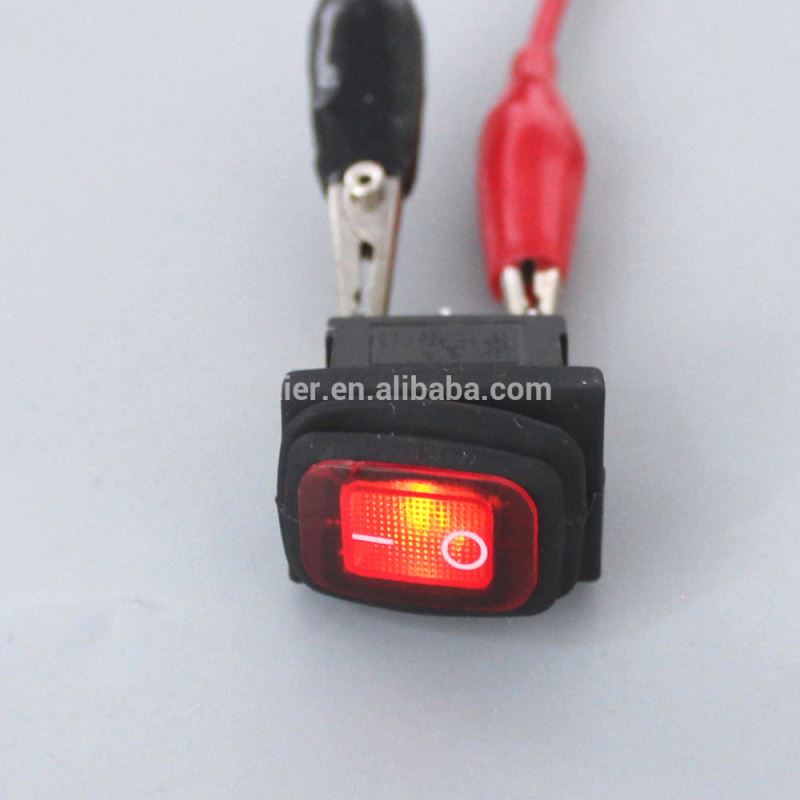

- Rocker switch t125 55
- Body Color:
- Black
- Lamp:
- Standard red,other color is avaliable
- Lamp Voltage:
- 220V/12V/24V
- Function:
- ON-OFF
- contact Resistance:
- 30 mΩ max
- Insulation Resistance:
- 500 VDC100MΩ
- Dielectric Strength:
- 1500VAC,1minuute
- Electric life:
- 100,000 cycles
- approved:
- CE,CQC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- XX cm
- Gross weight per batch:
- 5.0 kg
- Package Type:
- The waterproofrocker switch detailed is 100pcs per bag
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 5000 >5000 Est. Time(days) 7 To be negotiated
