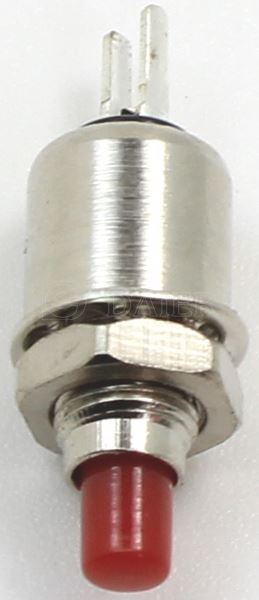

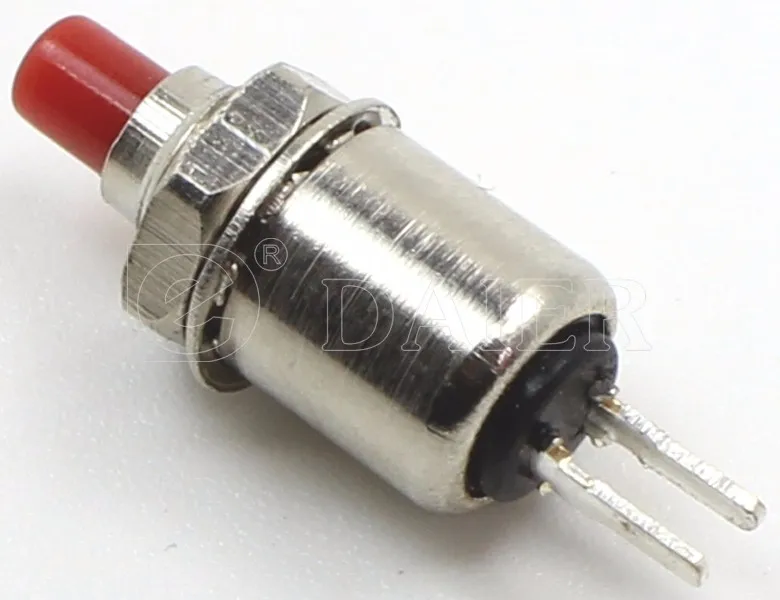

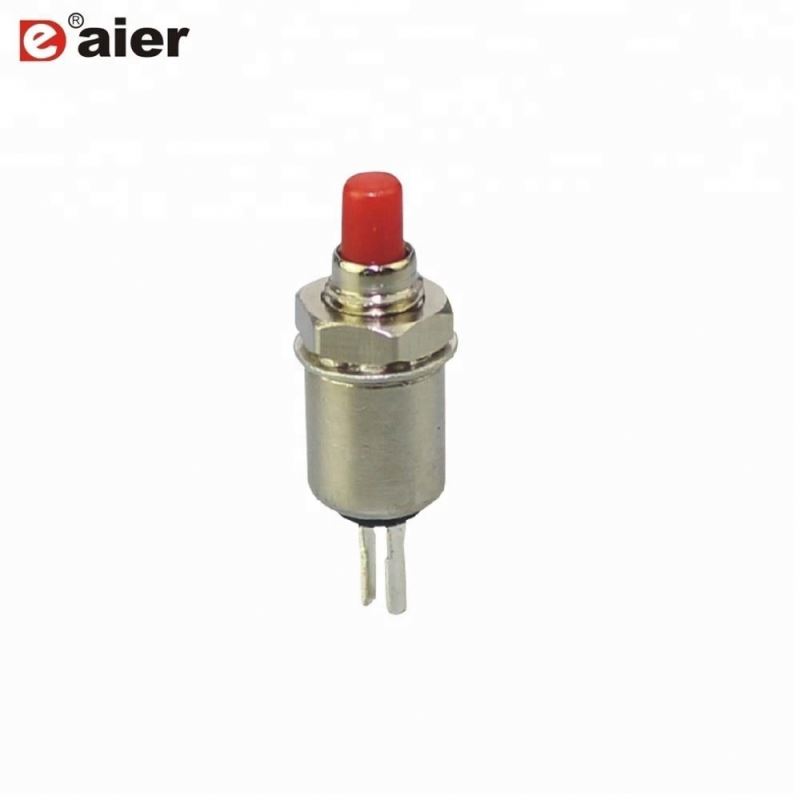

DS-402 5mm mini good quality no type momentary push button switch

Click on the image to view the original image

Product：	views：4DS-402 5mm mini good quality no type momentary push button switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:12

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: DS-402

Protection Level:: IP40

Max. Current:: 0.5A

Max. Voltage:: 125VAC

Standard:: IEC standard

Panel size:: 5mm

Voltage:: 125VAC

Certificate:: CE,Rohs,CQC

Button Color:: Red,green,black

Switch type:: Push button switch

Product name:: DS-402 5mm mini good quanlity no typemomentarypush button switch

Function:: NO momentary push button switch

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: XX cm

Gross weight per batch:: kg

Package Type:: 500pcs/package for DS-402 5mm mini good quanlity no typemomentarypush button switch

Lead Time:

Quantity(Piece)	1 - 5000	>5000
Est. Time(days)	7	To be negotiated

Our adventage

Product Description

Product Name	DS-402 5mm mini good quanlity no typemomentarypush button switch
Rating	0.5A 125VAC
Funtion	SPST NO type

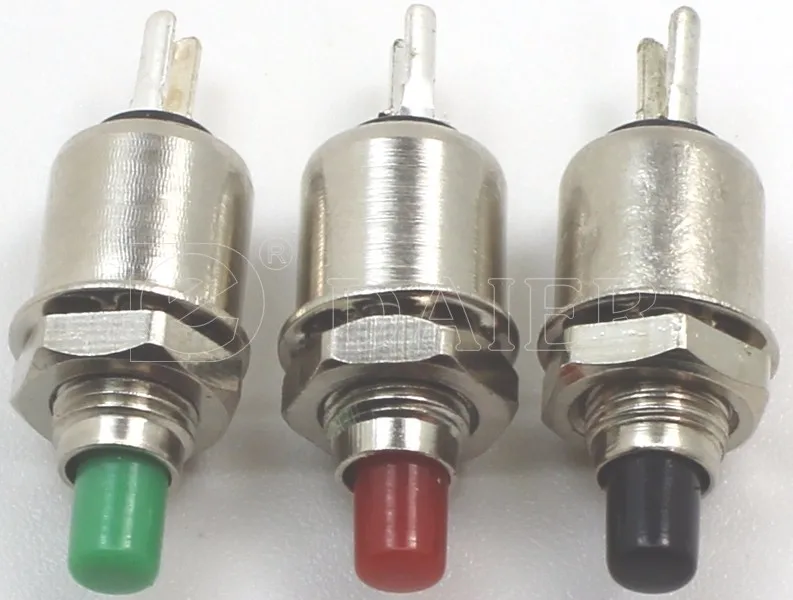

Button Color	Red/Green/Black
Electonical Life	≥10,000 Cycles

Products Show

DS-402

Push Button Switch Series:
1.nice appearence,free from rust,metal body with bright led lamp, Sliver contact, Gilded Solder terminal
2.0.5A 125VAC
3.Contact resistance:≤50mΩ
4. Insulation resistance: DC500V 1000MΩ Min
5. Dielectric Strength: 1500VAC 1 minute
6. Electrical life: ≥10,000 Cycles
7. Operating Temperature:-25°C~+85°C

DS-402

Push Button Switch Series: Widely used in home application,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument electric motion tool etc.
