TECHNICAL DATASHEET
Product: power switch kdc-a10

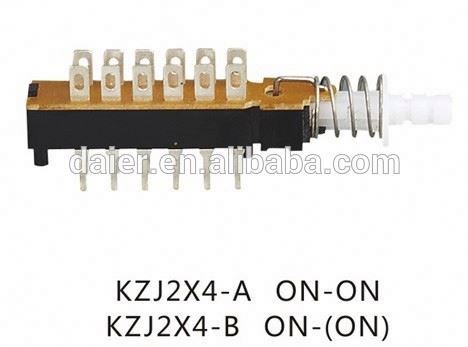

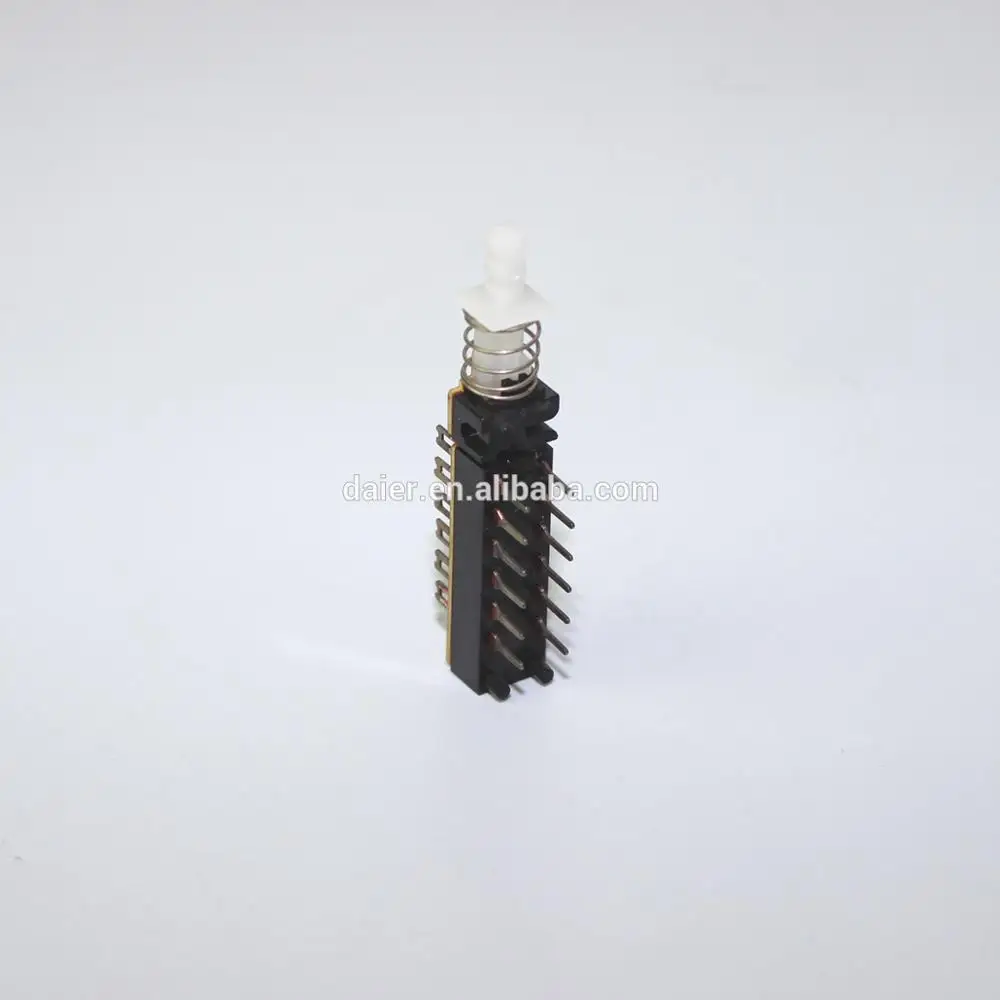

KZJ2X4-A ON ON Latching
KZJ2X4-B ON ON Momentary
Brief:
power switch kdc-a10
1. CE,ROHS,more than 10 years" manufacture
2. Momentary or latching
3.Long life time
Feature:

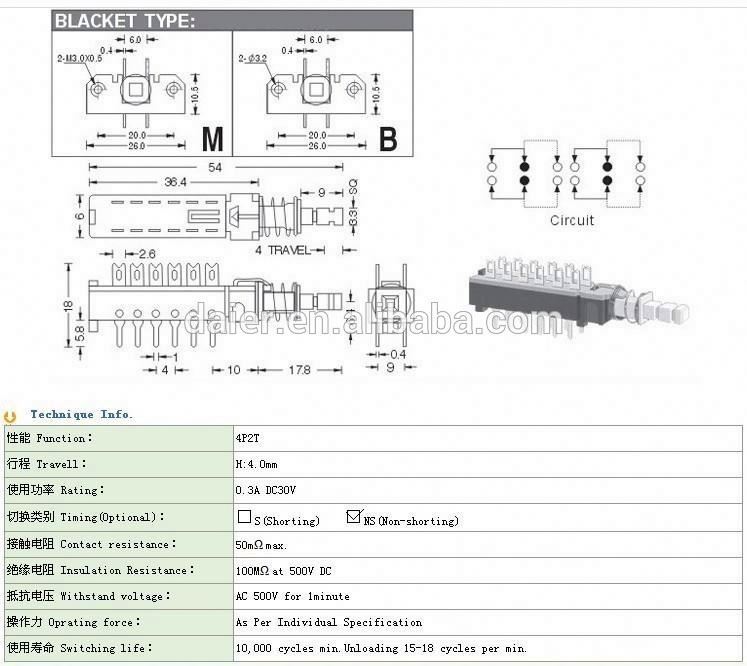

SPECIFICATIONS |
|
CONTACT RATING: | 300mA 30VDC |
LIFE EXPECTANCY: | 10,000 Cycles Typical |
CONTACT RESISTANCE: | 20mΩ Max. Initial at 2-4VDC, 100mA |
INSULATION RESISTANCE: | 100MΩ Min. |
DIELECTRIC STRENGTH: | 1,000V RMS at Sea Level |
OPERATING FORCE: | See Individual Specifications |
OPERATING TEMPERATURE: | -20°C to 85°C |
MATERIALS |
|
HOUSING: | Tin Over Steel |
ACTUATOR: | Acetal |
TERMINAL BASE: | Phenolic |
SPRING: | Spring Steel |
TERMINALS: | Silver Over Brass |
CONTACT: | Silver Over Phosphor Bronze |
Changeover timing | Non shorting | |||
Travel | 2.5mm | |||
Total travel | 3.5mm | |||
Operating force | 2.3±1N | |||
Mounting method | PC board | |||
Poles | 1 | |||
Operation | Latching | |||
Terminal type | For PC board | |||
Minimum order unit (pcs.) | 4,500 | |||
Operating temperature range | -40°C to +85°C | |||
Rating (max.)/(min.) (Resistive load) | 0.2A 30V DC/50µA 3V DC | |||
Electrical performance | Contact resistance (Initial performance/After lifetime) | 20mΩ max./40mΩ max. | ||
Insulation resistance | 100MΩ min. 500V DC | |||
Voltage proof | 500V AC for 1 minute | |||
Mechanical performance | Terminal strength | 5N for 1 minute | ||
Actuator strength | Operating direction | 30N | ||
Resistance to soldering heat | Manual soldering | 350±10°C, 3(+1, 0)s | ||
Dip soldering | 260±5°C, 5±1s | |||
Durability | Operating life without load | 10,000 cycles | ||
Operating life with load (Load: as ratings) | 10,000 cycles | |||
Environmental performance | Cold | -20±2°C for 96h | ||
Dry heat | 85±2°C for 96h | |||
Damp heat | 40±2°C, 90 to 95%RH for 96h | |||
Application
They are widely used in TV, VCD, juicer, heater, consumer electronics, household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
