Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L19F-11N
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:
- 24 Volt Push Button Switch
- Function:
- Momentary Or Latching
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 19mm Plastic Flat Button 5Pin Momentary Or Latching Illuminated Waterproof 24 Volt Push Button Switch is 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 7 To be negotiated
Product Description

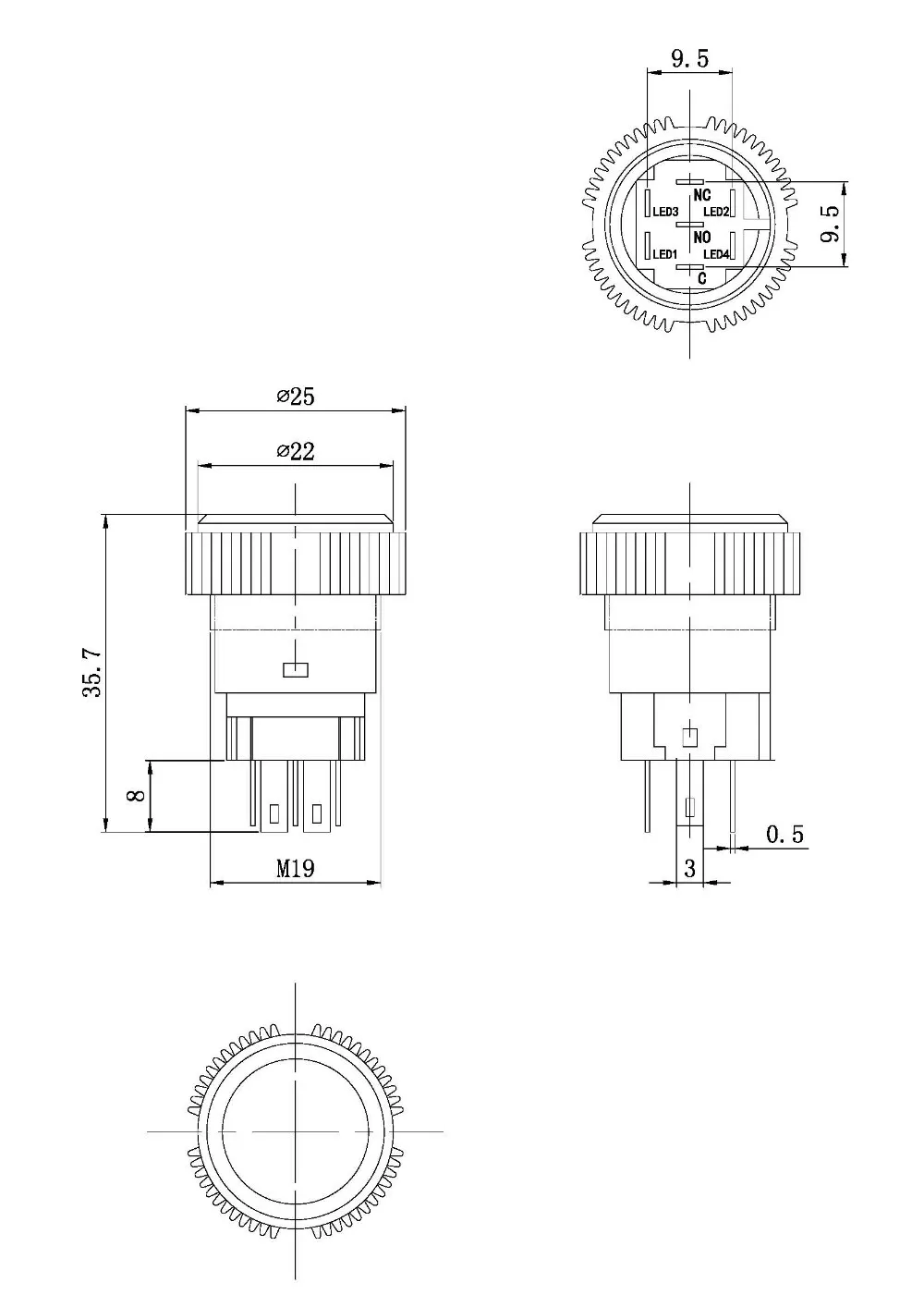

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

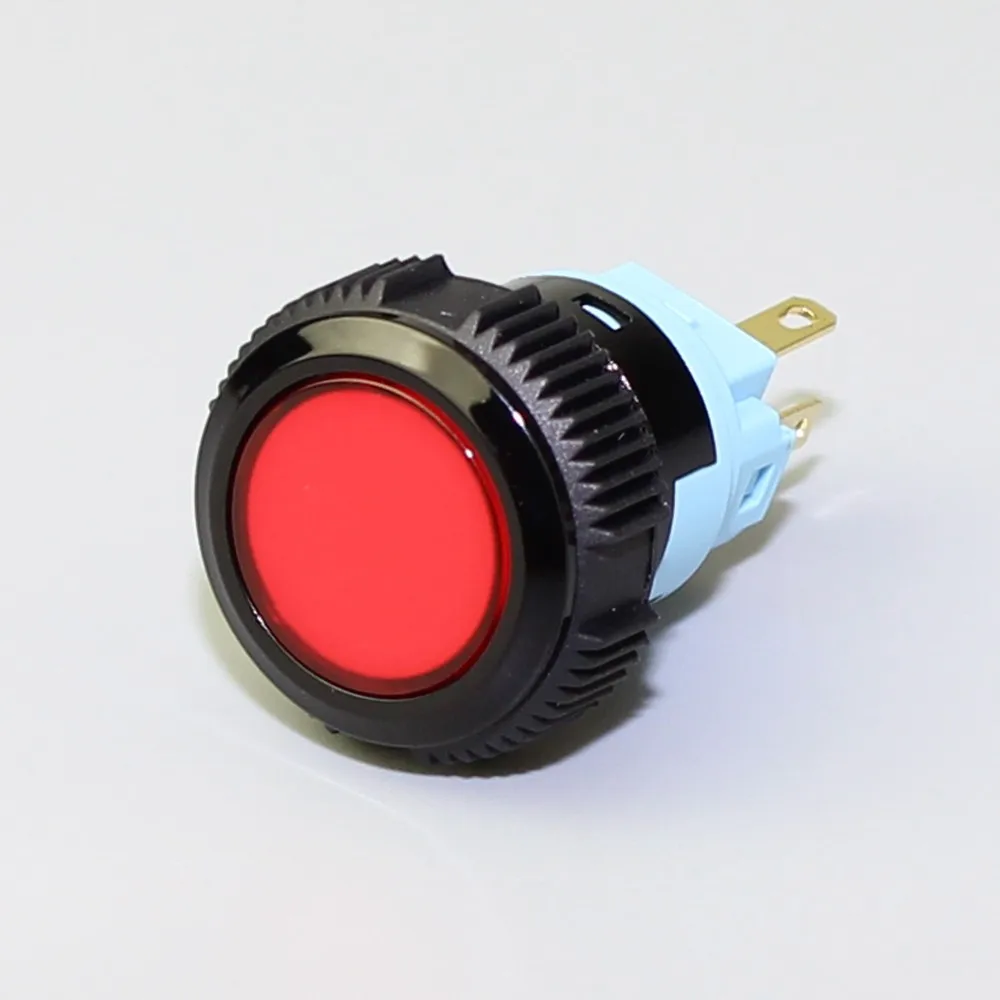

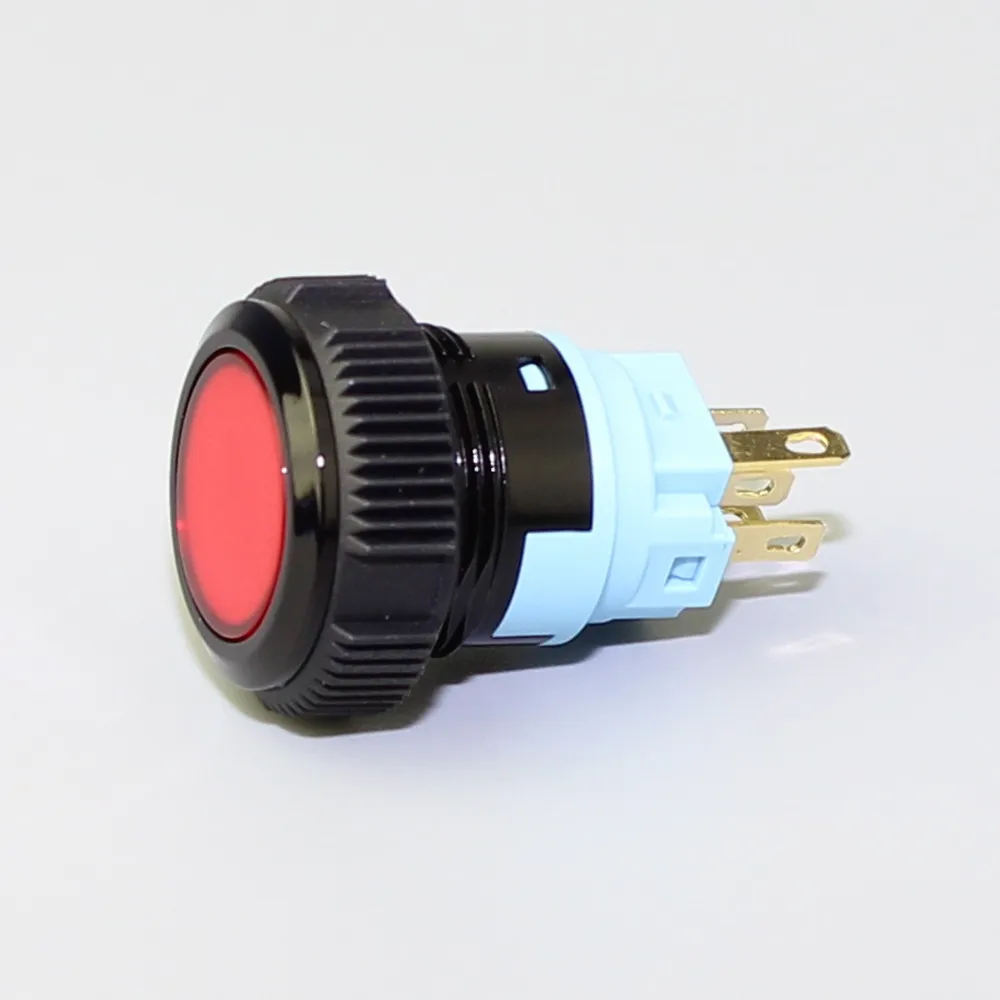

Products Show
Related Roducts
L19F-11EM-AA
19mm Flat Button Ring Illuminated SPDT Momentary IP67 Black Color Plastic Push Button Switch
LAS3-19F-11E
19mm Flat Ring IP67 Bi-Color Momentary Led Push Button Switch
L19F-11EPM-SS
19mm Flat Button Ring Illuminated With Power Logo SPDT Momentary IP67 Silver Color Plastic Push Button Switch
L19F-11NM-SR
19mm Flat Button Lens Illuminated SPDT Momentary IP67 Silver Color Plastic Push Button Switch
L19F-11NM-AY
19mm Flat Button Lens IlluminatedSPDT Momentary IP67 Black Color Plastic Push Button Switch
L19H-11NM-AB
19mm High Button Lens Illuminated SPDT Momentary IP67 Black Color Plastic Push Button Switch
