12mm Plastic Push Button Telemecanique Spring Return Push Button Start

Click on the image to view the original image

Product：	views：212mm Plastic Push Button Telemecanique Spring Return Push Button Start
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: L12H-10NM-SR

Protection Level:: IP67

Max. Current:: 2A

Max. Voltage:: 36VDC

Item number:: Push button Switch

Function:: Momentary

Led color:: Red Yellow White Blue Green

Contact Resistance:: 50 mΩ max

Operating Force:: 5N

Dielectric Strength:: 2000VAC

Electric life:: 200,000 cycles

Operating Temperature:: -20°C ~+55°C

Material:: Plastic

IP Class:: IP67

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 1.1 kg

Package Type:: L12H-10NM-SRis 40pcs/box

Lead Time:

Quantity(Piece)	1 - 40000	>40000
Est. Time(days)	7	To be negotiated

Our adventage

Product Description

Product Name	12mm Plastic Push Button Telemecanique Spring Return Push Button Start
Rating	2A 36VDC
Mounting Size	12mm
IP Class	IP67
Function	Momentary

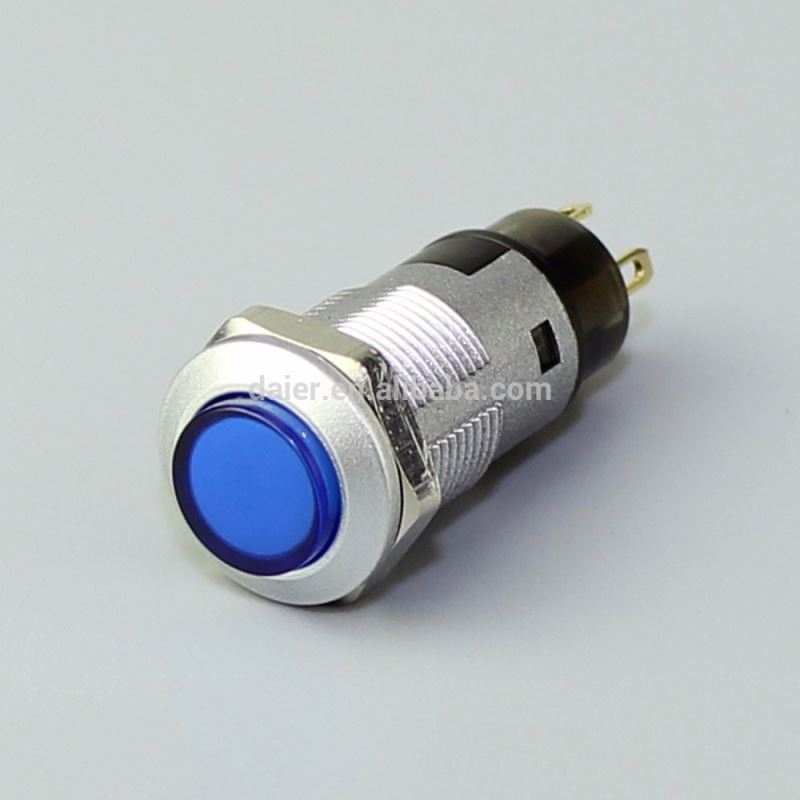

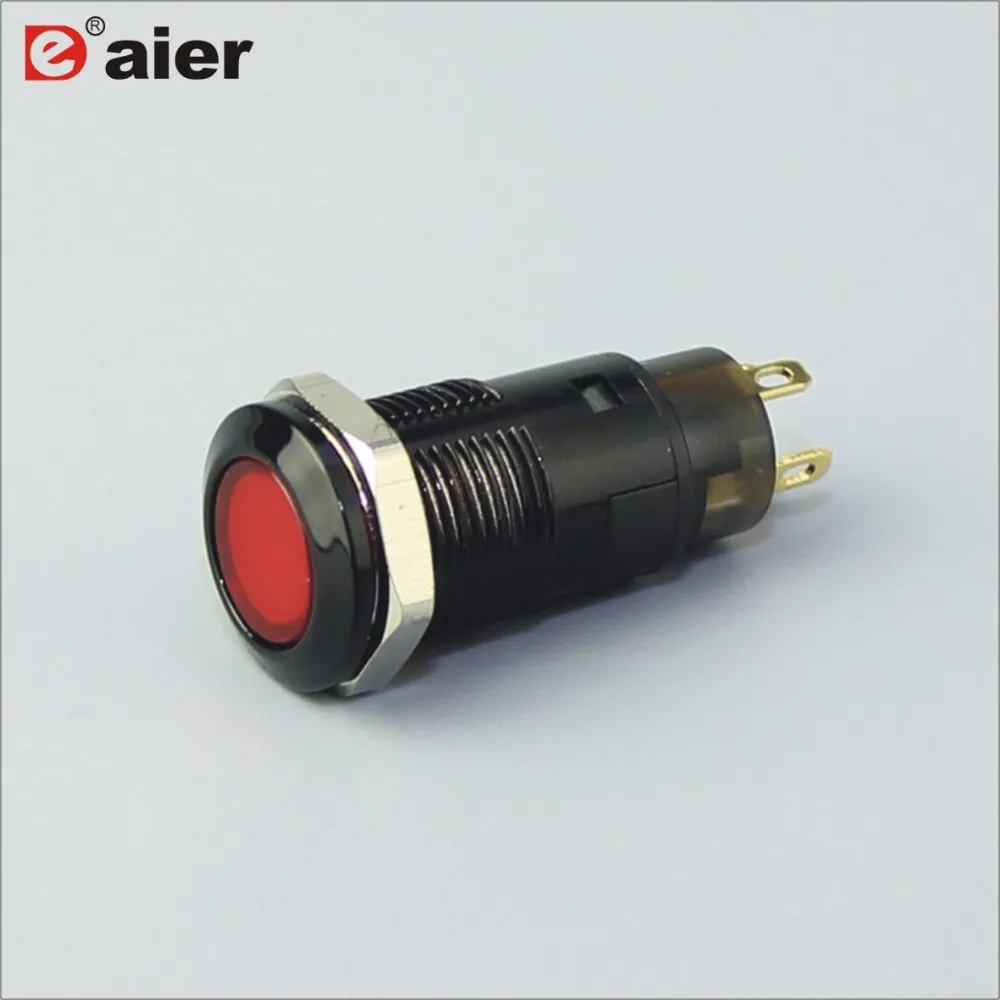

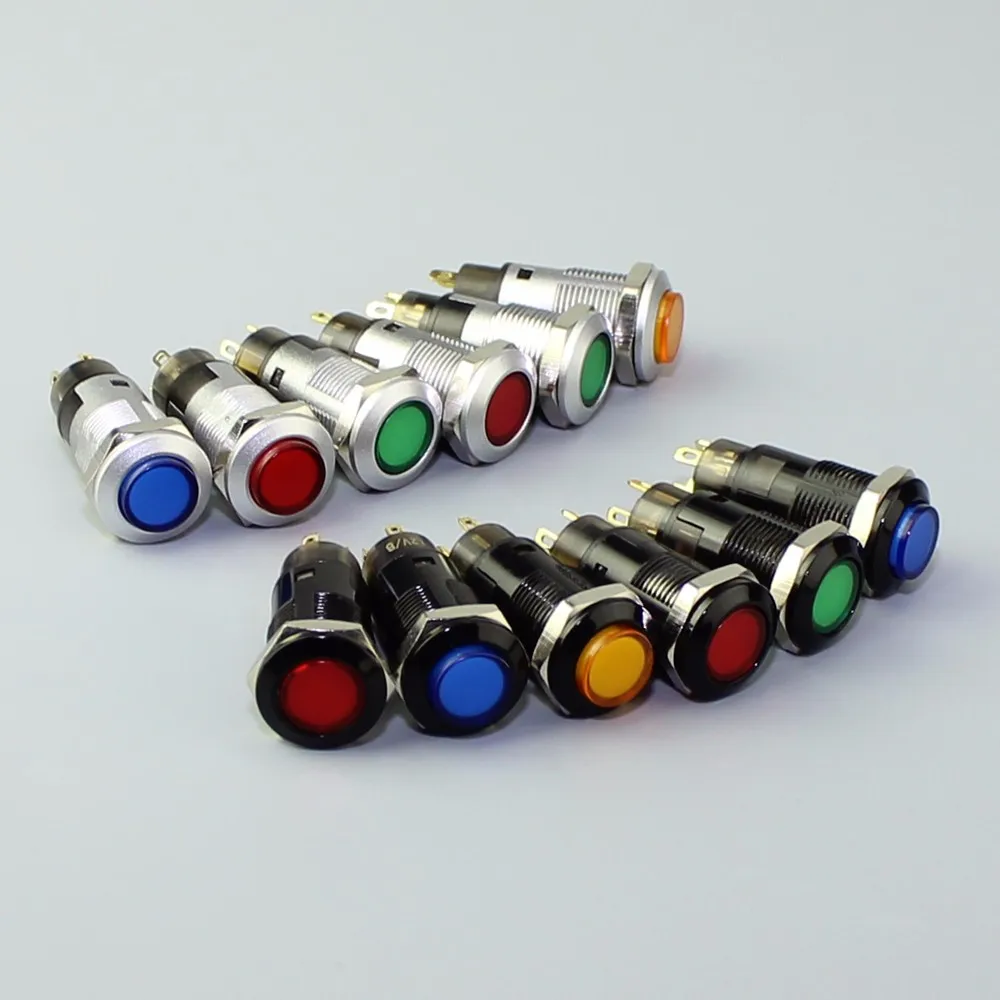

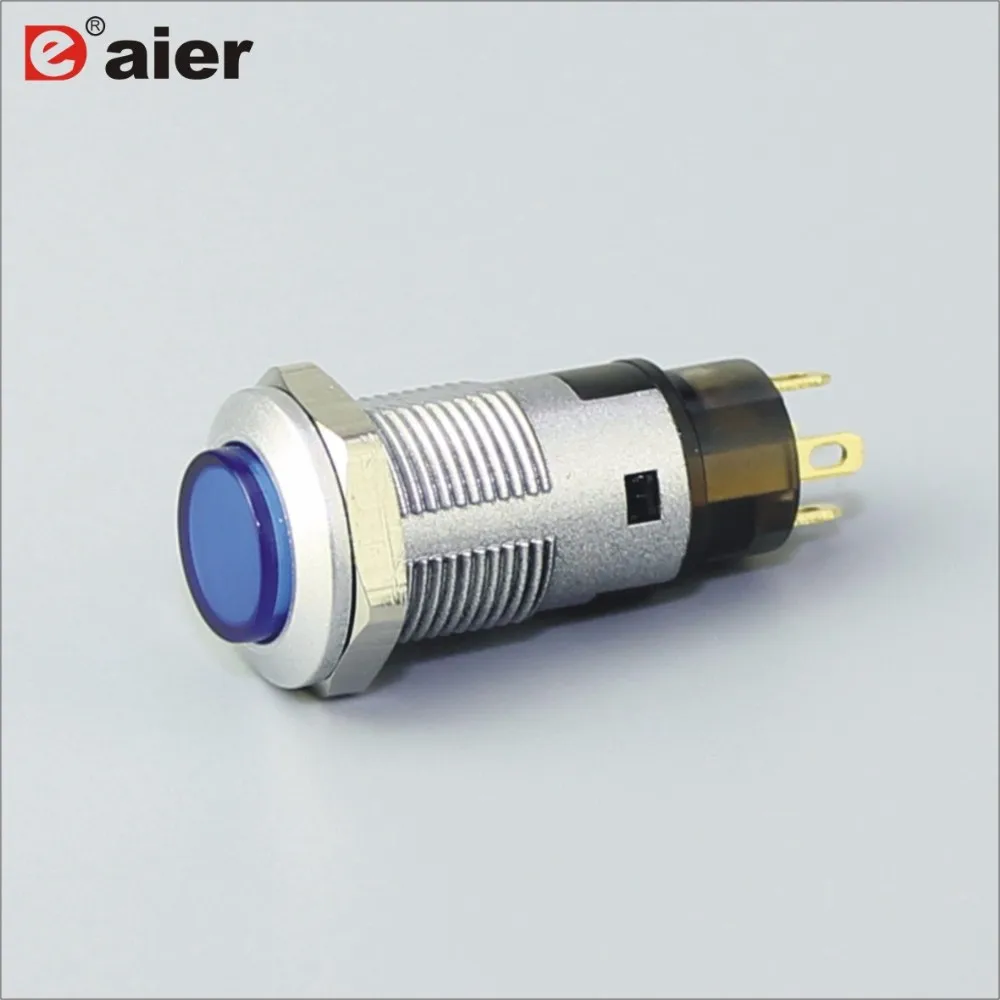

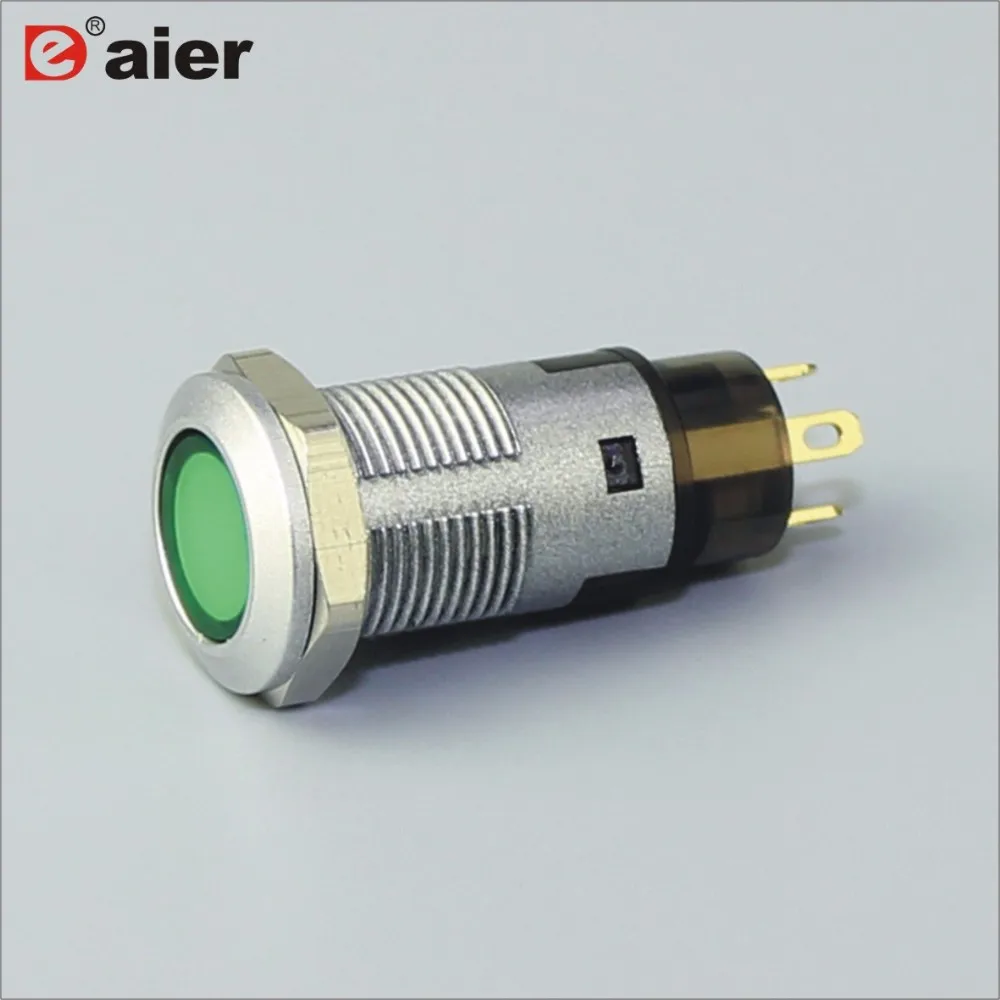

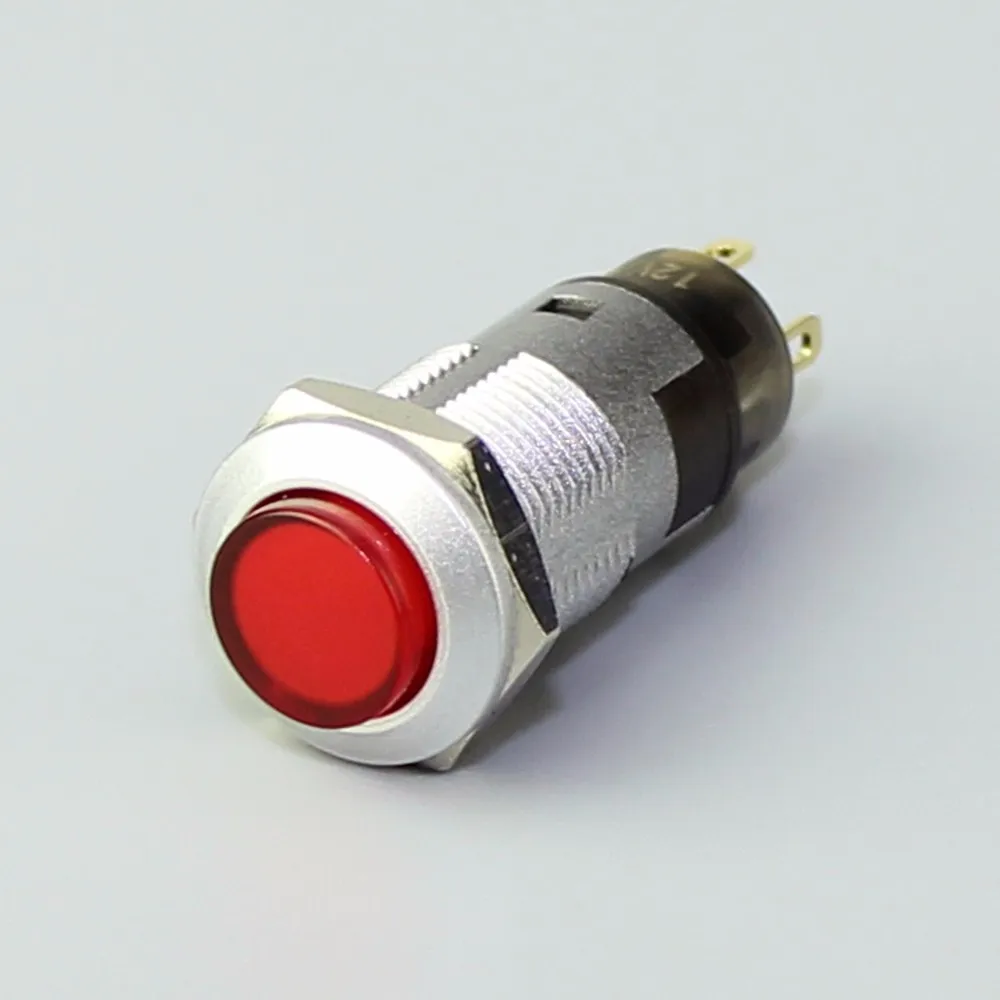

Products Show

L12H-10NM-SR

Specifications:
1. Rating: 2A 36VDC
2. Electrical Life: 50,000cycles
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Function: Momentary
8. IP Class: IP67 protection
9. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
