Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L22-11PM
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:

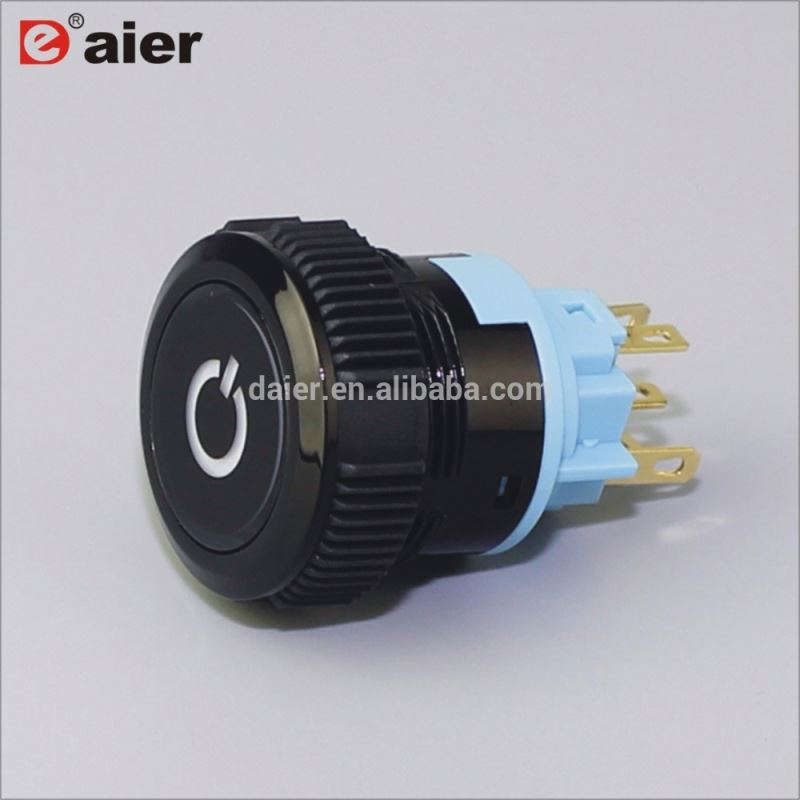

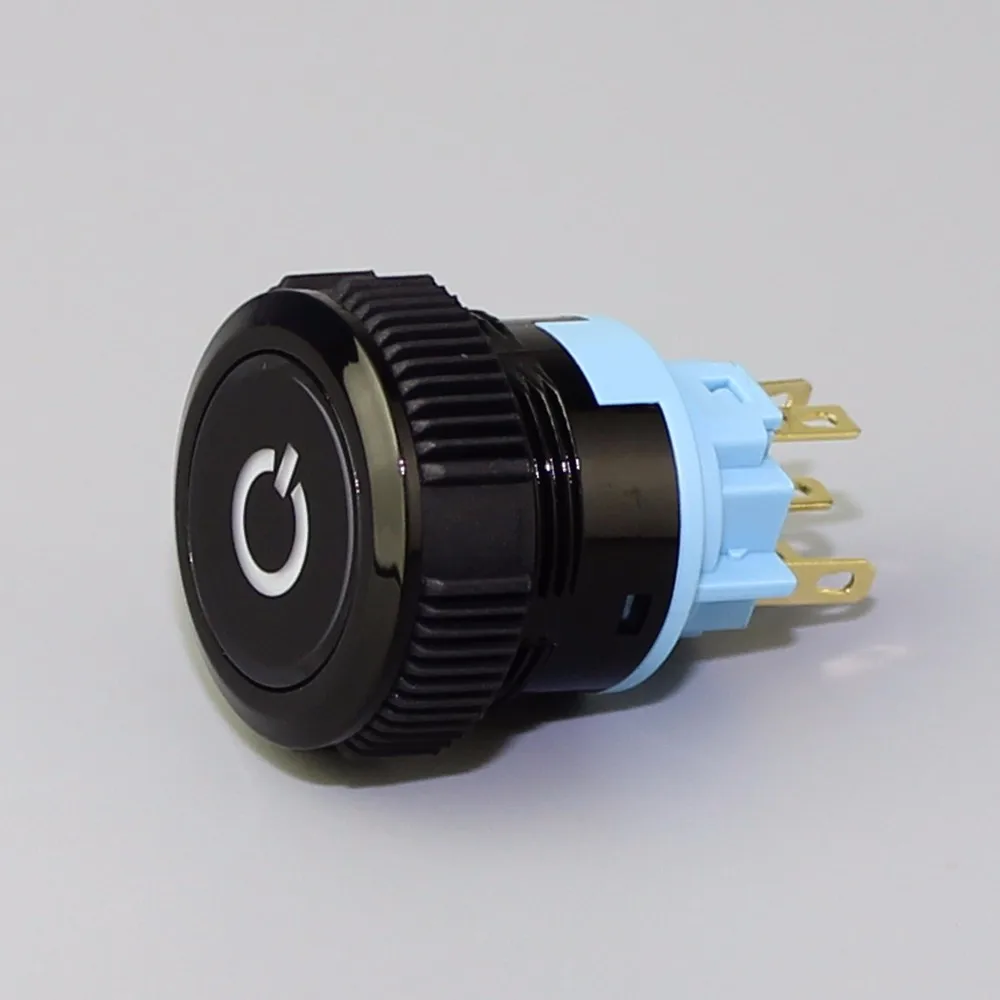

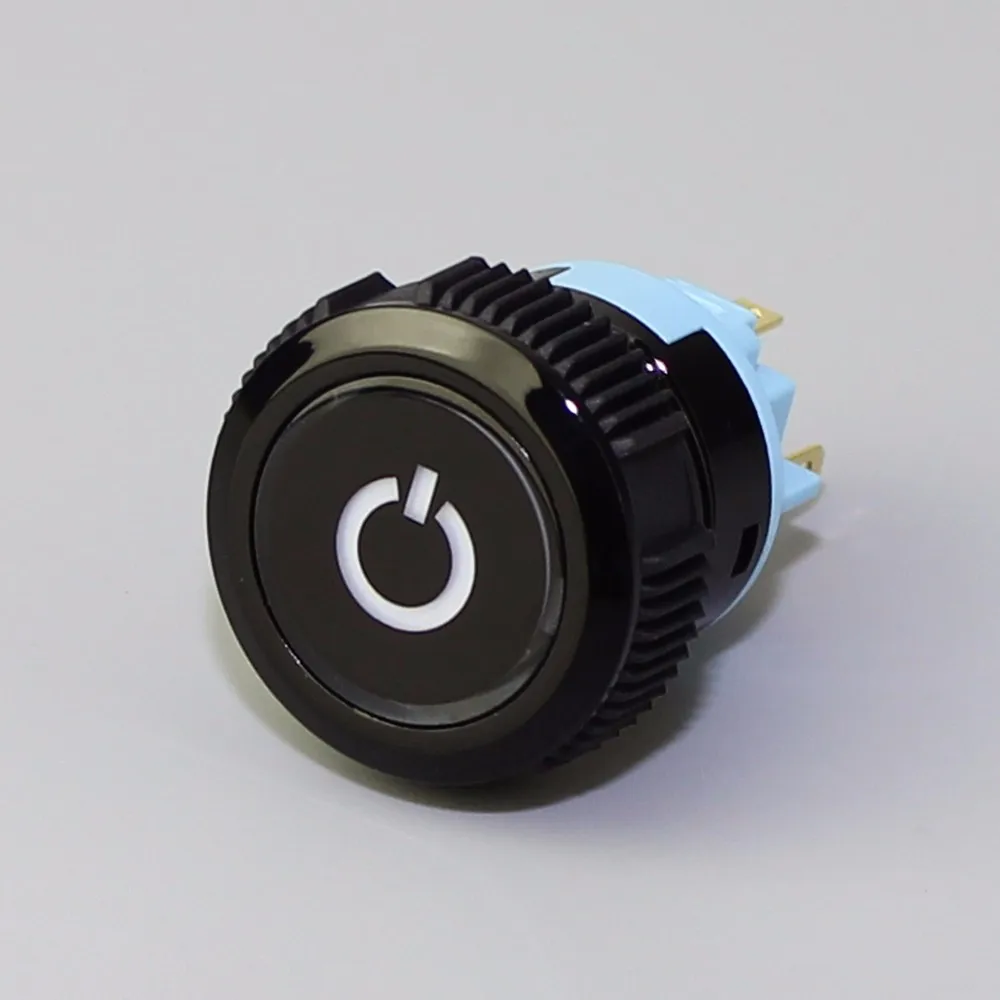

- High Quality Push Button 22mm Illuminated PushButton Switch
- Function:
- Latching/Momentary
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.3 kg
- Package Type:
- High Quality Push Button 22mm Illuminated PushButton Switchis 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 7 To be negotiated
L22-11PM
Specifications:
1. Rating: 5A 250VaC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers

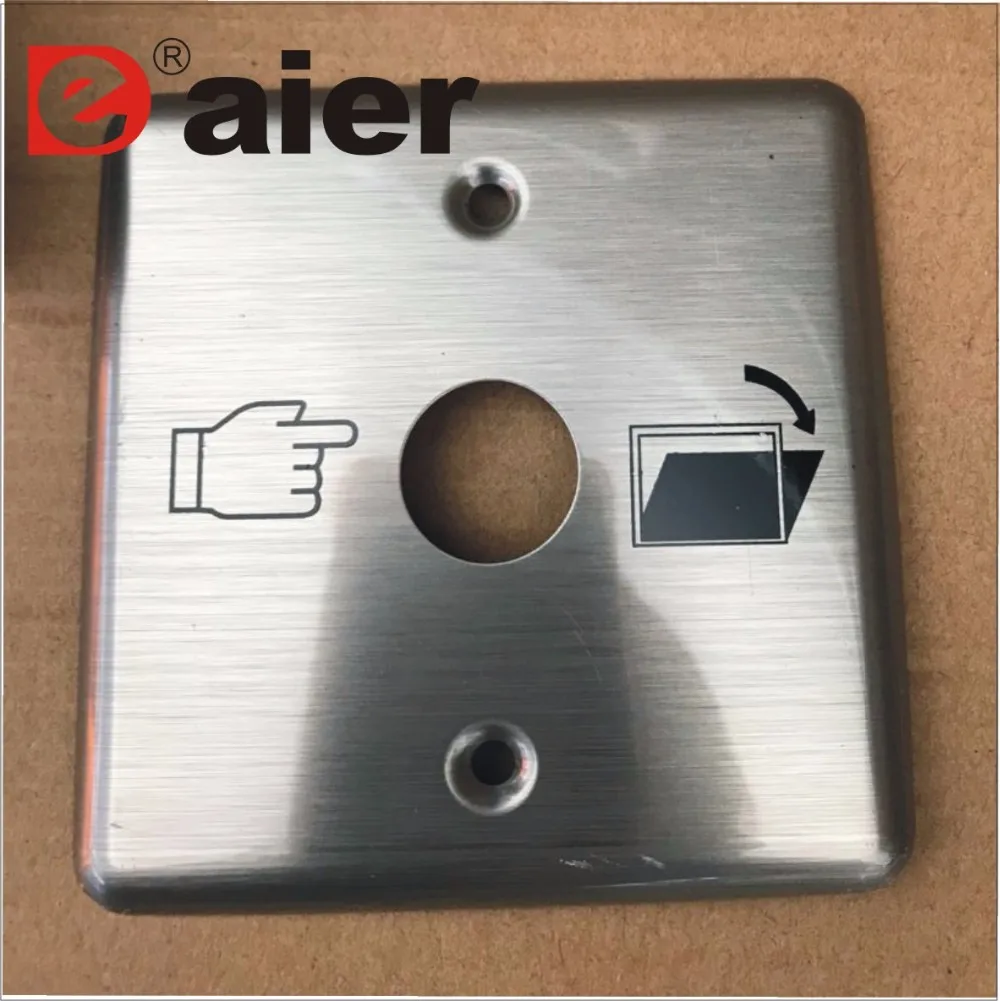

Stainless Steel Plate for 19mm metal push button switch
Stainless Steel Plate for 19mm metal push button switch
Connector wires for metal switches
19mm Metal push button switch plastic connector
19mm Ball Shape Button Ring Lamp IP67 SPST Momentary Screw Terminal Metal Push Button Switch

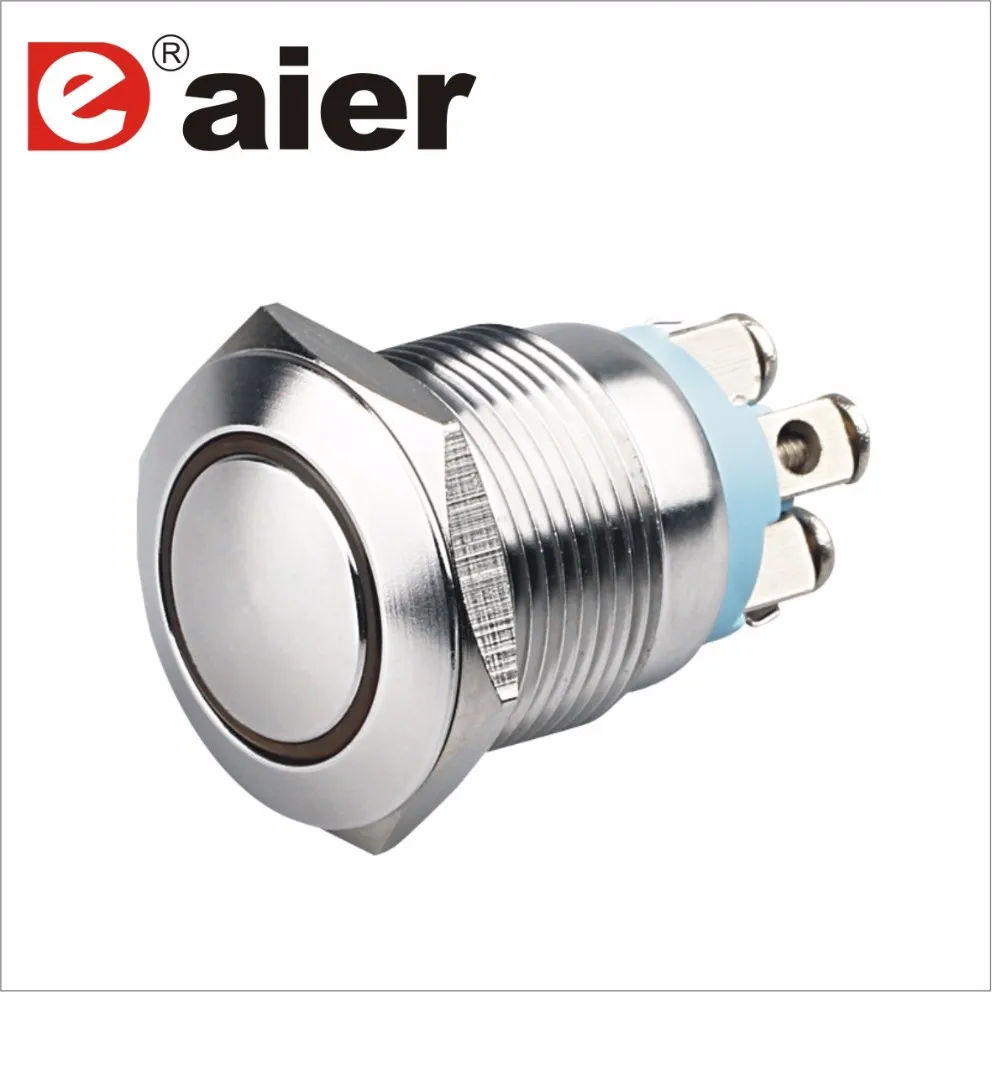

19mm Flat Ring IP67 Bi-Color Momentary Led Push Button Switch
