Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L22F-11EPM
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:
- Laser Pointer ON OFF Switch
- Function:
- Momentary
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 21X14X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 22mm Flat Button Lens Illuminated IP67 Silver Color Momentary Plastic Laser Pointer ON OFF Switch is 40pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 7 To be negotiated
Product Description

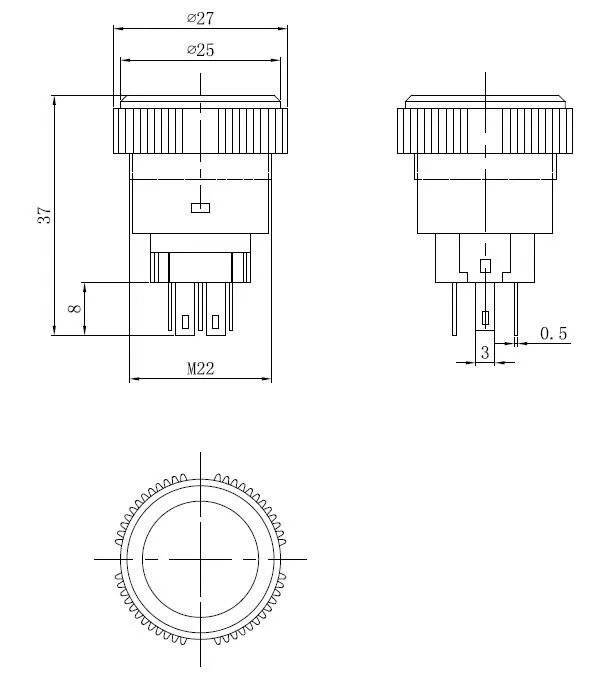

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:
Product Name | 22mm Flat Button Lens Illuminated IP67 Silver Color Momentary Plastic Laser Pointer ON OFF Switch |
Rating | 5A 250VAC |
Contact Resistance | 50mΩ Max |
Insulation Resistance | 100Ω Min |
Dielectric Strength | 2000VAC |
Operating Temperature | -20°C~+55°C |
Electrical Life | 50,000 Cycles |
Operating Force | 5.5N |

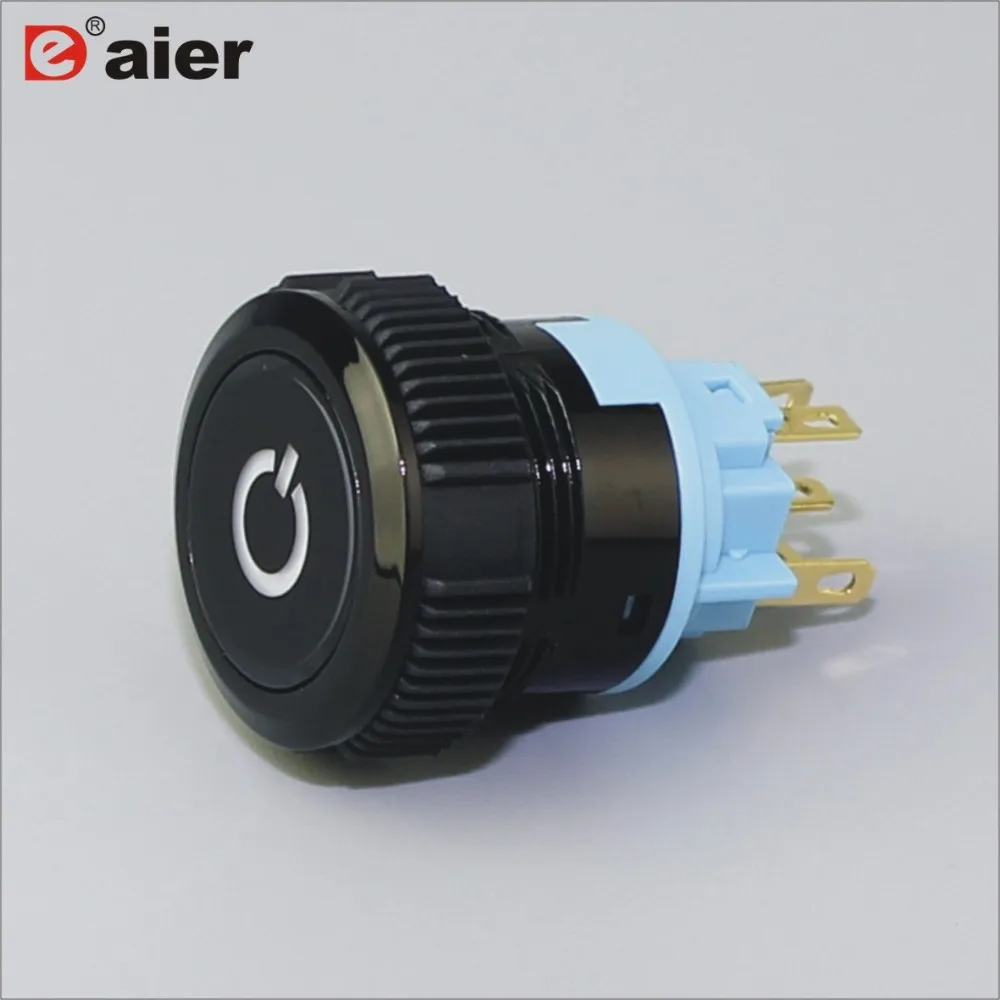

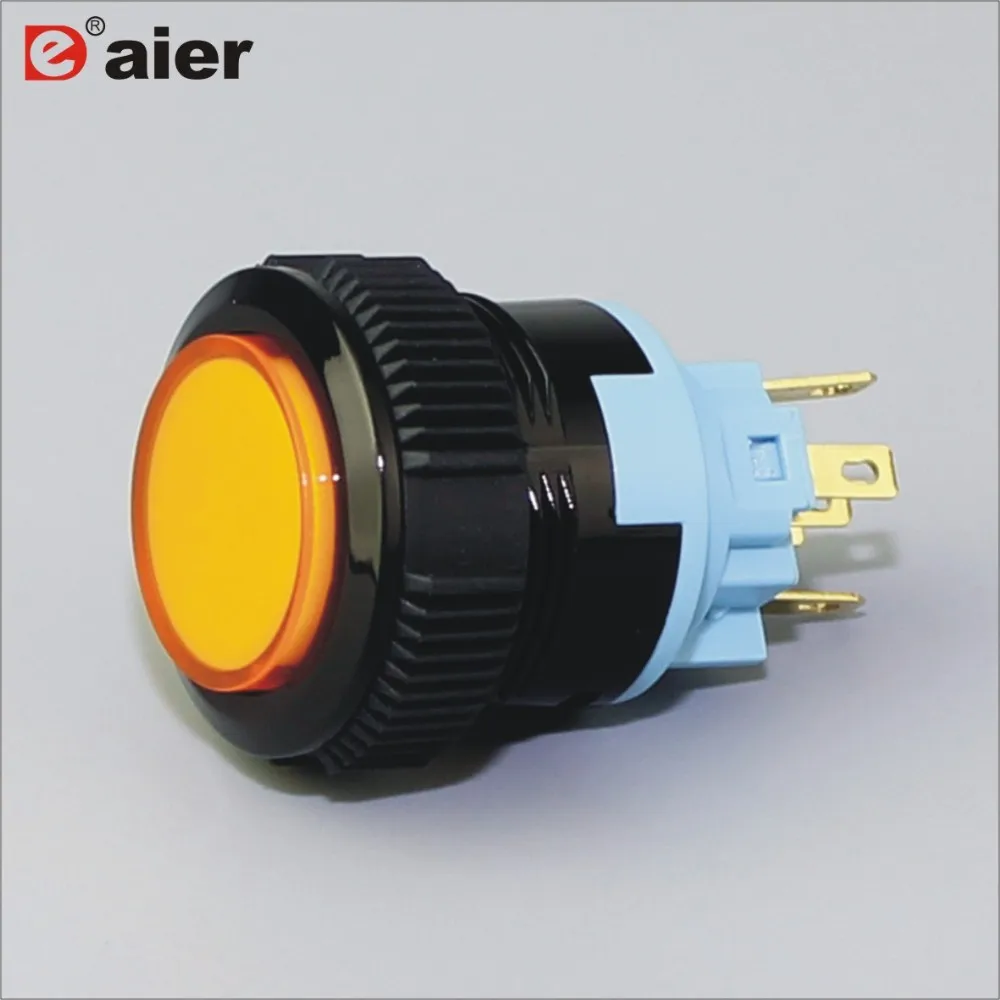

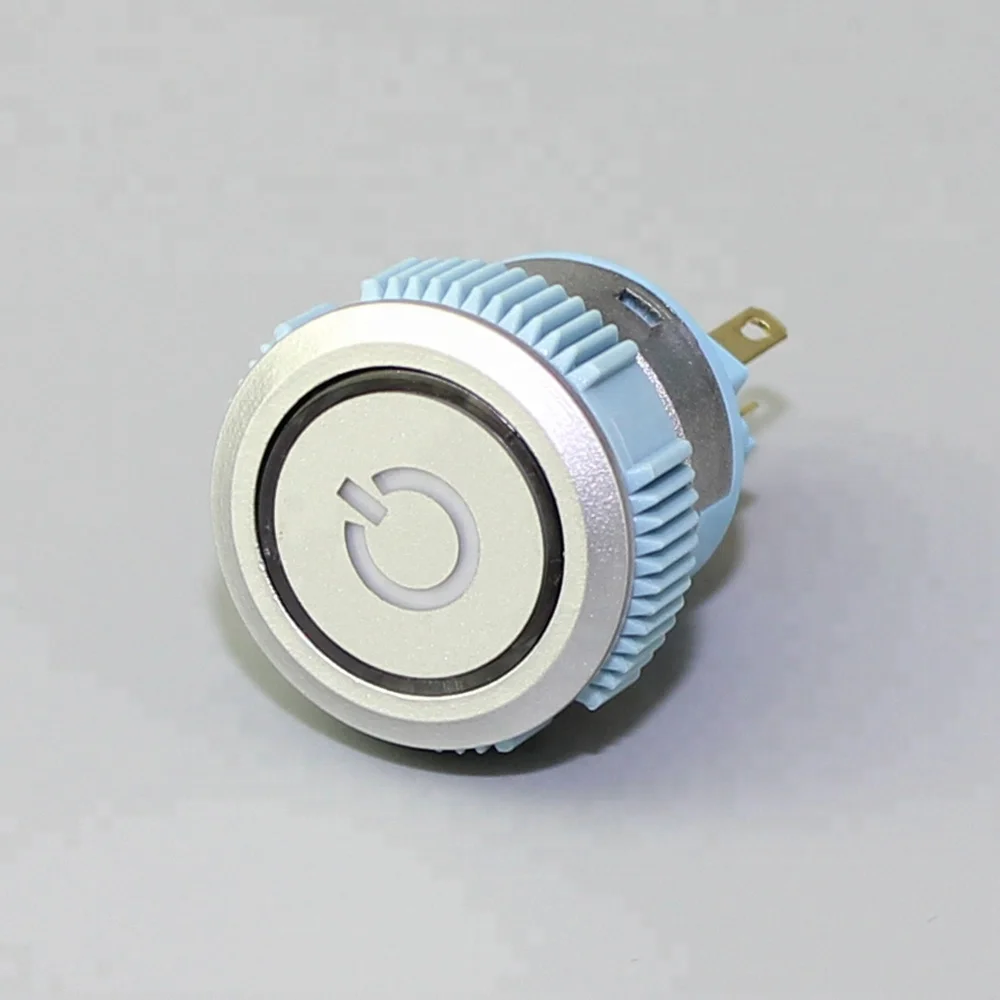

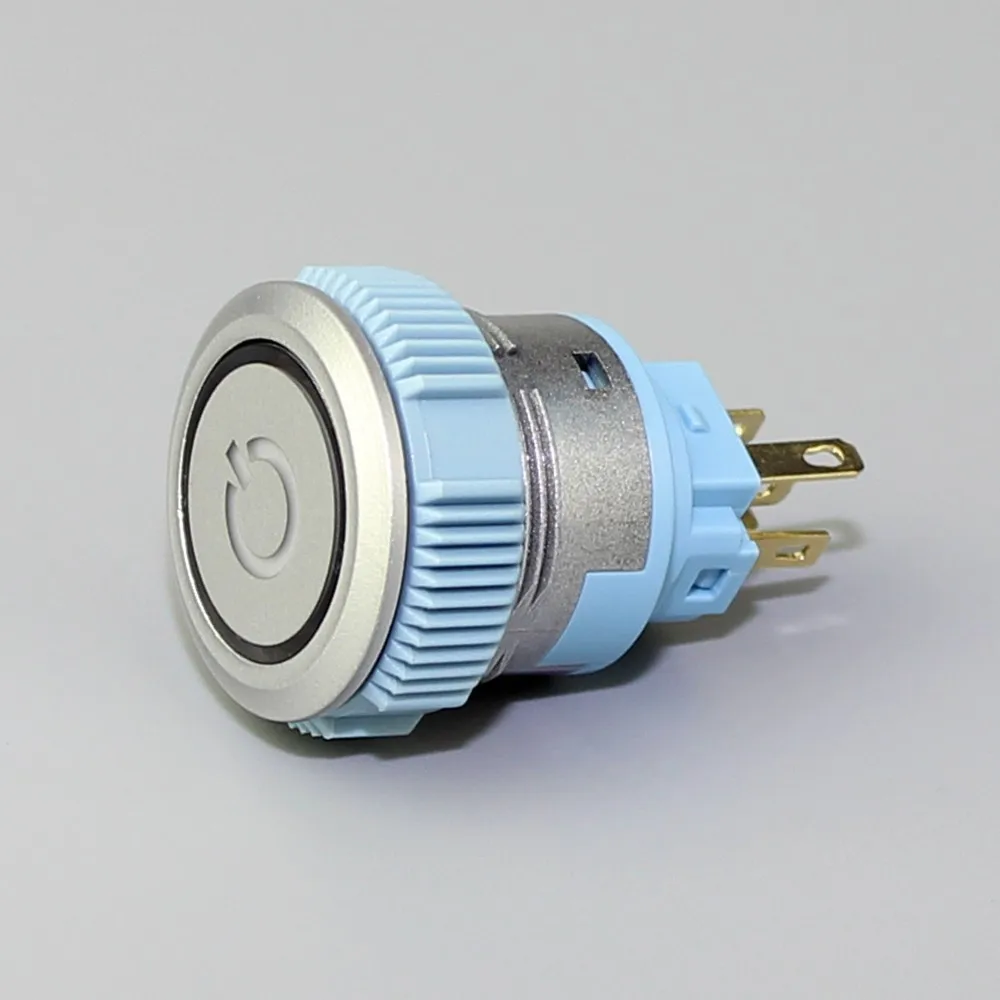

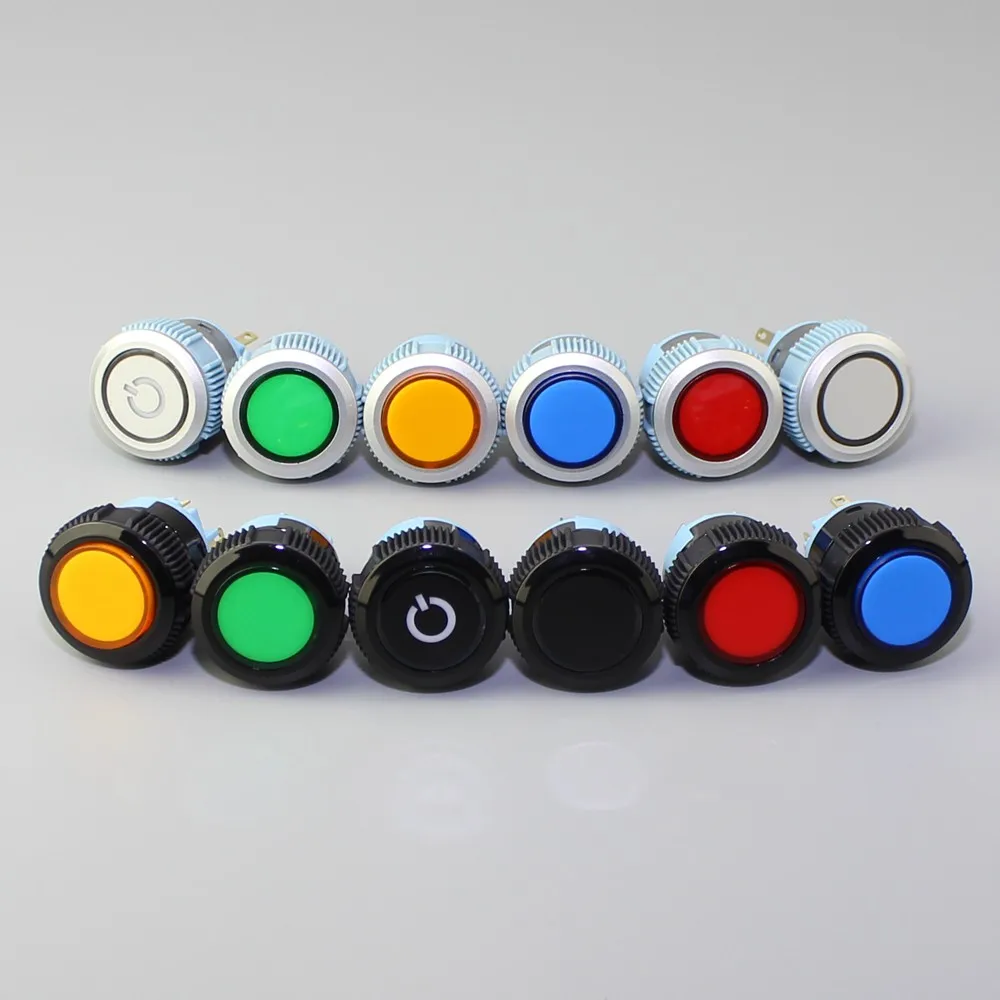

Products Show






Related Roducts




L22H-11N-AY
22MM Plastic IP67 Lens Illuminated High Button Switch
L22F-11P-AA
22MM Plastic IP67 Power Logo Switch
L22F-11E-SS

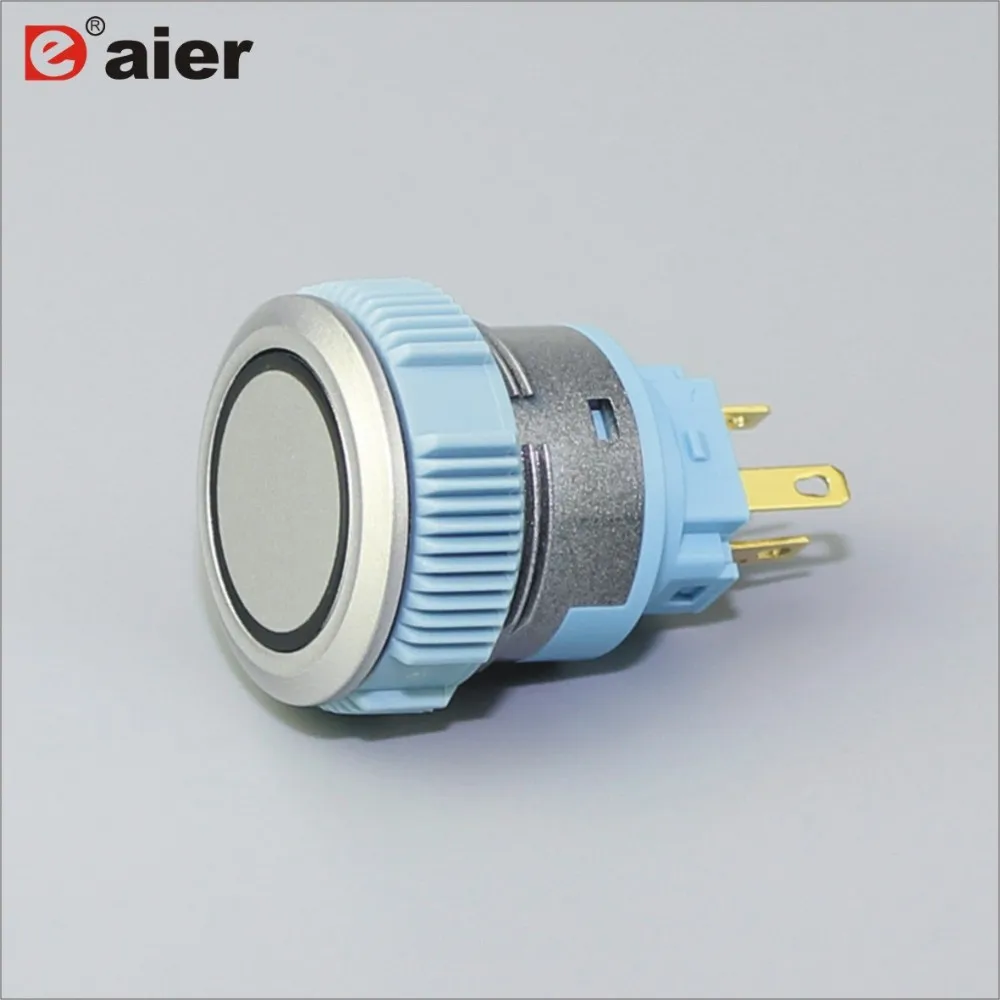

22MM Plastic IP67 Ring Illuminated Flat Button Switch



PZ22C-10E

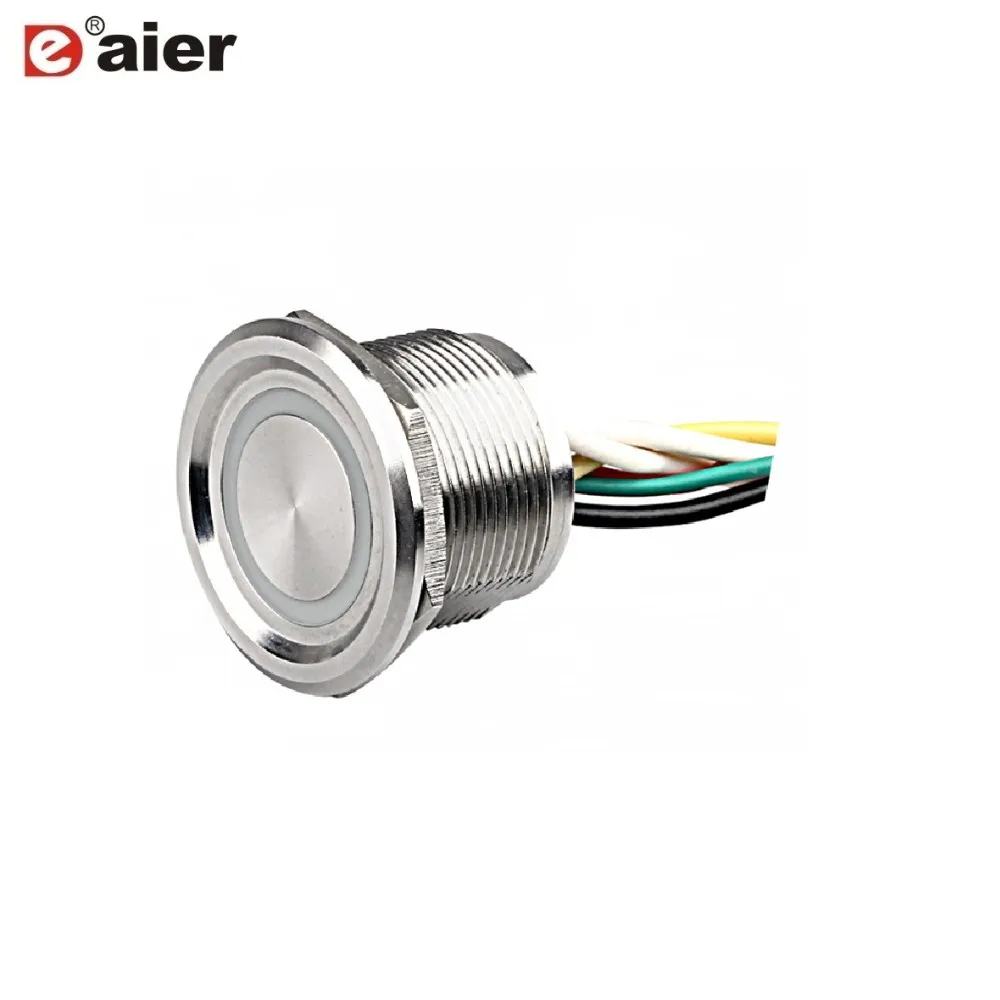

22MM Concave Ring Illuminated
Piezo Switch
22MM Concave Ring Illuminated
Piezo Switch
GQ22-11E

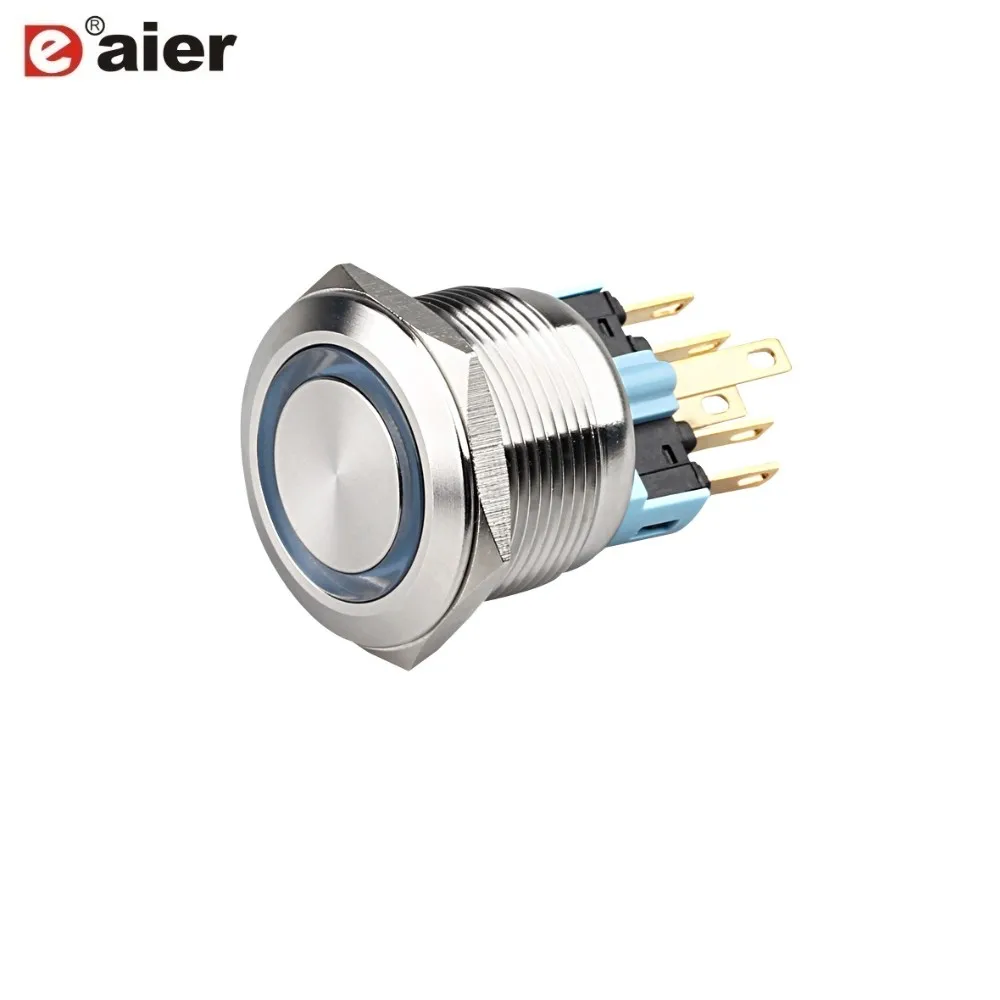

22mm Metal IP67 Ring Illuminated Flat Button Switch
