Home > Products > 11.7mm 2Pin NO Momentary Door Switch For Refrigerator

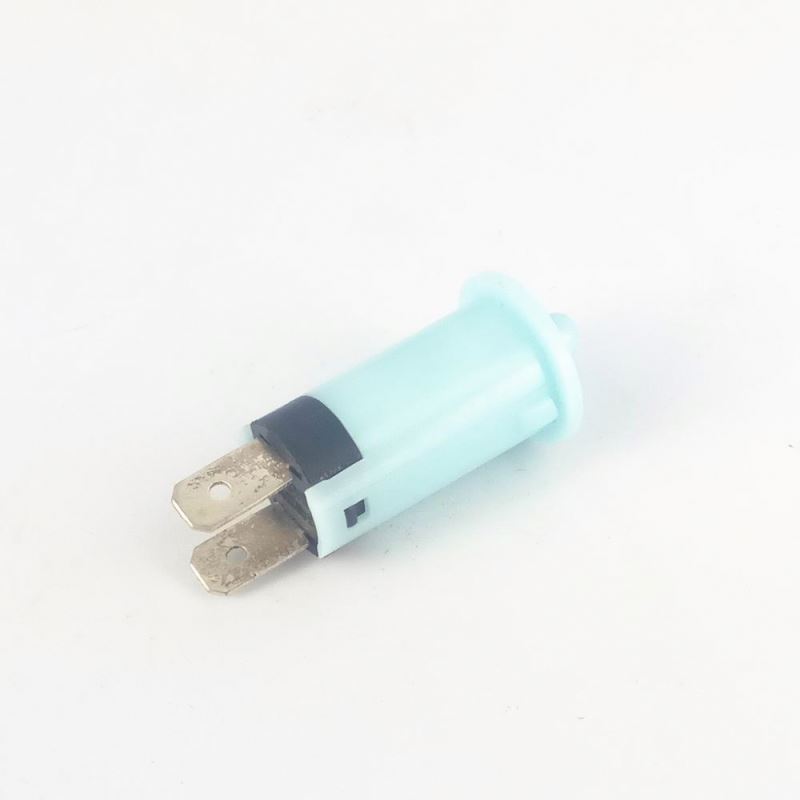

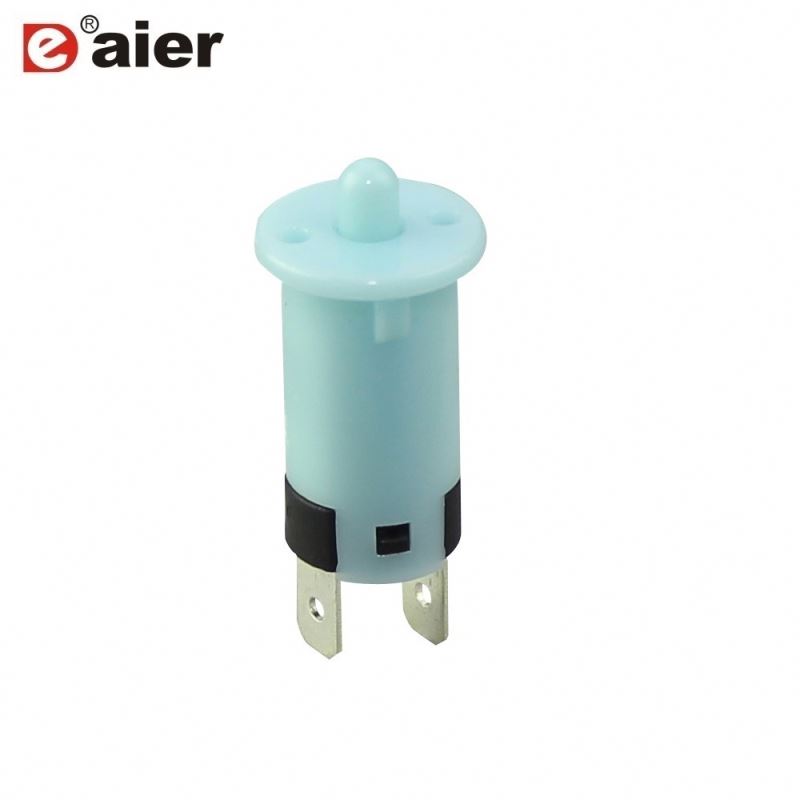

11.7mm 2Pin NO Momentary Door Switch For Refrigerator
Click on the image to view the original image
Product： views：211.7mm 2Pin NO Momentary Door Switch For Refrigerator
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
PBS-25B
Protection Level:
IP40
Max. Current:
1A
Max. Voltage:
250VAC
Item number:
PBS-25B
Function:
Momentary
Body Color:
Blue
Contact Method:
NO
Insulation Resistance:
DC 500V100MΩ Min
Contact Resistance:
50mΩ Max
Dielectric Strength:
1500VAC for 1 Min
Electric Life:
10,000 cycles Min
Operation Temperature:
-25°C~+55°C
IP Class:
IP40

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X13X6 cm
Gross weight per batch:
1.0 kg
Package Type:
11.7mm 2Pin NO Momentary Door Switch For Refrigeratoris 100pcs/bag.
Lead Time:
Quantity(Piece)1 - 10000>10000
Est. Time(days)7To be negotiated
Product Description

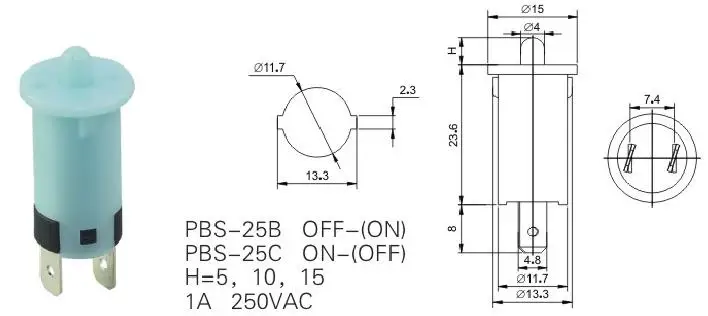

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name
11.7mm 2Pin NO Momentary Door Switch For Refrigerator
Rating
1A 250VACDoor Switch For Refrigerator
IP Class
IP40
Function
Momentary
Button Color
Blue, Grey,Black
Contact Resistance
50 mΩ max
Insulation Resistance
≥100MΩ
Dielectric Strength
1500V AC for 1 min
Product Show

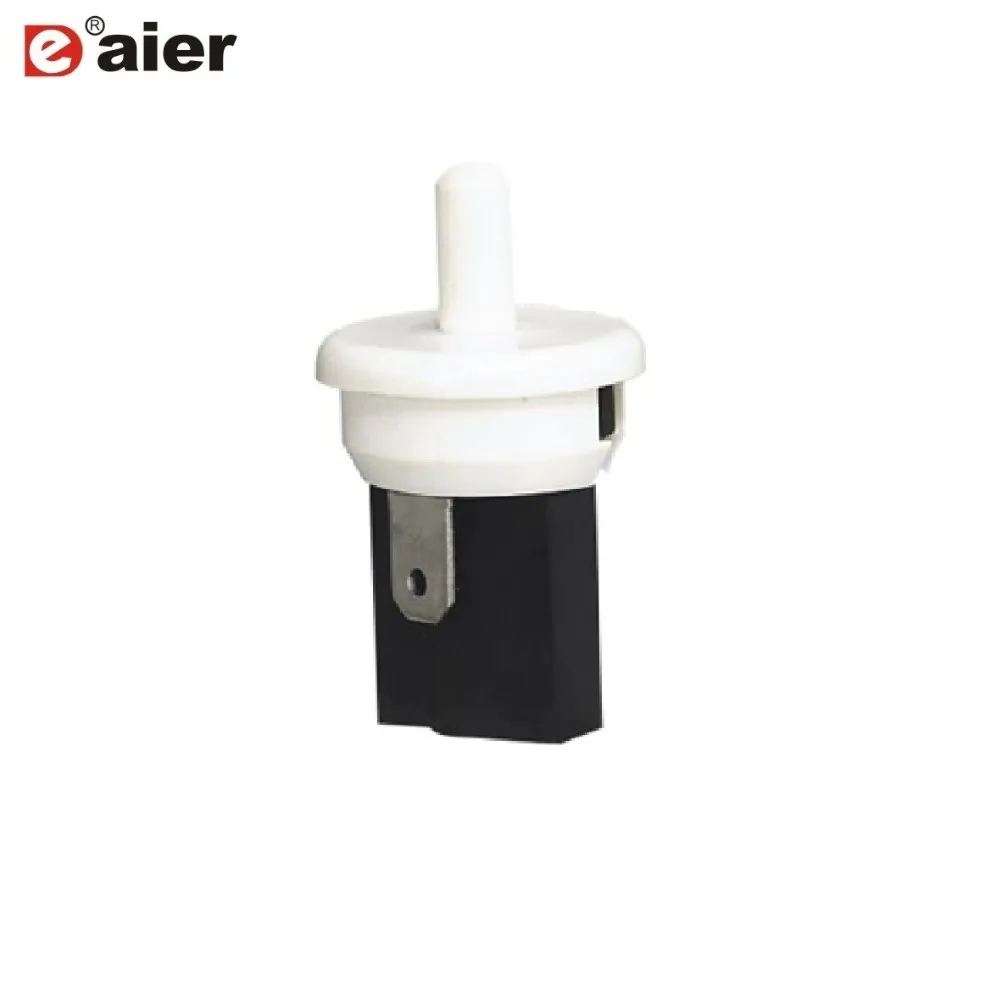

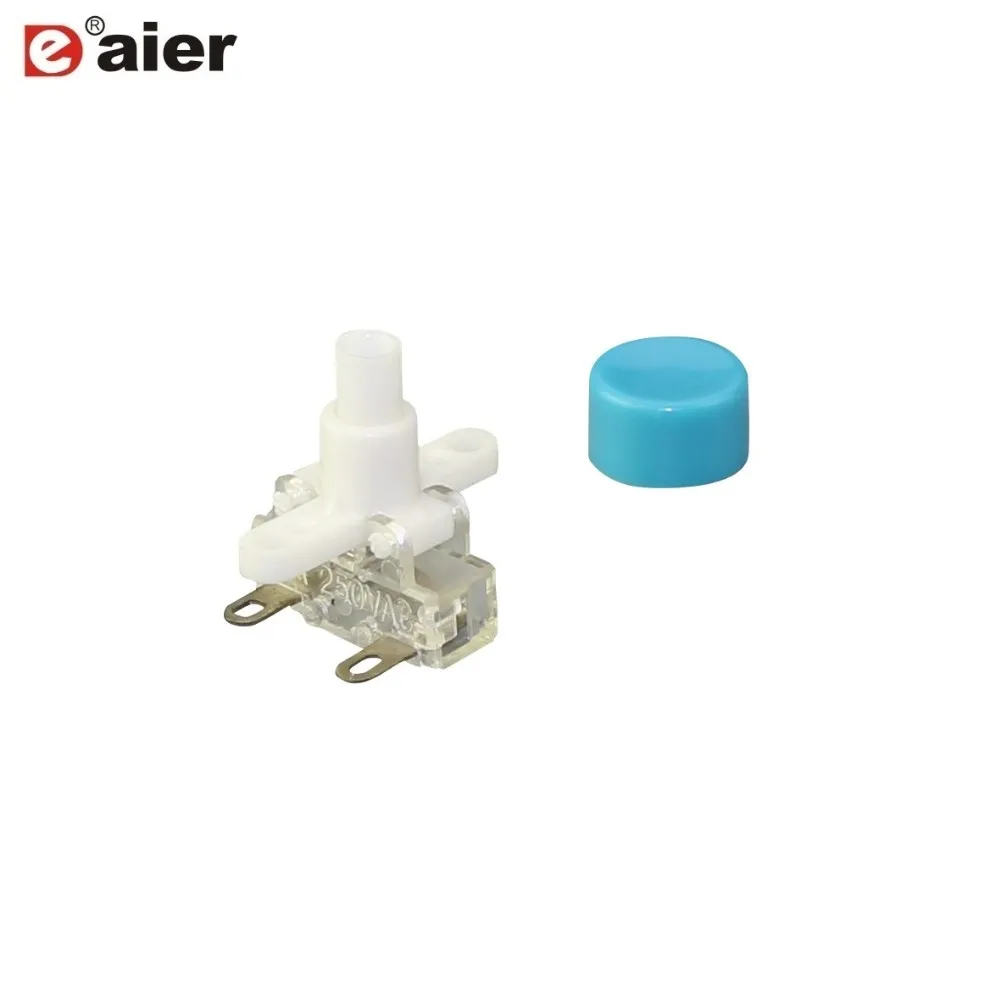

Related Roducts

                     PBS-35C

                  PBS-35B

                        PBS-19

                        PBS-35B


                         LXW20


                        PBS-29
