Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-24-302SP
- Protection Level:
- IP40
- Max. Current:
- 2A
- Max. Voltage:
- 250VAC
- Item number:

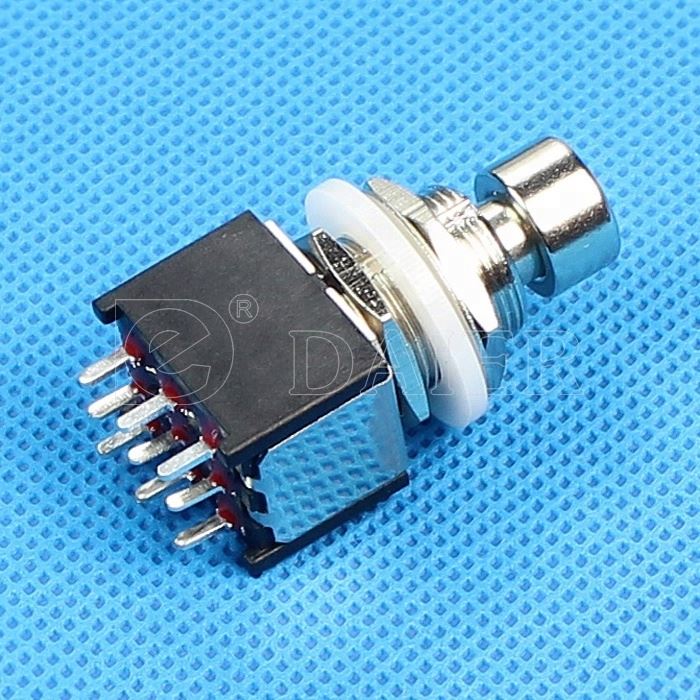

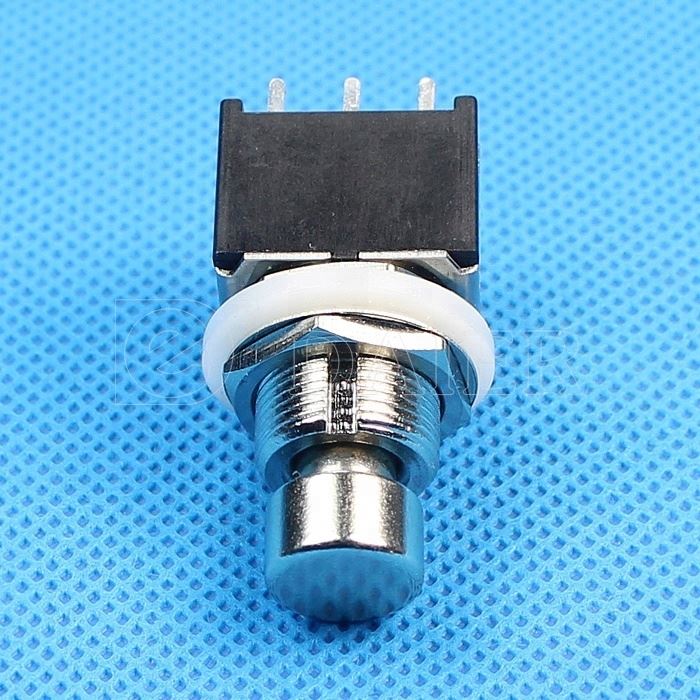

- 3PDT Footswitch
- Function:
- Latching
- Body Color:
- Black
- Button Color:
- Metal
- Insulation Resistance:
- 100MΩ Min
- Contact Resistance:
- 100mΩ Max
- Dielectric Strength:
- 1500VAC for 5S
- Electric Life:
- 50,000 cycles
- Operation Force:
- 0.25N Max
- Operation Temperature:
- -25°C~+85°C
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 9PIN PCB Type ON-ON Latching 3PDT Footswitch is 50pcs/box.
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 7 To be negotiated
