Home > Products > 3PIN ON-ON PCB Terminal 240V Pedal Foot Switch

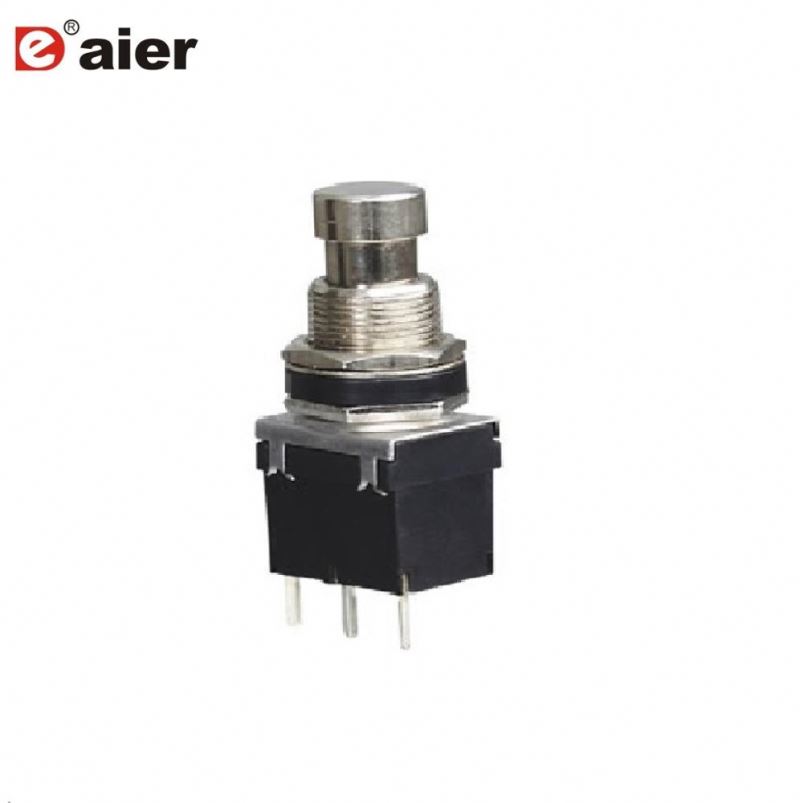

3PIN ON-ON PCB Terminal 240V Pedal Foot Switch

Click on the image to view the original image

Product：	views：33PIN ON-ON PCB Terminal 240V Pedal Foot Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-24-102P

Protection Level:: IP40

Max. Current:: 2A

Max. Voltage:: 250VAC

Item number:: 240V Pedal Foot Switch

Function:: Latching

Body Color:: Black

Button Color:: Metal

Insulation Resistance:: DC 500V100MΩ Min

Contact Resistance:: 20mΩ Max

Dielectric Strength:: 1000VAC for 1 Min

Electric Life:: 10,000 cycles

Operation Temperature:: -25°C~+85°C

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X10 cm

Gross weight per batch:: 1.5 kg

Package Type:: 3PIN ON-ON PCB Terminal 240V Pedal Foot Switch is 50pcs/box.

Lead Time:

Quantity(Piece)	1 - 50000	>50000
Est. Time(days)	7	To be negotiated

Product Description

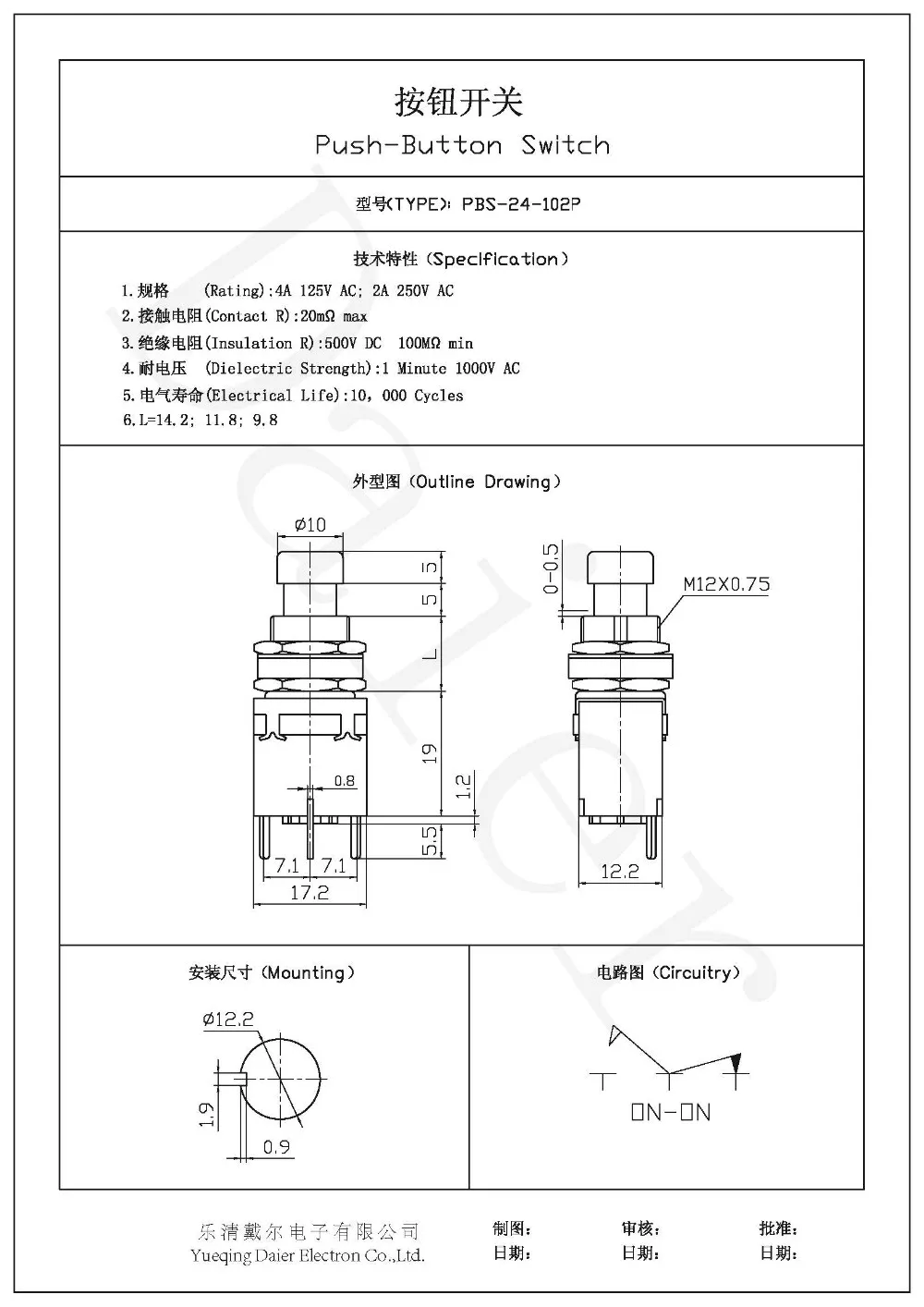

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	3PIN ON-ON PCB Terminal 240V Pedal Foot Switch
Rating	2A 250VAC
IP Class	IP40
Function	Latching
Button Color	Metal
Contact Resistance	20 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	1000V AC for 1 min

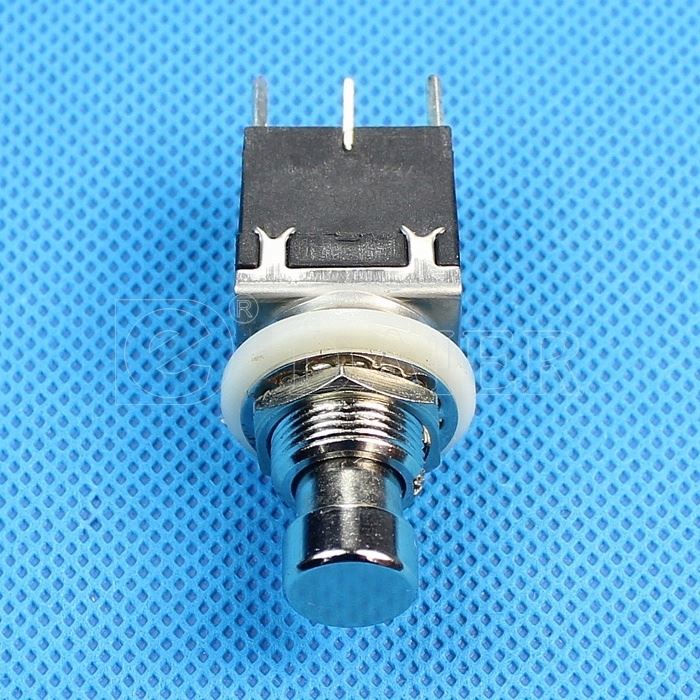

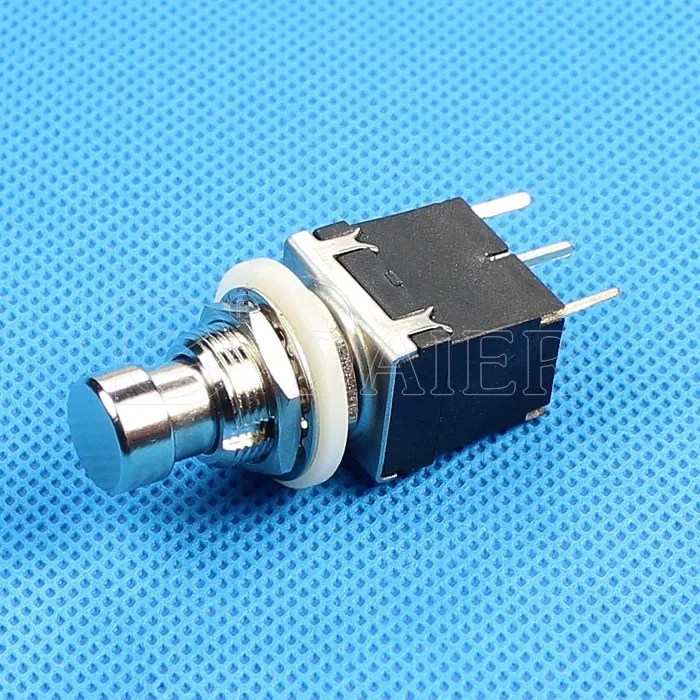

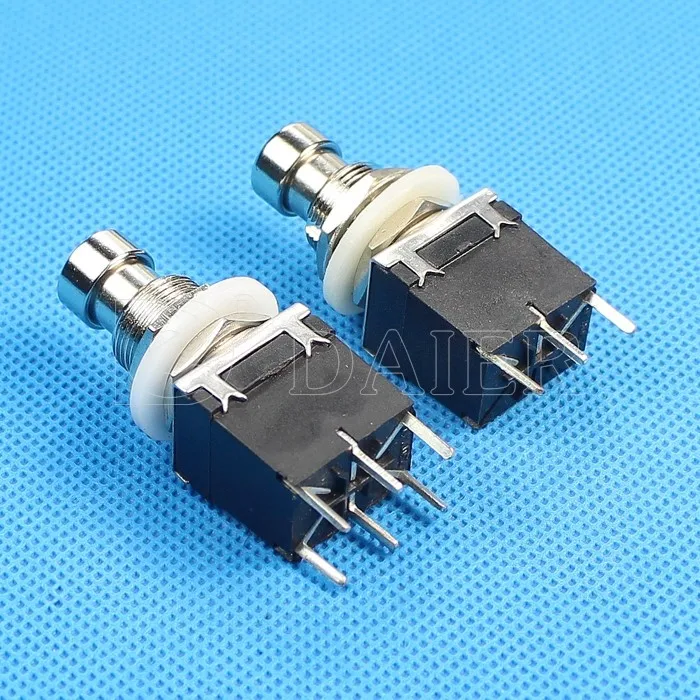

Product Show
