Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- A12-11SF-N
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:

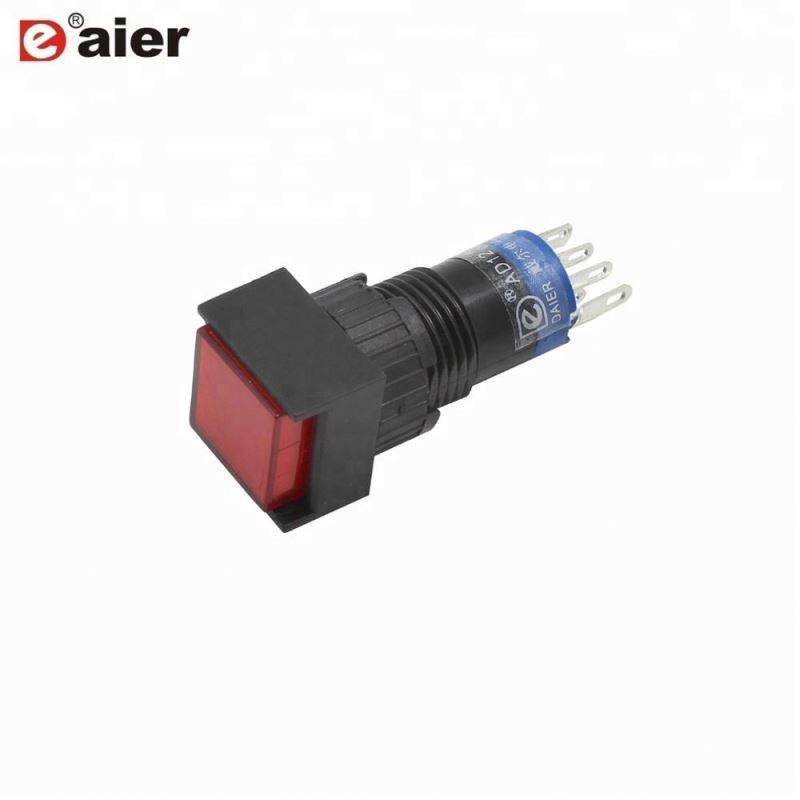

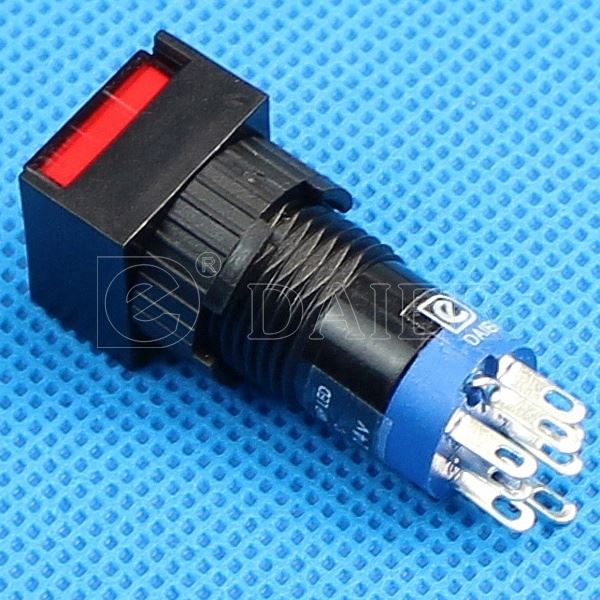

- Led Illuminated 12MM Push Button Switch
- Function:
- Momentary
- ContactConfiguration:
- SPDT
- Body Color:
- Black
- Button Color:
- Red, Green,Yellow, Blue, White
- Insulation Resistance:
- DC 500V100MΩ Min
- Dielectric Strength:
- 2000VAC for 1 Min
- Electric Life:
- 10,000 cycles Min
- Operation Temperature:
- -25°C~+55°C
- IP Class:
- IP40
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:
- Square button Momentary ON (ON) Led Illuminated 12MM Push Button Switch is 40pcs/box.
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 7 To be negotiated
