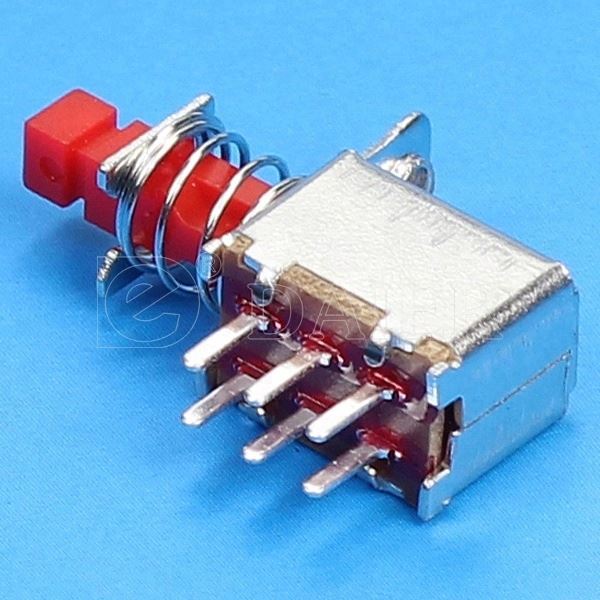

DPDT ON ON Latching PCB Terminal Smart Push Switch 12V

Click on the image to view the original image

Product：	views：2DPDT ON ON Latching PCB Terminal Smart Push Switch 12V
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PS-22F05L

Protection Level:: IP40

Max. Current:: 0.5A

Max. Voltage:: 50VDC

Item number:: Smart Push Switch 12V

Function:: Latching

Body Color:: Metal

Button Color:: Red

Insulation Resistance:: 100MΩ Min

Contact Resistance:: 50mΩ Max

Dielectric Strength:: 250VAC for 1 Min

Electric Life:: 10,000 cycles Min

Operation Temperature:: -25°C~+70°C

Switch Function:: DPDT

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X10 cm

Gross weight per batch:: 0.7 kg

Package Type:: DPDT ON ON Latching PCB Terminal Smart Push Switch 12V is 200pcs/bag.

Lead Time:

Quantity(Piece)	1 - 200000	>200000
Est. Time(days)	7	To be negotiated

Product Description

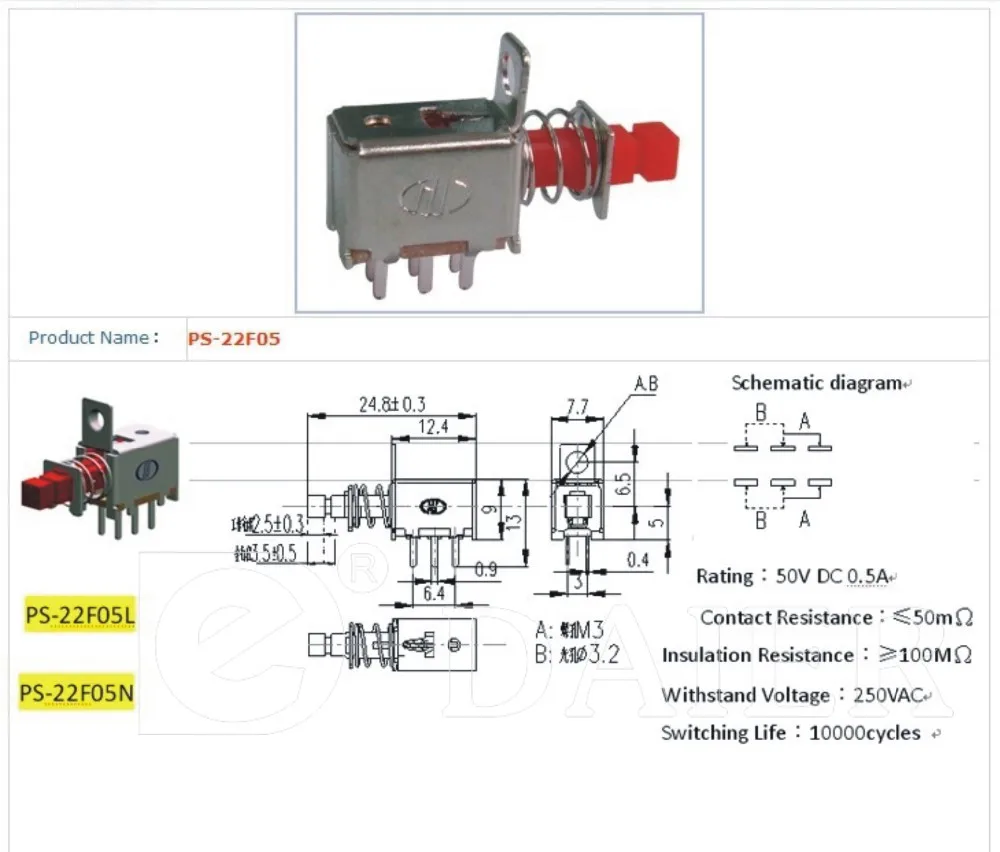

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	DPDT ON ONLatching PCB Terminal Smart Push Switch 12V
Rating	0.5A 50VDC
IP Class	IP40
Function	Latching
Button Color	Red
Contact Resistance	50 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	250V AC for 1 min

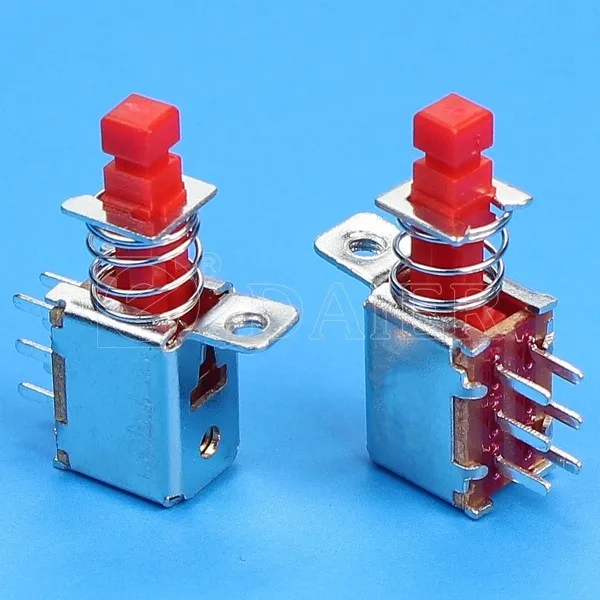

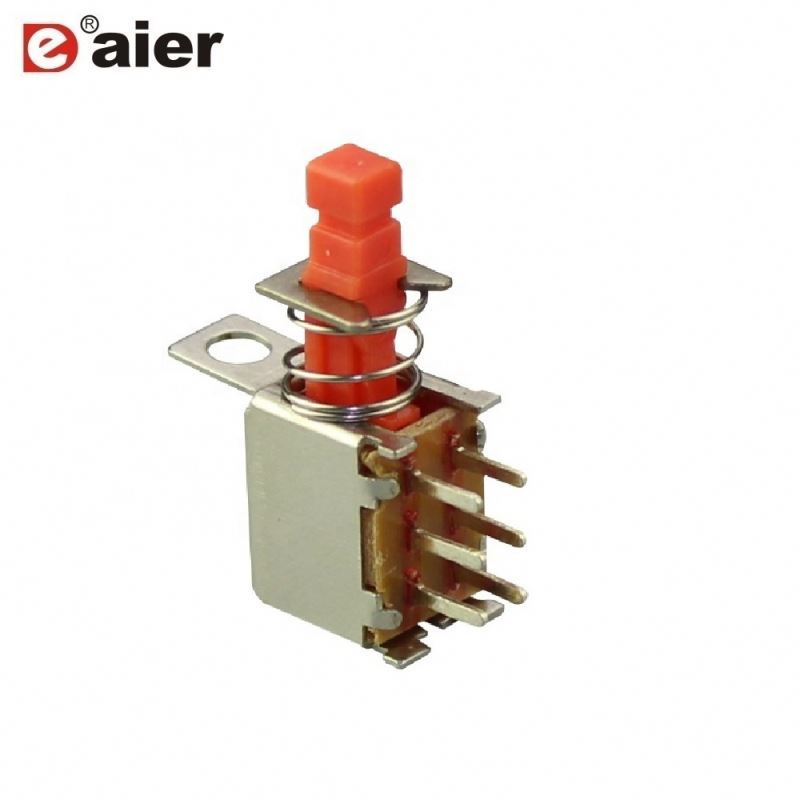

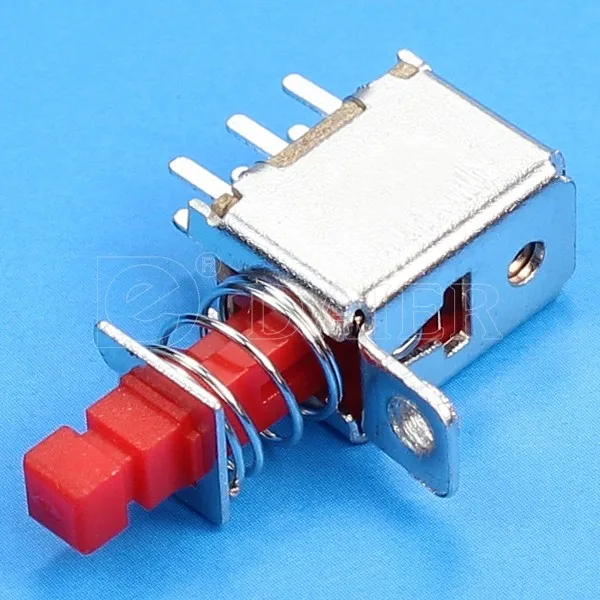

Product Show
