Home > Products > ON ON 6PIN Electronic PCB Mount Push Button Switch

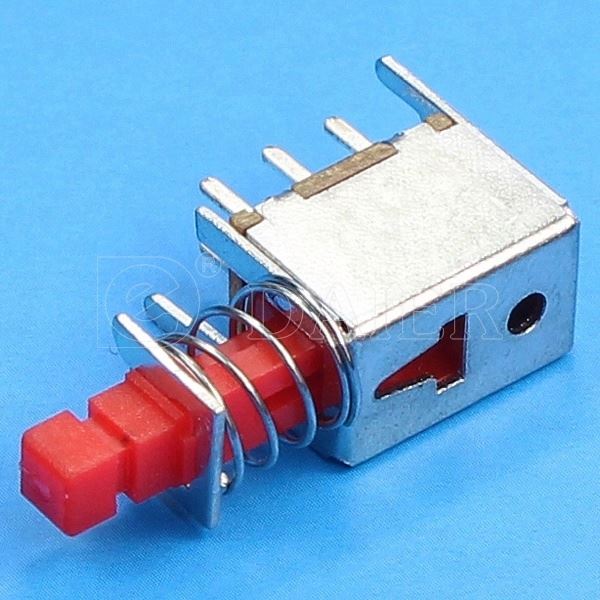

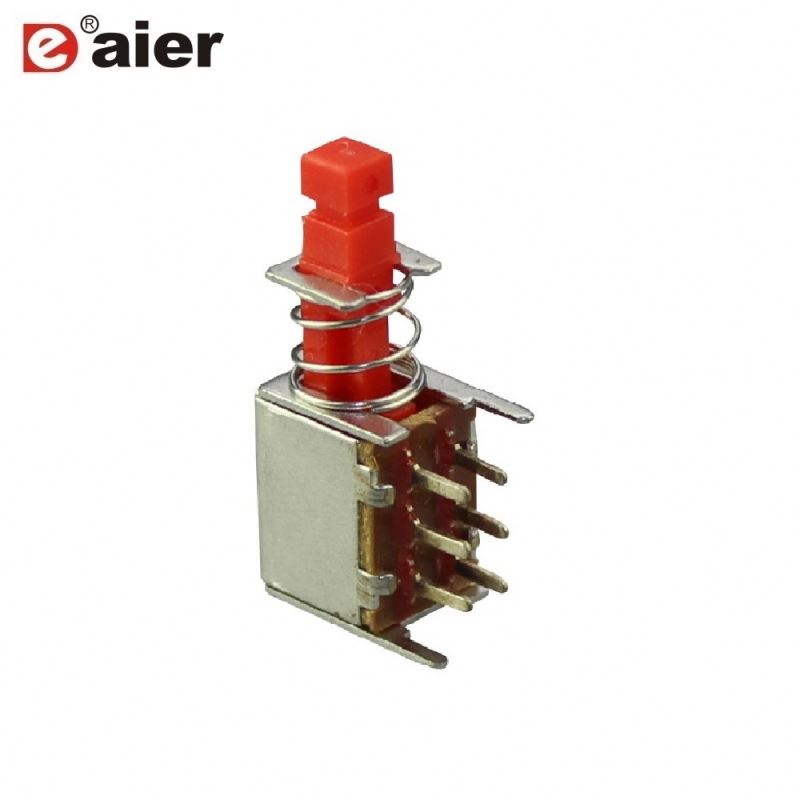

ON ON 6PIN Electronic PCB Mount Push Button Switch
Click on the image to view the original image
Product： views：2ON ON 6PIN Electronic PCB Mount Push Button Switch
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
PS-22F03L
Protection Level:
IP40
Max. Current:
0.5A
Max. Voltage:
50VDC
Item number:
Electronic PCB Mount Push Button Switch
Function:
Latching
Body Color:
Metal
Button Color:
Red
Insulation Resistance:
100MΩ Min
Contact Resistance:
50mΩ Max
Dielectric Strength:
250VAC for 1 Min
Electric Life:
10,000 cycles Min
Operation Temperature:
-25°C~+70°C
Switch Function:
DPDT

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X20X10 cm
Gross weight per batch:
0.7 kg
Package Type:
ON ON 6PIN Electronic PCB Mount Push Button Switch is 200pcs/bag.
Lead Time:
Quantity(Piece)1 - 200000>200000
Est. Time(days)7To be negotiated
Product Description

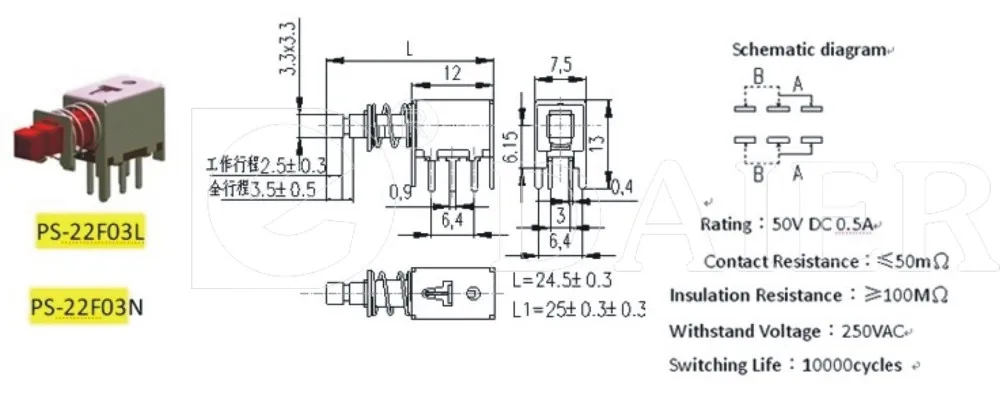

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name
ON ON 6PIN Electronic PCB Mount Push Button Switch
Rating
0.5A 50VDC
IP Class
IP40
Function
Latching
Button Color
Red
Contact Resistance
50 mΩ max
Insulation Resistance
≥100MΩ
Dielectric Strength
250V AC for 1 min

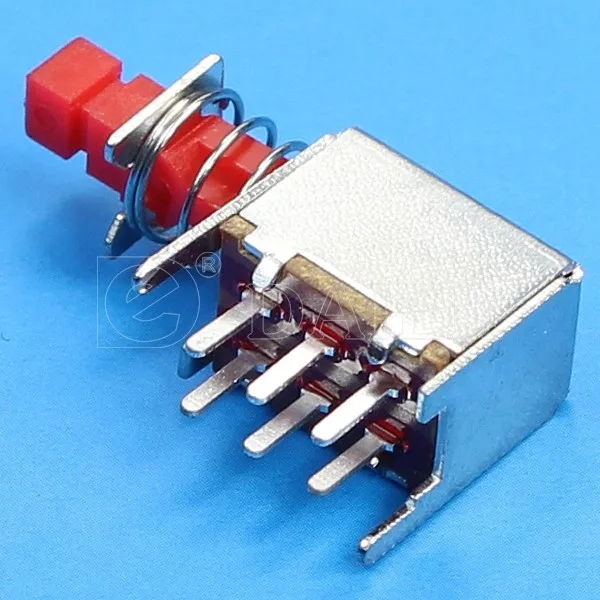

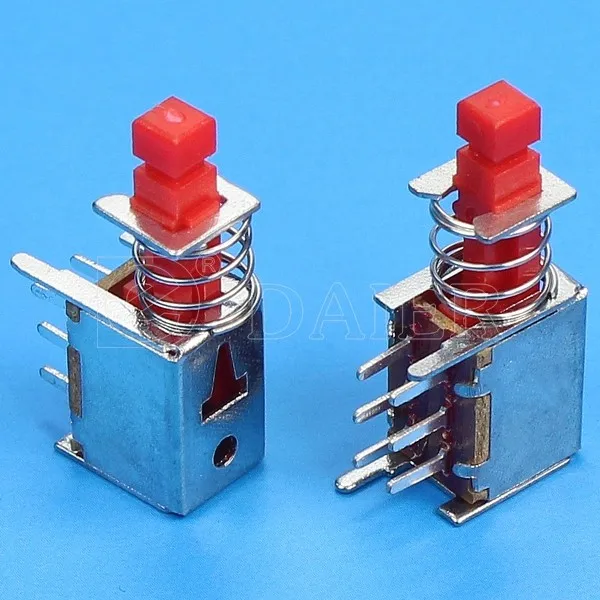

Product Show
