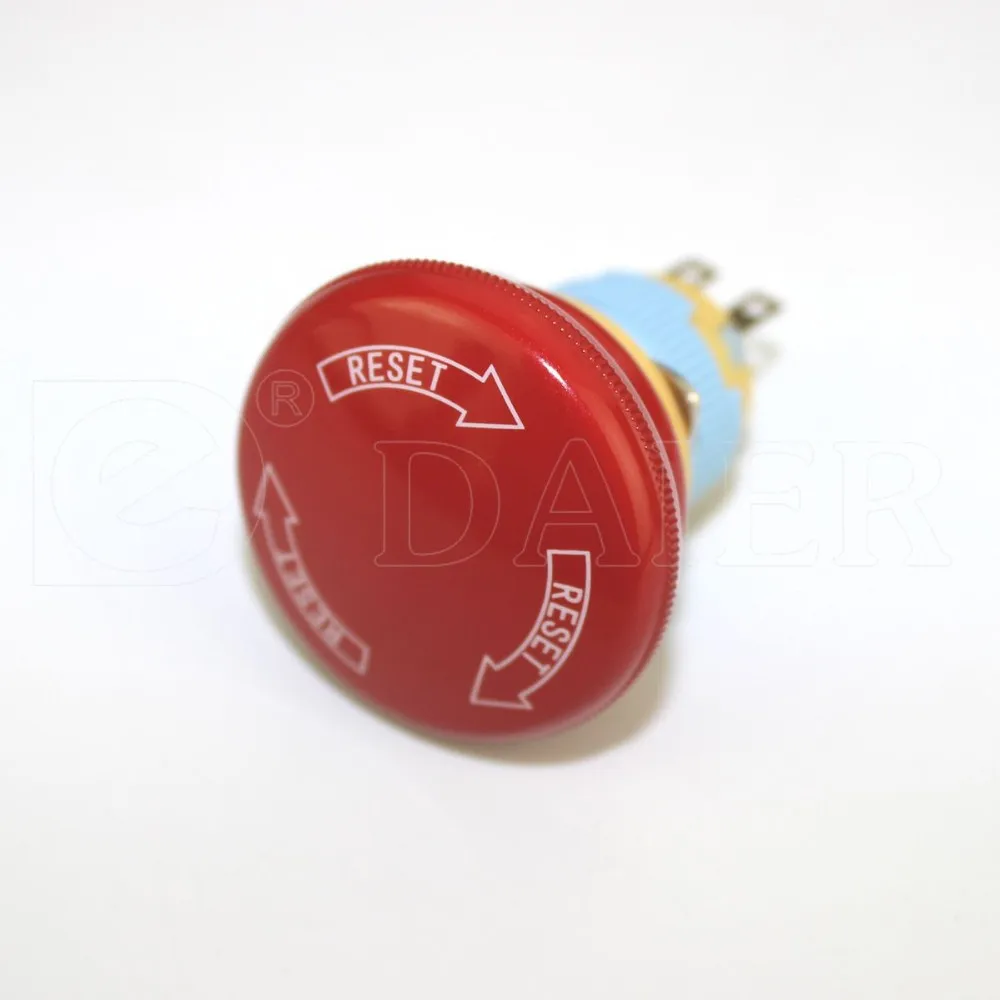

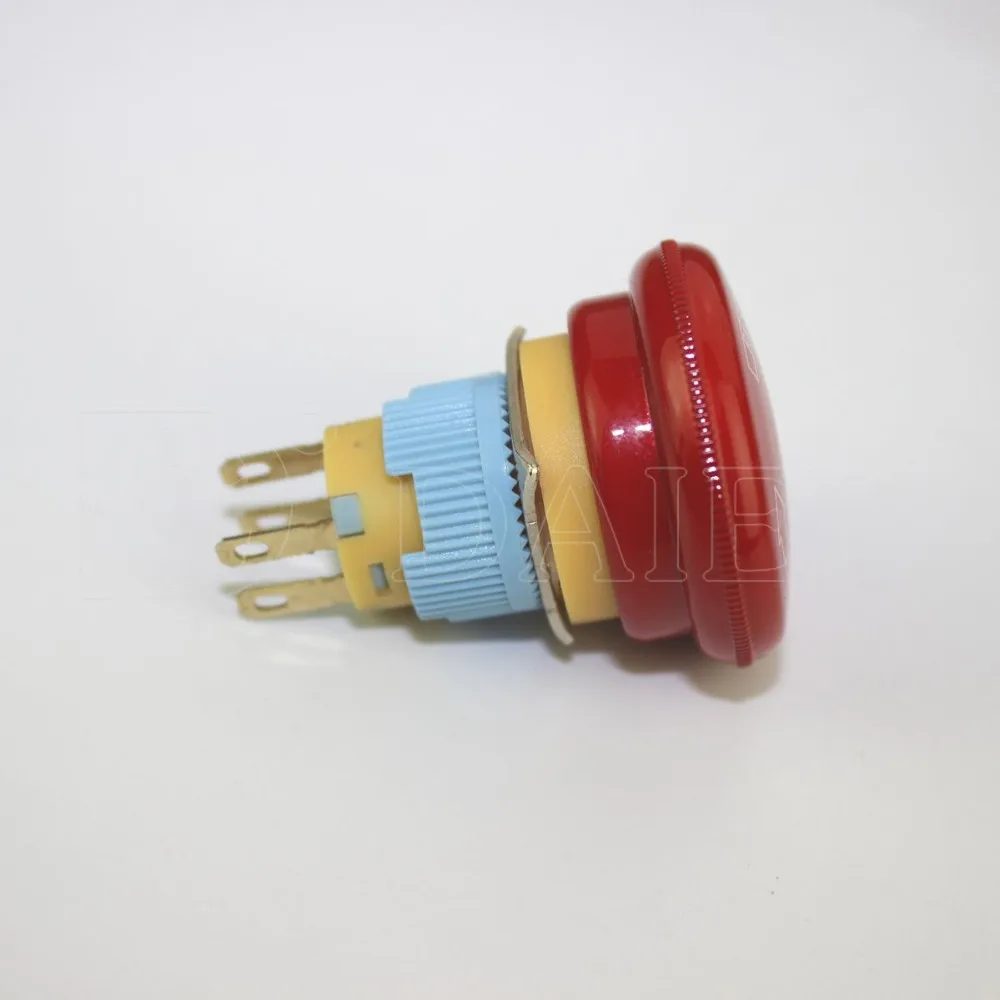

Ball Button SPST 16MM Turn Emergency Push Button Switch

Click on the image to view the original image

Product：	views：2Ball Button SPST 16MM Turn Emergency Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: A16-10SR-B

Protection Level:: IP40

Max. Current:: 3A

Max. Voltage:: 250VAC

Item number:: Turn Emergency Push Button Switch

ContactConfiguration:: SPST

Body Color:: Yellow

Button Color:: Red

Button Shape:: Ball

Insulation Resistance:: DC 500V100MΩ Min

Dielectric Strength:: 2000VAC for 1 Min

Electric Life:: 10,000 cycles Min

Operation Temperature:: -25°C~+55°C

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X10 cm

Gross weight per batch:: 0.5 kg

Package Type:: Ball Button SPST 16MM Turn Emergency Push Button Switch is 40pcs/box.

Lead Time:

Quantity(Piece)	1 - 400	>400
Est. Time(days)	7	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	Ball Button SPST 16MM Turn Emergency Push Button Switch
Rating	3A 250VAC
Mounting Size	16mm
IP Class	IP40
Button Color	Red
Insulation Resistance	≥100MΩ
Dielectric Strength	2000V AC for 1 min
