Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KZJ2X2-1J-A
- Protection Level:
- IP40
- Max. Current:
- 0.3A
- Max. Voltage:
- 30VDC
- Item number:

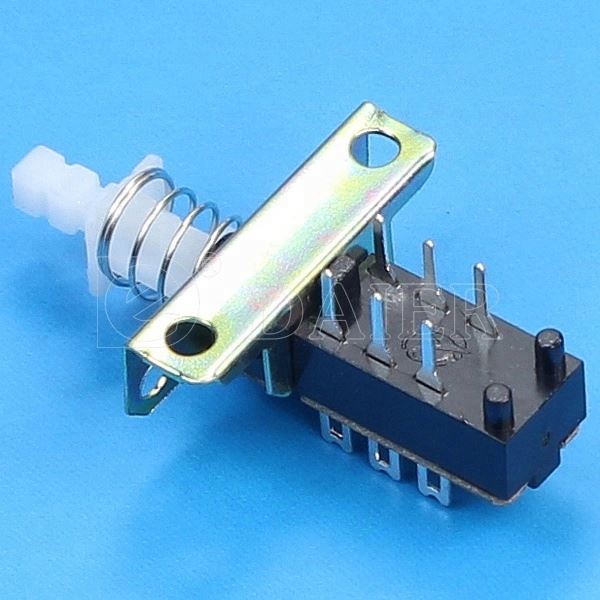

- Soldering Type 12 Volt Pushbutton Switches
- Function:
- Latching
- Switch Function:
- ON-ON
- Body Color:
- Black
- Button Color:
- White
- Insulation Resistance:
- 100MΩ Min
- Contact Resistance:
- 40mΩ Max
- Dielectric Strength:
- 500VAC for 1 Min
- Electric Life:
- 10,000 cycles Min
- Operation Temperature:
- -20°C~+70°C
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- ON ON Latching Soldering Type 12 Volt Pushbutton Switches is 200pcs/bag.
- Lead Time:
Quantity(Piece) 1 - 200000 >200000 Est. Time(days) 7 To be negotiated
