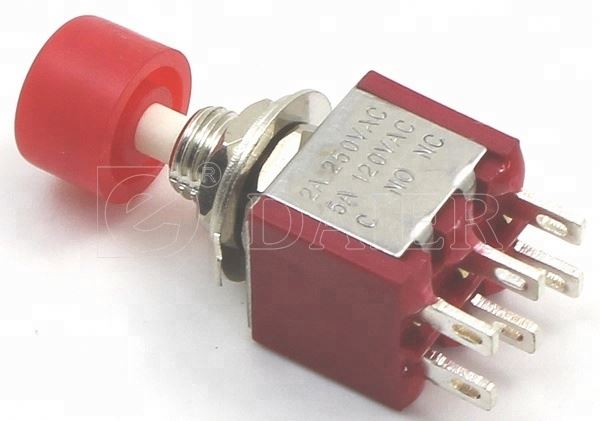

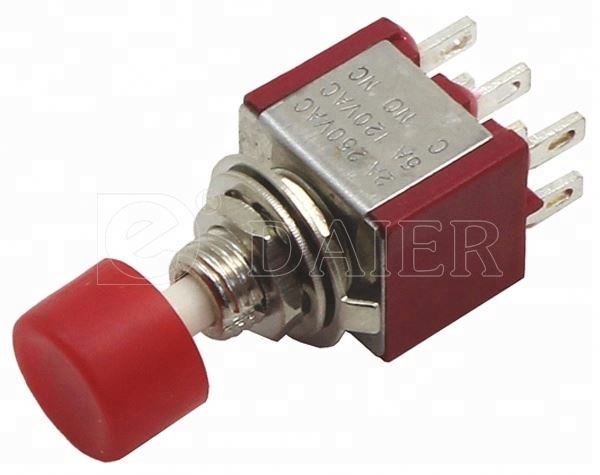

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- DS-622
- Protection Level:
- IP40
- Max. Current:
- 2A
- Max. Voltage:
- 250VAC
- Item number:
- Momentary Double Pole Push Button Switch
- Function:
- Latching
- Body Color:
- Red
- Button Color:
- Red
- Insulation Resistance:
- DC 500V100MΩ Min
- Contact Resistance:
- 50mΩ Max
- Dielectric Strength:
- 1500VAC for 1 Min
- Electric Life:
- 10,000 cycles Min
- Operation Temperature:
- -25°C~+85°C
- IP Class:
- IP40
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.3 kg
- Package Type:
- 6Pin Soldering type ON-ON Momentary Double Pole Push Button Switch is 50pcs/bag.
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 7 To be negotiated
