Home > Products > 7X7MM ON ON Mini Latching Push Button Switch 6 PIN PCB

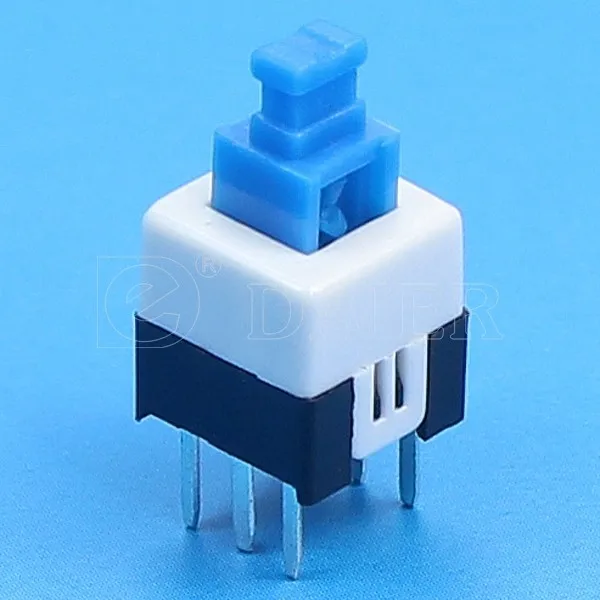

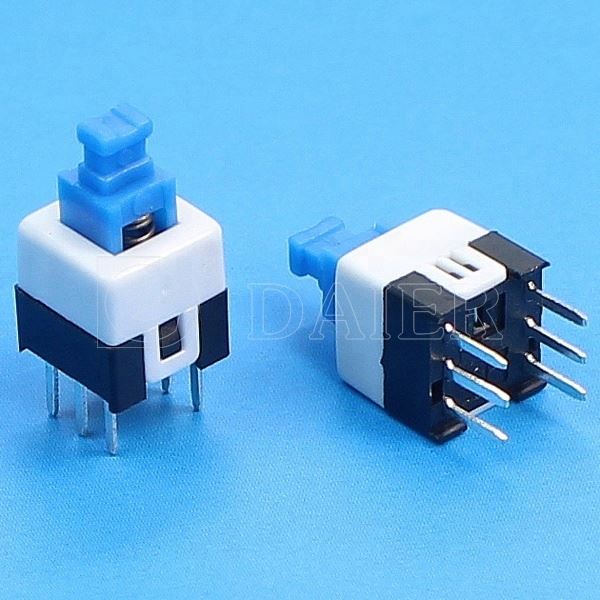

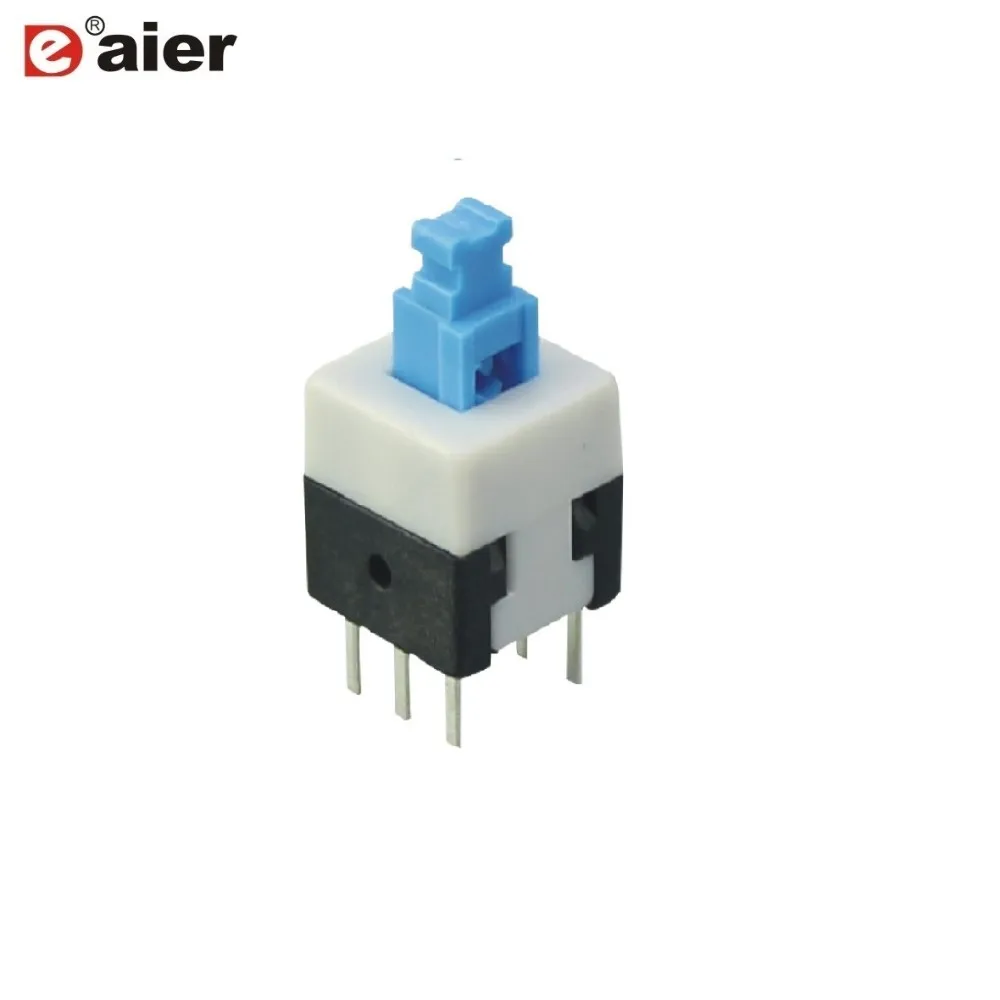

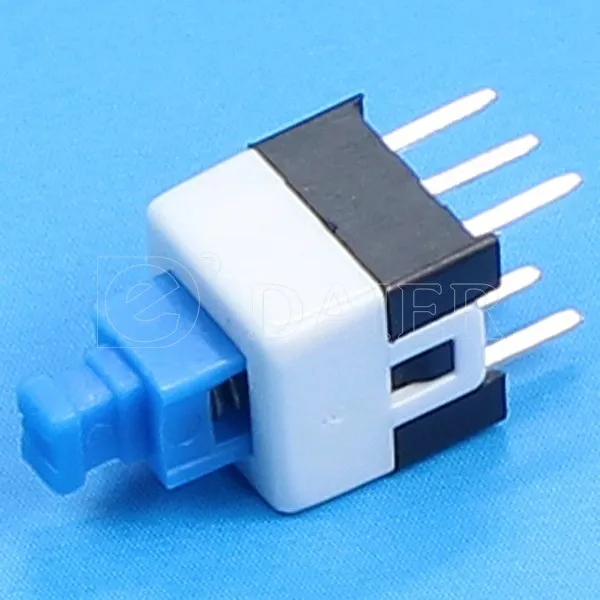

7X7MM ON ON Mini Latching Push Button Switch 6 PIN PCB

Click on the image to view the original image

Product：	views：27X7MM ON ON Mini Latching Push Button Switch 6 PIN PCB
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: KFC7X7-A

Protection Level:: IP40

Max. Current:: 0.1A

Max. Voltage:: 30VDC

Item number:: Mini Latching Push Button Switch 6 PIN PCB

Function:: Latching

Body Color:: Black and White

Button Color:: Blue

Insulation Resistance:: 100MΩ Min

Contact Resistance:: 30mΩ Max

Dielectric Strength:: 250VAC for 1 Min

Electric Life:: 10,000 cycles Min

Operation Temperature:: -25°C~+70°C

Operating Force:: 250±50gf

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 0.7 kg

Package Type:: 7X7MM ON ON Mini Latching Push Button Switch 6 PIN PCB is 1000pcs/bag.

Lead Time:

Quantity(Piece)	1 - 1000000	>1000000
Est. Time(days)	7	To be negotiated

Product Description

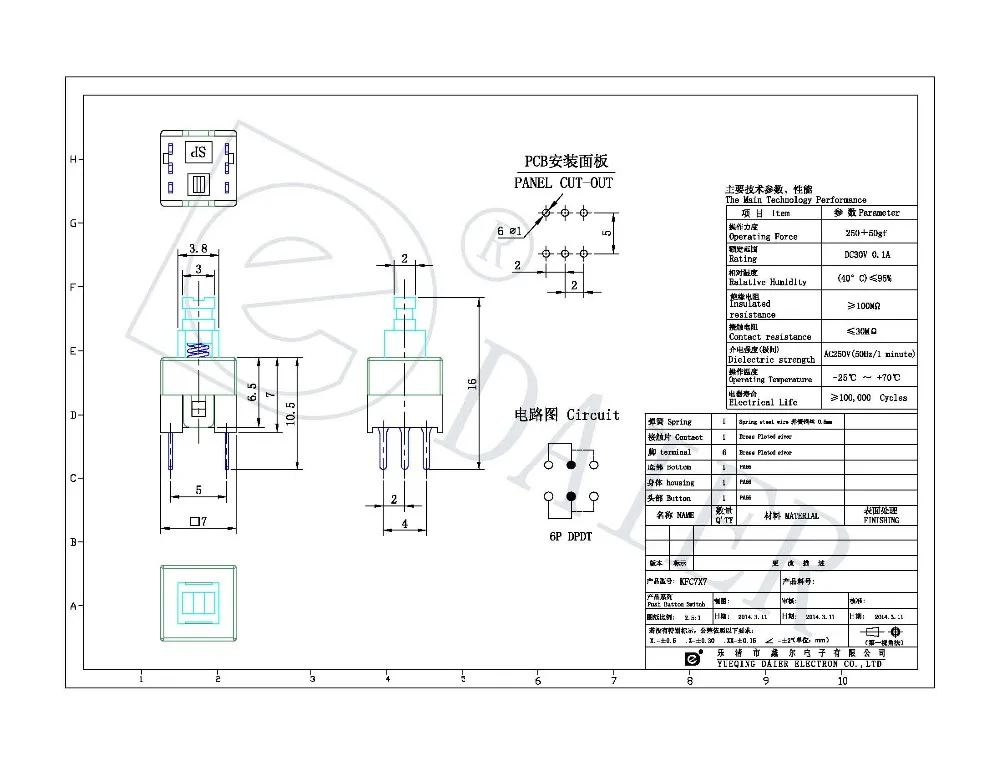

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	7X7MM ON ON Mini Latching Push Button Switch 6 PIN PCB
Rating	0.1A 30VDC
IP Class	IP40
Function	Latching
Button Color	Blue
Contact Resistance	30 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	250V AC for 1 min

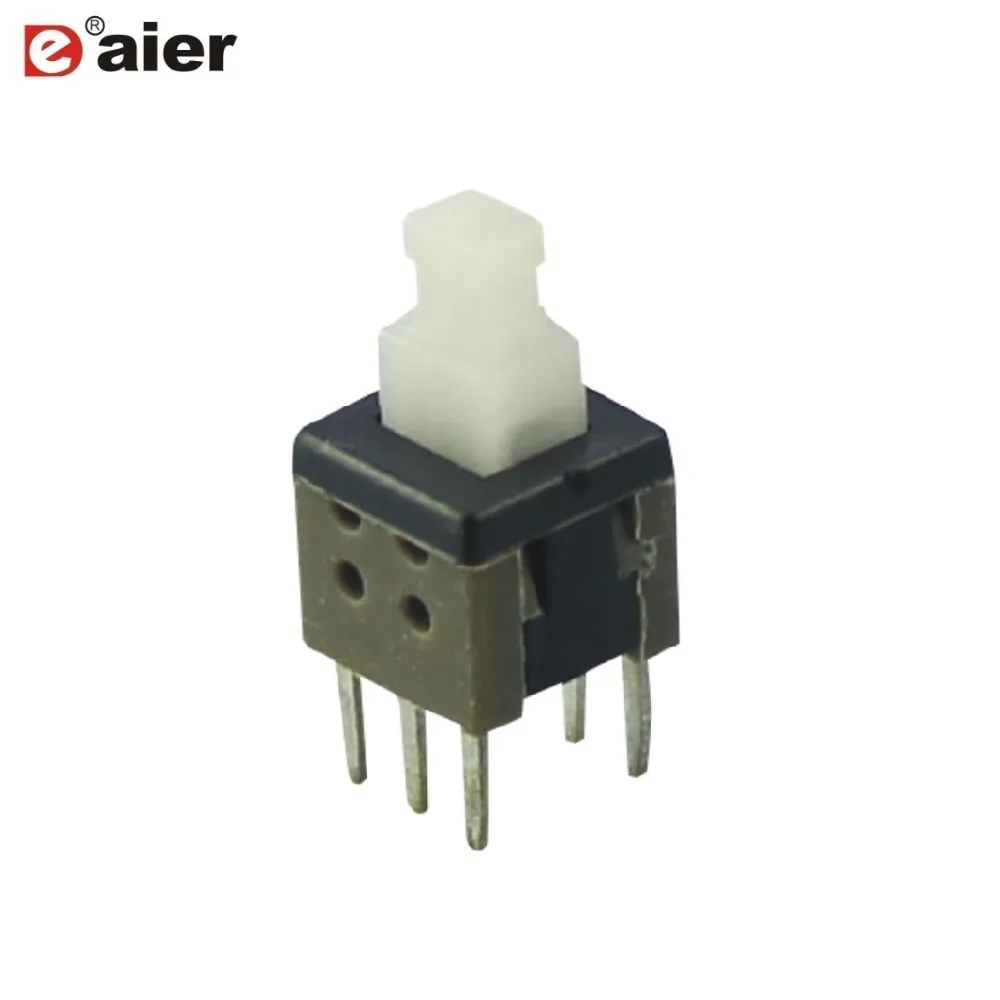

Product Show

Related Roducts

KFC6X6

KFC8X8

KFC8.5X8.5

PBS8.5X.85

PS-12E01

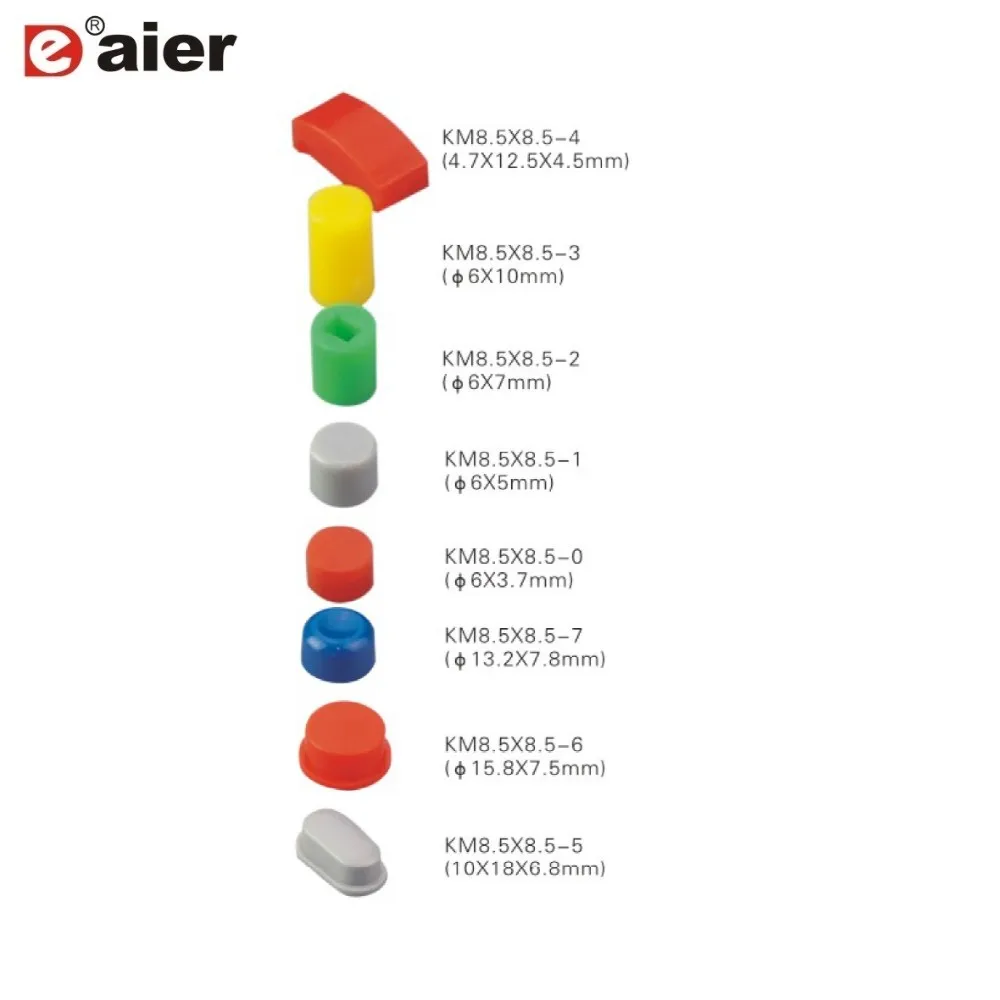

KM Switch Cap
