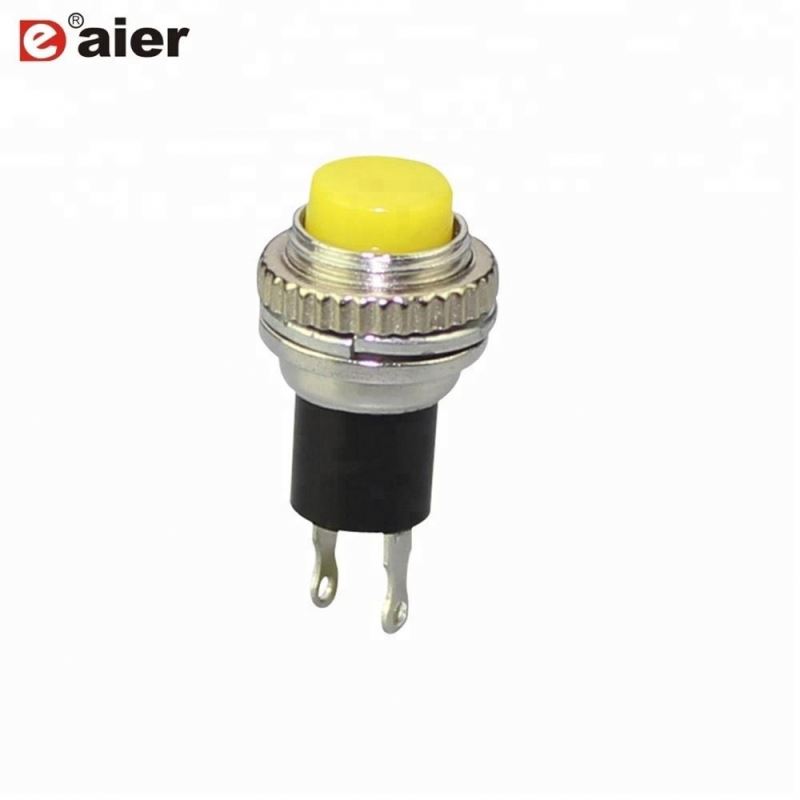

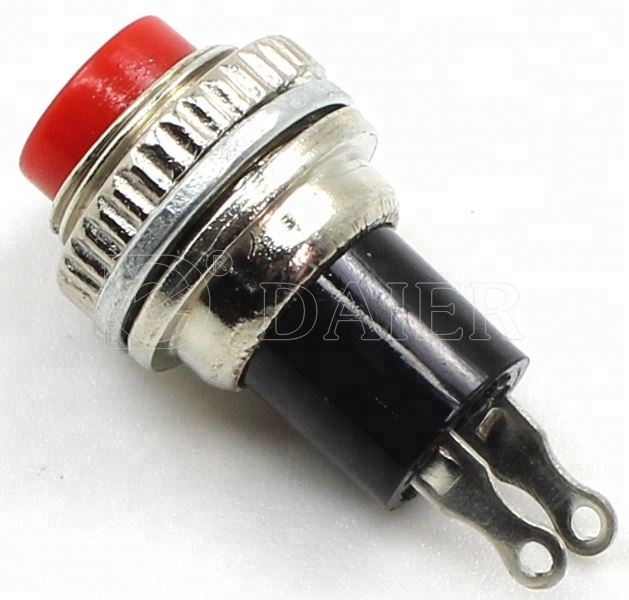

Soldering Type NO NC Momentary 10MM Momentary Push Button Switch

Click on the image to view the original image

Product：	views：4Soldering Type NO NC Momentary 10MM Momentary Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: DS-314

Protection Level:: IP40

Max. Current:: 0.5A

Max. Voltage:: 250VAC

Item number:: 10MM Momentary Push Button Switch

Function:: Momentary

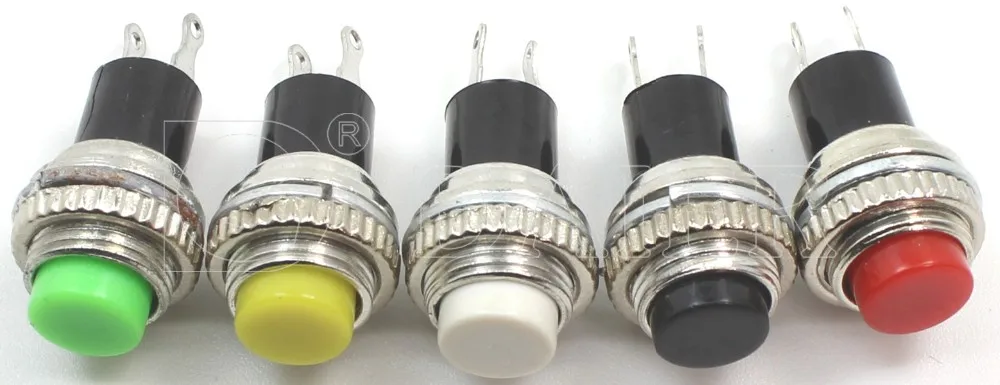

Button color:: Red, Green,Yellow, Blue, Black, White

Insulation Resistance:: DC 500V100MΩ Min

Contact Resistance:: 50mΩ Max

Dielectric Strength:: 1500VAC for 1 Min

Electric life:: 10,000 cycles Min

Operation Temperature:: -25°C~+85°C

IP Class:: IP40

Terminal Type:: Soldering Type

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 0.6 kg

Package Type:: Soldering Type NO NC Momentary 10MM Momentary Push Button Switch is 100pcs/bag.

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	7	To be negotiated

Product Description

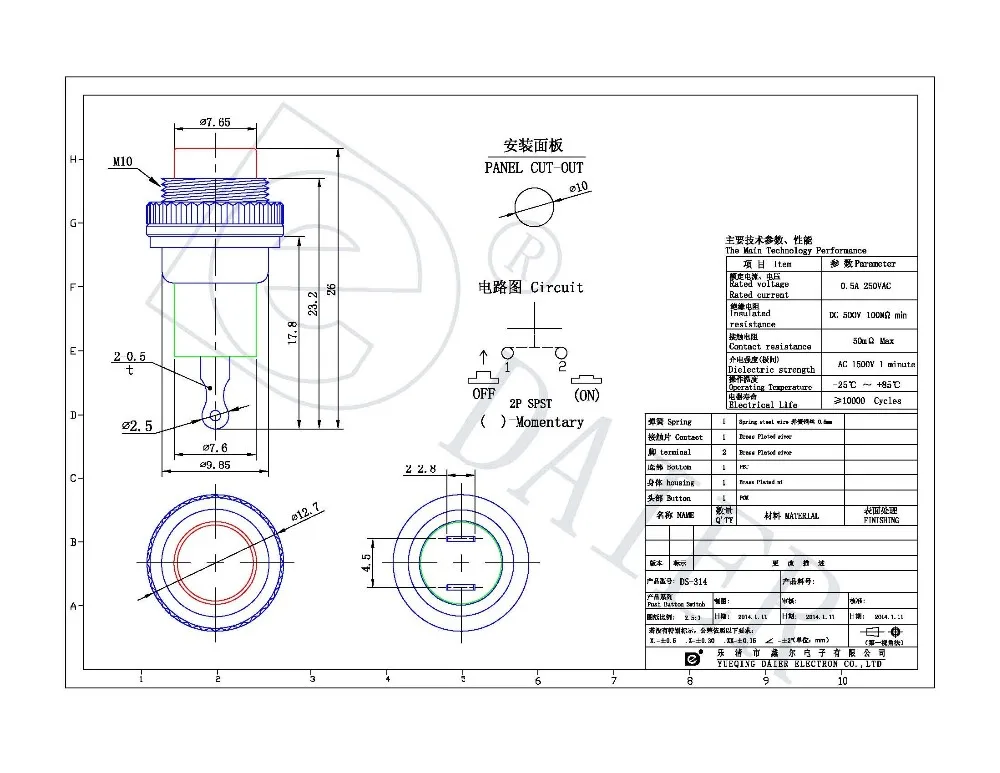

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	Soldering Type NO NC Momentary 10MM Momentary Push Button Switch
Rating	0.5A 250VAC
Mounting Size	10mm
IP Class	IP40
Function	Momentary
Button Color	Red, Green,Yellow, Blue, Black, White
Contact Resistance	50 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	1500V AC for 1 min

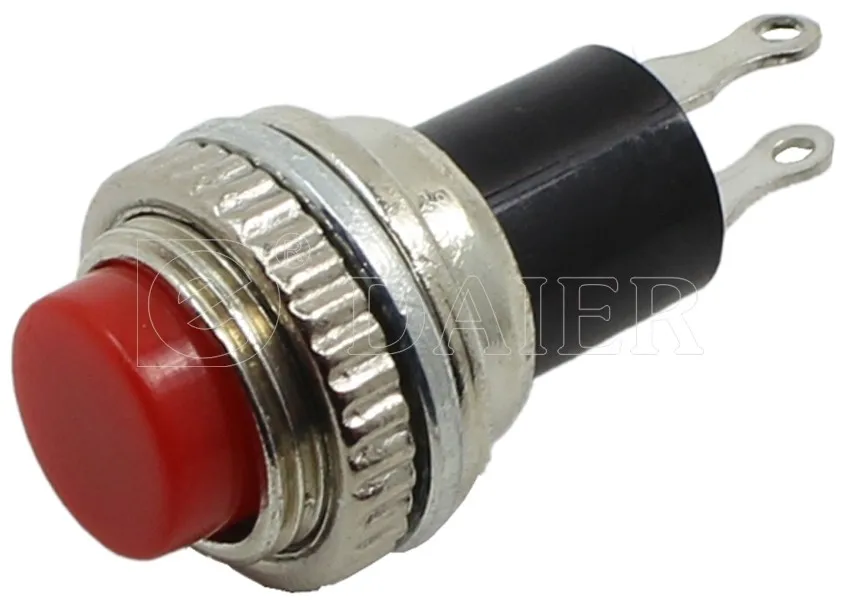

Product Show
